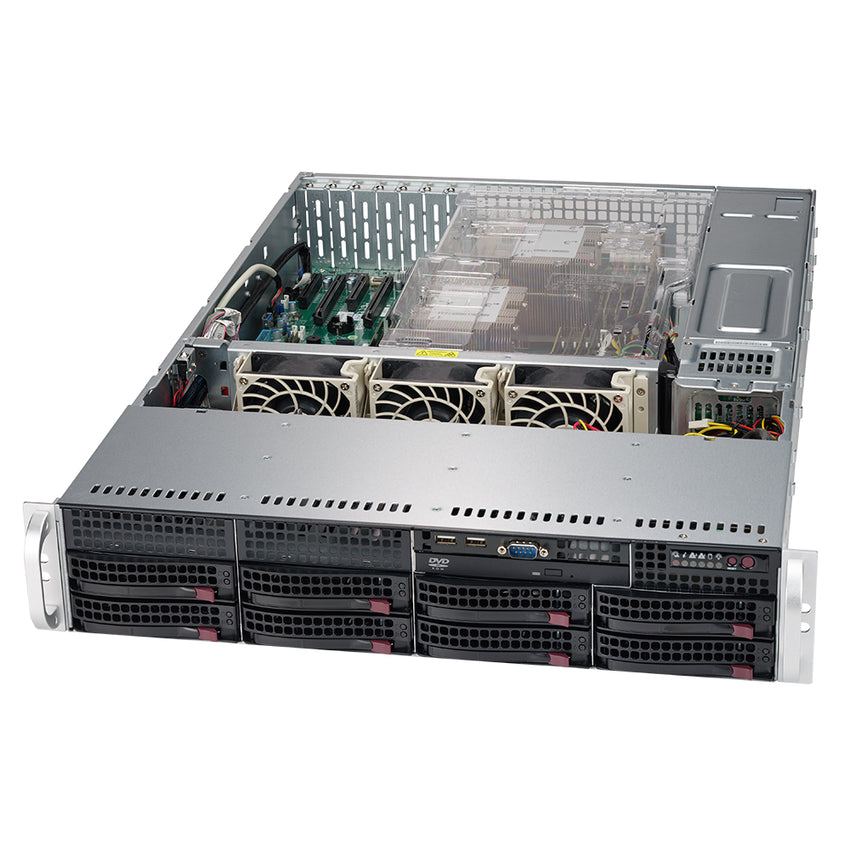

Supermicro SuperServer 6029P-TR Dual Intel Xeon CPU, 2U Rackmount, 8x 3.5" Hot-swap bays, Redundant PSU
Manufacturer	Supermicro
Model Number	SYS-6029P-TR
CPU	Supports 2x Intel Xeon Scalable Processors Socket P, LGA 3647 205W Max TDP
Chipset	Intel C621
Memory	Supports 8x DDR4-2666 ECC RDIMM Slots per CPU (16 Total) 6-Channel, 1.2V Supports up to 512GB ECC RDIMM Supports up to 2TB ECC LRDIMM 3DS
Video	Aspeed AST2500 BMC
Storage Technology	SATA3 6.0Gb/s RAID 0, 1, 5, 10
Connectivity	2x Intel X722 GbE 1x Realtek RTL8211E-VB-CG dedicated IPMI
Expansion	4x PCI-E 3.0 x16 slots (Low Profile) 2x PCI-E 3.0 x8 slots (Low Profile)

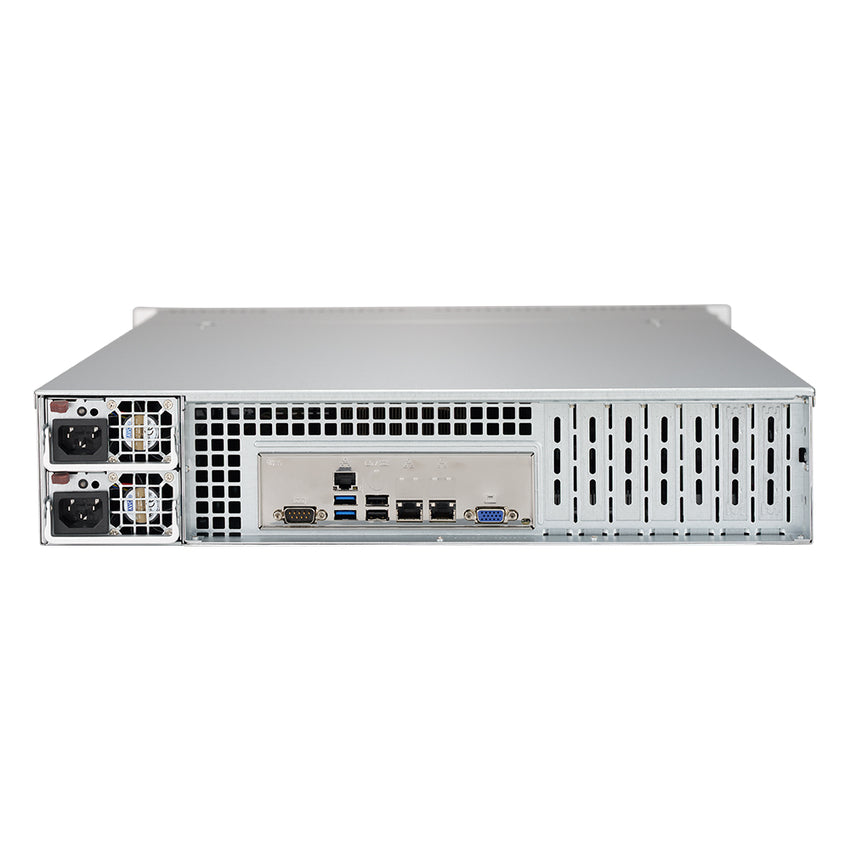

Rear I/O	1x Serial COM Port 1x RJ45 (Dedicated IPMI) 2x USB 3.0 Ports 2x USB 2.0 Ports 2x RJ45 GbE LAN 1x VGA Port

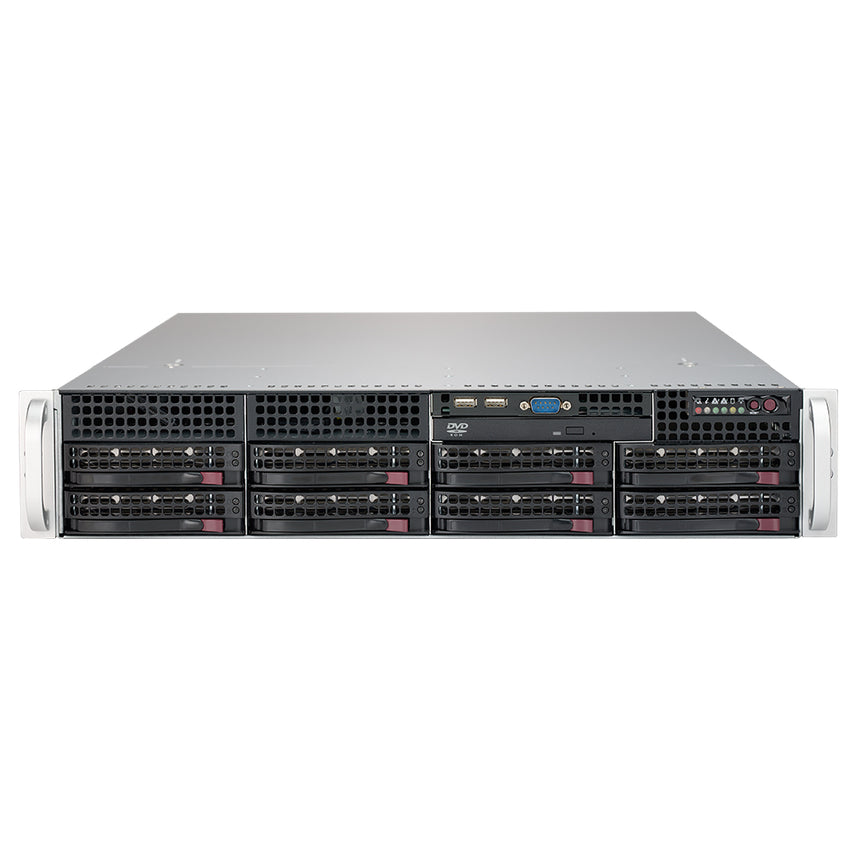

Front I/O	5x Status LED (Power, HDD, Network) 1x Reset Button 1x Power Button
Drive Support	8x 3.5" Hot-Swap SATA Drive bays(External) 1x M.2 (2260,2280,22110) PCI-E 3.0 x4 (Internal) Optional 2x 2.5" fixed NVMe devices
Power Supply	Redundant 1000W 80-PLUS Titanium Power Supply Input: 100-127Vac, 12-9A, 50-60Hz 200-240Vac, 7.2-6A, 50-60Hz +12V: 66.7A, Min 0A (100-127Vac) 83A, Min 0A (200-240Vac) +5Vsb: Max 4A, Min 0A
Case Dimensions	2U Rackmount 647 x 437 x 89mm 26.7" x 34.5" x 11.4" (in inches) Net Weight: 16.1 kg, 35.5 lbs Gross Weight: 31.2 kg, 69 lbs
Case Cooling	Includes 3x 80x38mm 9.4K RPM Hot-Swappable Cooling Fans
Warranty	1-Year Warranty on Parts and Labor
