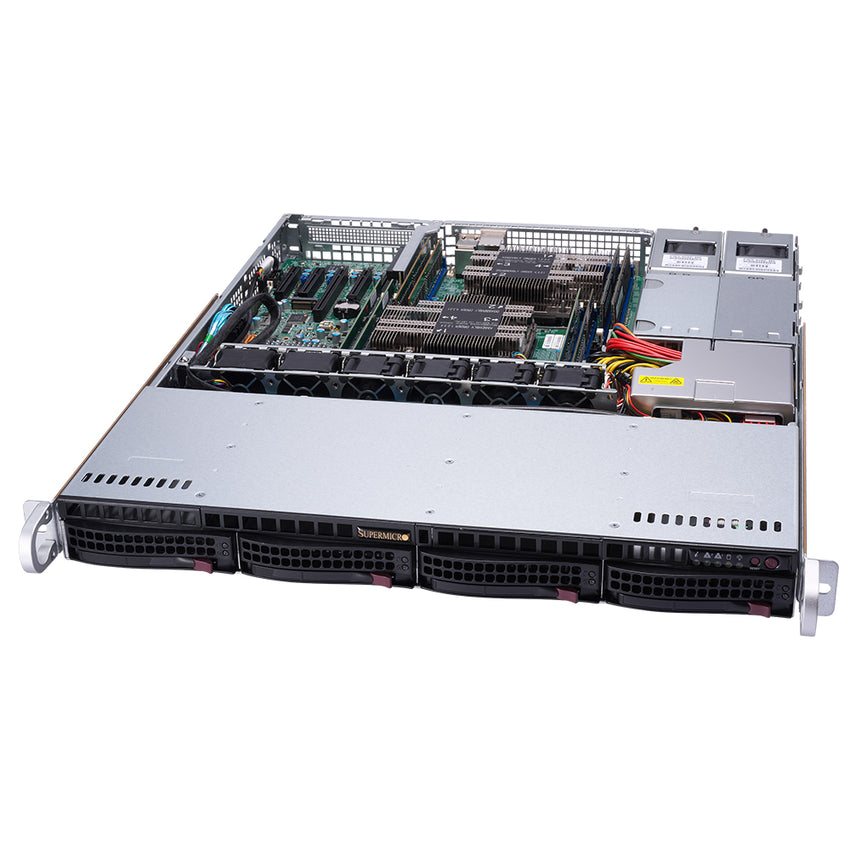

Supermicro SuperServer 6019P-MTR Dual Intel Xeon CPU, 4x 3.5" Hot-swap bays
Manufacturer	Supermicro
Model Number	SYS-6019P-MTR
CPU	Supports 2x Intel Xeon Scalable Processors Socket P, LGA 3647 140W Max TDP
Chipset	Intel C621
Memory	Supports 4x DDR4-2666 ECC RDIMM Slots per CPU (8 Total) 6-Channel, 1.2V Supports up to 512GB ECC RDIMM Supports up to 1TB ECC LRDIMM 3DS
Video	Aspeed AST2500 BMC
Storage Technology	4x SATA3 6.0Gb/s RAID 0, 1, 5, 10
Connectivity	2x Marvell 8E1512 PHY GbE 1x Realtek RTL8211E-VB-CG dedicated IPMI
Expansion	1x PCI-E 3.0 x8 slot Supports Full Height, Half Length

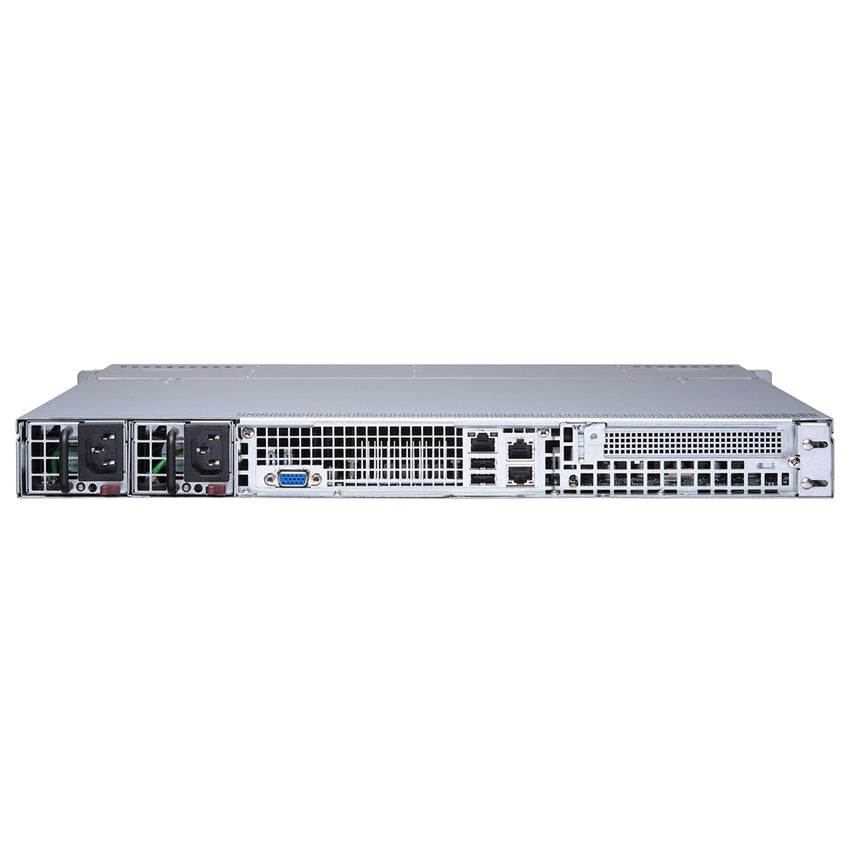

Rear I/O	1x VGA Port 1x RJ45 LAN (Dedicated IPMI) 2x USB 2.0 2x RJ45 GbE LAN 1x UID Button

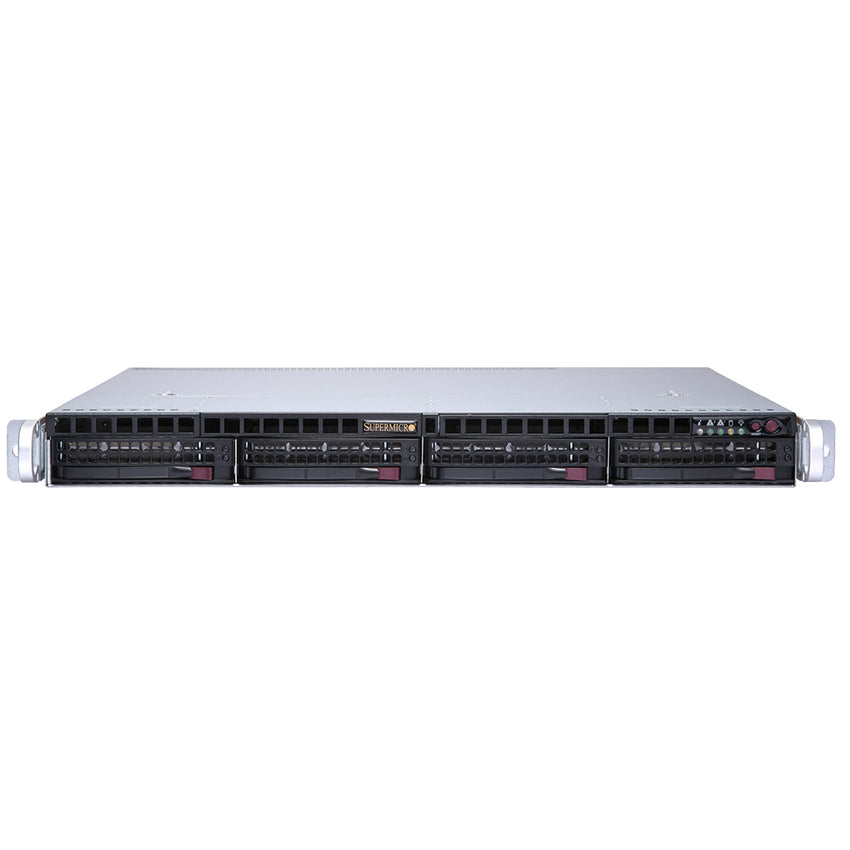

Front I/O	5x Status LED (Power, HDD, Network) 1x Reset Button 1x Power Button
Drive Support	4x 3.5" Hot-Swap HDD/SSD (External) 1x M.2 (2260/2280) PCI-E 3.0 x4 (Internal)
Power Supply	1+1 Redundant 600W 80-PLUS Platinum Power Supply Input: 90-264V, 50-60Hz, 7.5 - 2.5A +12V: Max 50A, Min 0.5A +5Vsb: Max 3A, Min 0A
Case Dimensions	1U Rackmount 508 x 437 x 43mm 19.95" x 17.2" x 1.7" (in inches) Net Weight: 9.4 kg, 20.7 lbs Gross Weight: 13.6 kg, 30.0 lbs
Case Cooling	Includes 4x 40x28mm 22.5K RPM Middle Cooling Fans Supports additional 2x Cooling Fans for AOC
Warranty	1-Year Warranty on Parts and Labor
