Manufacturer	ASRock Industrial
Product ID
Model Name	4x4 BOX-AI350
CPU	AMD Ryzen AI 7 350 Processor 8 Cores / 16 Threads 2.0 - 5.0 GHz 28W TDP, 16 MB L3 Cache AMD XDNA 2 NPU
Chipset	SoC AMD FW TPM
Memory	2 x DDR5 SODIMM slots Maximum 96GB Capacity 5600 MHz
Video	AMD Radeon 860M Graphics 8 Cores 3000 MHz HDMI 2.1 Max Resolution: 7680x4320@60Hz DisplayPort 1.4a Max Resolution: 4096x21260@60Hz Maximum 4 Display Outputs (Includes 2 outputs from Type-C)
Audio	Realtek ALC256 HD Audio
Storage Technology	1 x M.2 2242/2280 slot (PCI-E 4.0 x4) 1 x M.2 2242 slot (PCI-E 4.0 x4)
Connectivity	1 x Realtek RTL8125BG 2.5GbE LAN 1 x Realtek RTL8111H GbE LAN WIFI 6E 802.11ax Bluetooth 5.2
Expansion Slots	1 x M.2 2230 slot (Occupied by WIFI module)

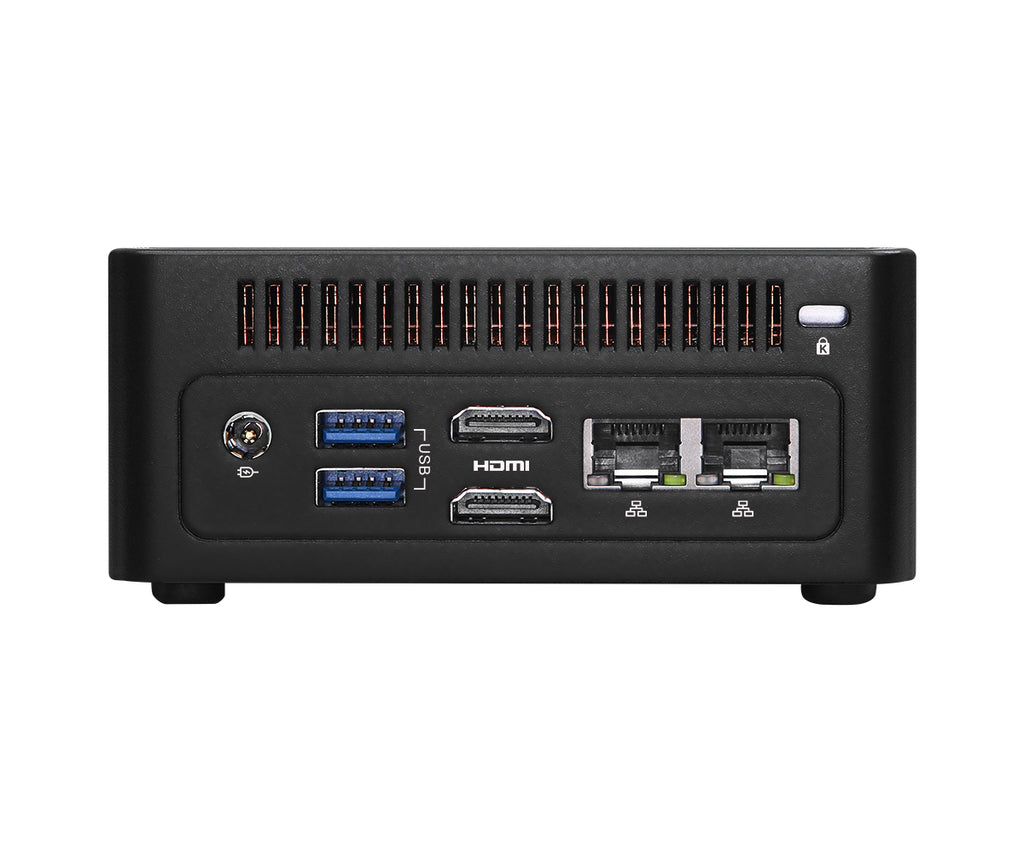

Rear Panel I/O	1 x DC-IN 2 x USB 3.2 (Gen1) 2 x HDMI 2.1 1 x RJ45 2.5GbE LAN 1 x RJ45 GbE LAN

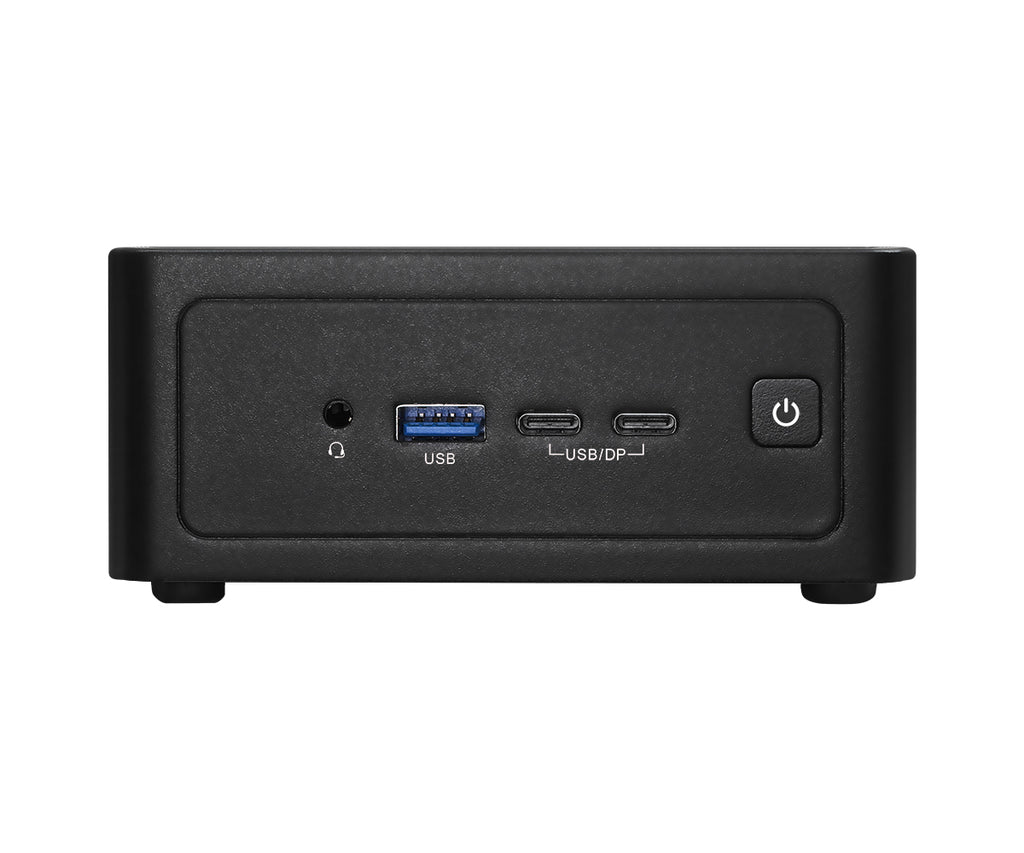

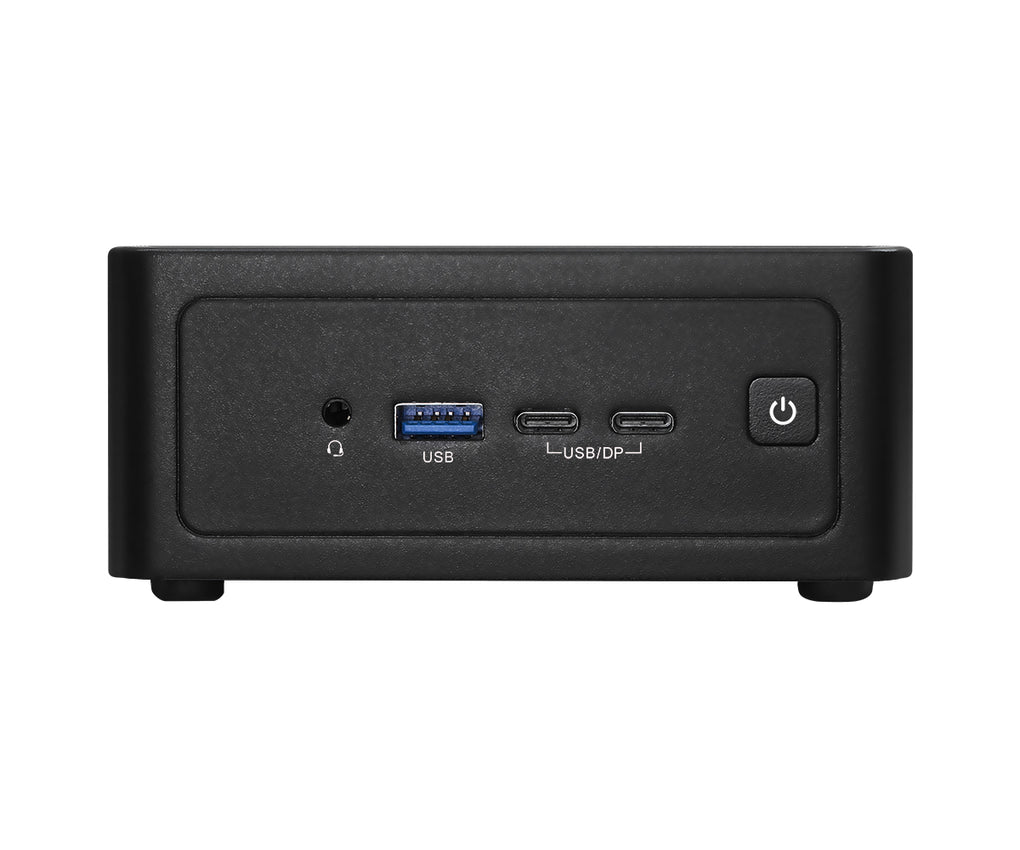

Front Panel I/O	1 x 3.5mm Audio I/O 1 x USB 3.2 (Gen2) 2 x USB4 Type-C (Supports DisplayPort 1.4a)
Drive Support	1 x M.2 2242/2280 slot (PCI-E 4.0 x4) 1 x M.2 2242 slot (PCI-E 4.0 x4)
OS Support	Windows 11
Power Supply	12-24V DC-IN 120W 19V Power Adapter
Case Dimensions	117.5 x 110.0 x 49mm 4.63" x 4.33" x 1.93" (in inches)
Mounting	VESA Mount Bracket
Environmental	Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 5% to 90% (non-condensing) Non-Operating Humidity: 5% to 90% (non-condensing)
Compliance	CE, FCC
Warranty	2 Years Manufacturer's Limited Warranty
