Manufacturer	ASRock Rack
Product ID	4U10G-TURIN2/RF
CPU	Supports 2 x AMD EPYC 9005/9004 Series (with AMD 3D V-Cache Technology) Socket SP5 Up to 500W
Chipset	SoC
Memory	24 x DDR5 DIMM slots (12 per CPU) Max Capacity per RDIMM: 128GB Max Capacity per RDIMM -3DS: 256GB 6400 MHz
Video	ASPEED AST2600
Storage Technology	24 x NVMe/SATA/SAS Passive Backplane Note: SAS Support Requires HBA/RAID Card 2 x M.2 22110/2280 slots (PCI-E 3.0 x4/SATA)
Connectivity	2 x Intel I350 GbE LAN 1 x Realtek RTL8211F GbE Dedicated Managment LAN
Expansion	10 x PCI-E 5.0 x16 slot (Full Height, Full Length, Dual Slot) 1 x PCI-E 5.0 x16 slot (Full Height, Full Length) 2 x PCI-E 5.0 x16 slots (Full Height, Half Length) 2 x PCI-E 5.0 x8 slots (Full Height, Full Length) shared space with adjacent Dual slot (with PEX89104 PCIe Switch) 1 x OCP 3.0 slot (PCI-E 5.0 x16)

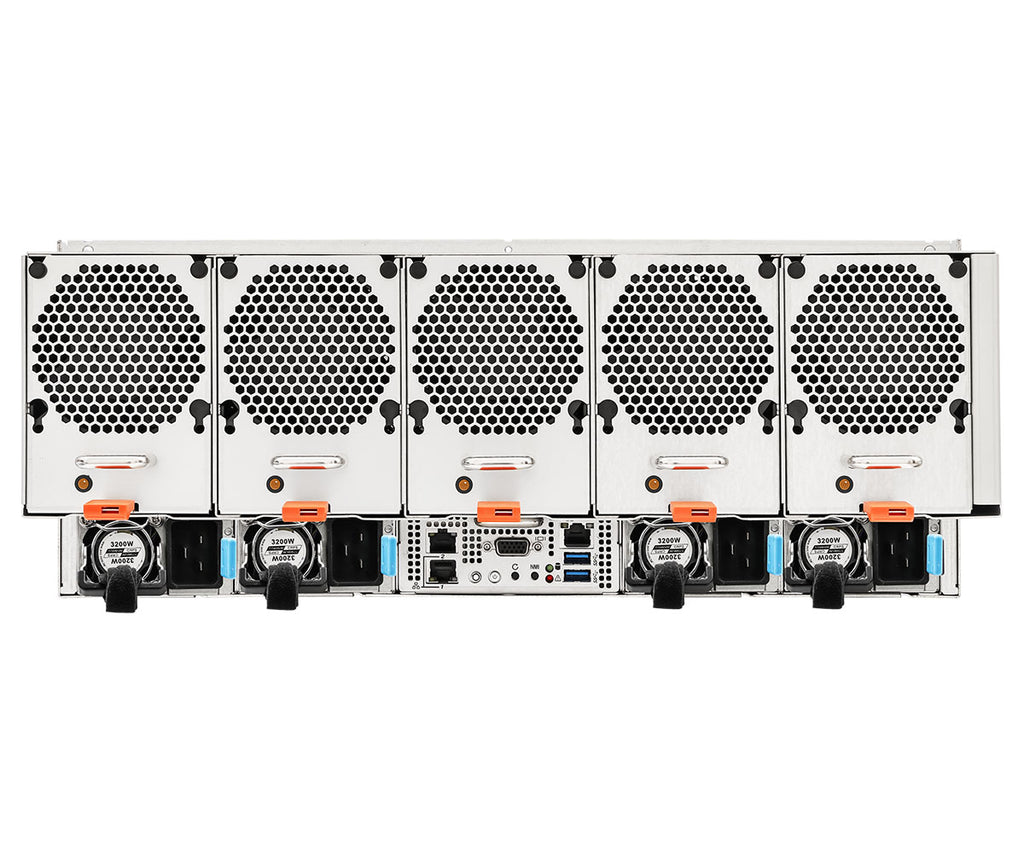

Rear I/O	2 x RJ45 GbE LAN 1 x VGA 1 x ID Button 1 x Power Button 1 x Reset Button 1 x NMI Button 2 x Status LED (Power, HDD) 1 x RJ45 GbE Dedicated Management LAN 2 x USB 3.2 (Gen1)

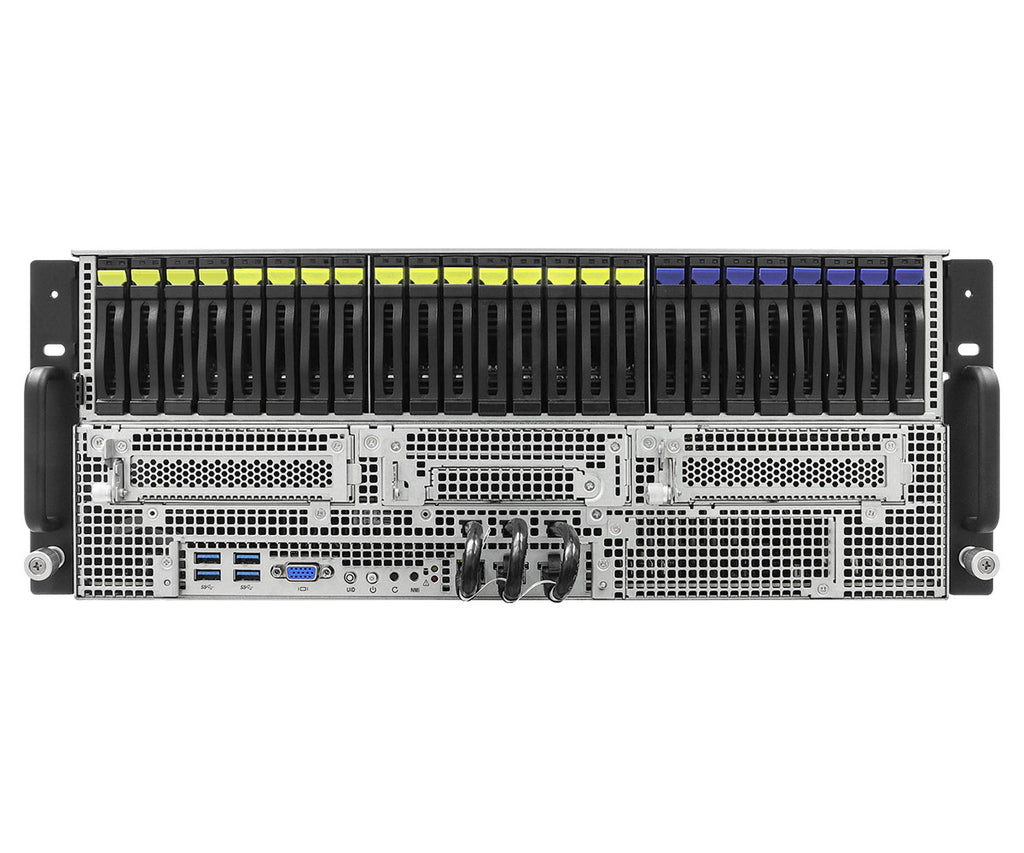

Front Panel I/O	4 x USB 3.2 (Gen1) 1 x VGA 1 x UID Button 1 x Power Button 1 x Reset Button 1 x NMI Button 2 x Status LED (Power, HDD) 1 x RJ45 GbE Dedicated Management LAN (Shared with Rear) 2 x RJ45 GbE LAN (Shared with Rear)
Drive Support	16 x 2.5" NVMe Drive Bays or 24 x 2.5" SATA Drive Bays 2 x M.2 22110/2280 slots (PCI-E 3.0 x4 or SATA)
Power Supply	3+1 80-Plus Titanium CRPS 100-127Vac: 1000W Output 200-240Vac: 3200W Output 47/63Hz
Cooling	5 x 80x80mm Middle Hotswap Fans 5 x 80x80mm Rear Hotswap Fans
Case Dimensions	4U Rackmount 867 x 438 x 176.5mm 34.1" x 17.2" x 6.9" (in inches)
Environmental	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Non-Operating Humidity: 20% to 90% (non-condensing)
Warranty	1 Year Manufacturer's Limited Warranty
