Manufacturer | ASRock Rack |
Product ID | 2U4N-F2T |
CPU | Supports 2 x Intel Xeon E5-2600 v3/v4 Series Processor per Node Total 8 CPUs LGA 2011 R3 (Narrow Type CPU Cooler) |
Chipset | Intel C612 |
Memory | 16 x DDR4 DIMM slots per Node Supports up to 512GB RDIMM Supports up to 1024GB LRDIMM 4-Channel |
Video | Aspeed AST2400 DDR3 16MB VRAM |
Storage Technology | 10 x SATA3 6Gb/s Ports per Node Supports RAID 0, 1, 5, 10 1 x M.2 slot per Node (SATA or PCI-E 3.0 x4) |
Connectivity | 2 x Intel X540 10Gbase-T LAN Ports per Node Supports Teaming Function Supports Wake-On-LAN Supports PXE 1 x Realtek RTL8211E Dedicated IPMI per Node |
Expansion | 1 x PCI-E 3.0 x16 slot per Node (Half Height) 1 x Mezzanine x8 slot per Node |

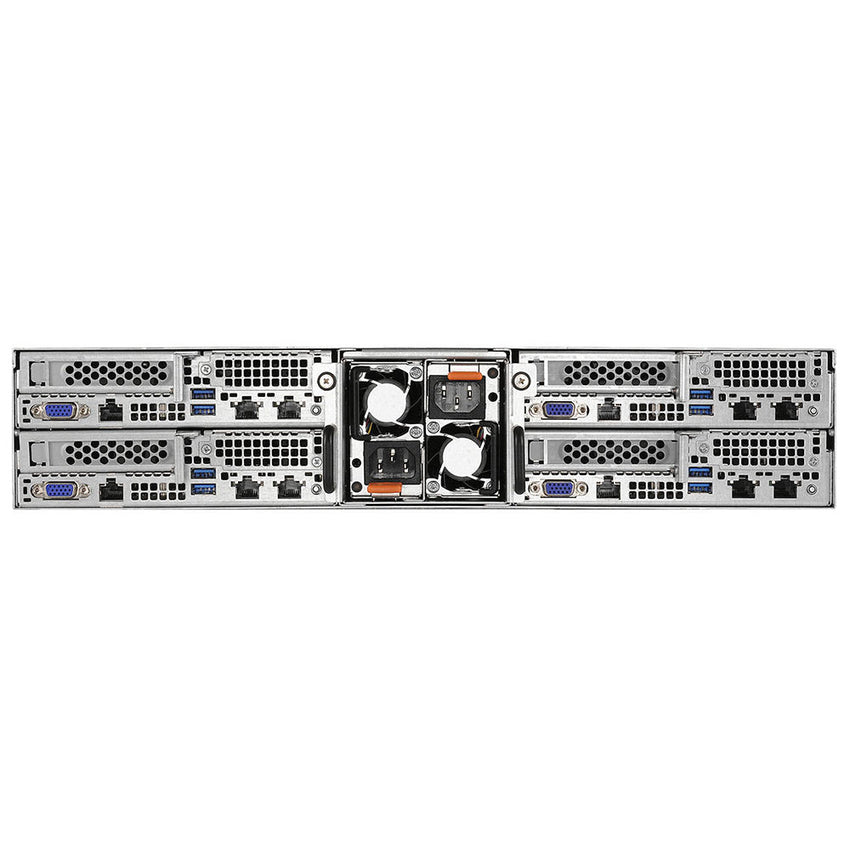

Rear I/O | 1 x VGA 1 x RJ45 Dedicated IPMI 2 x USB 3.1 (Gen 1) 2 x RJ45 10GBase-T LAN |

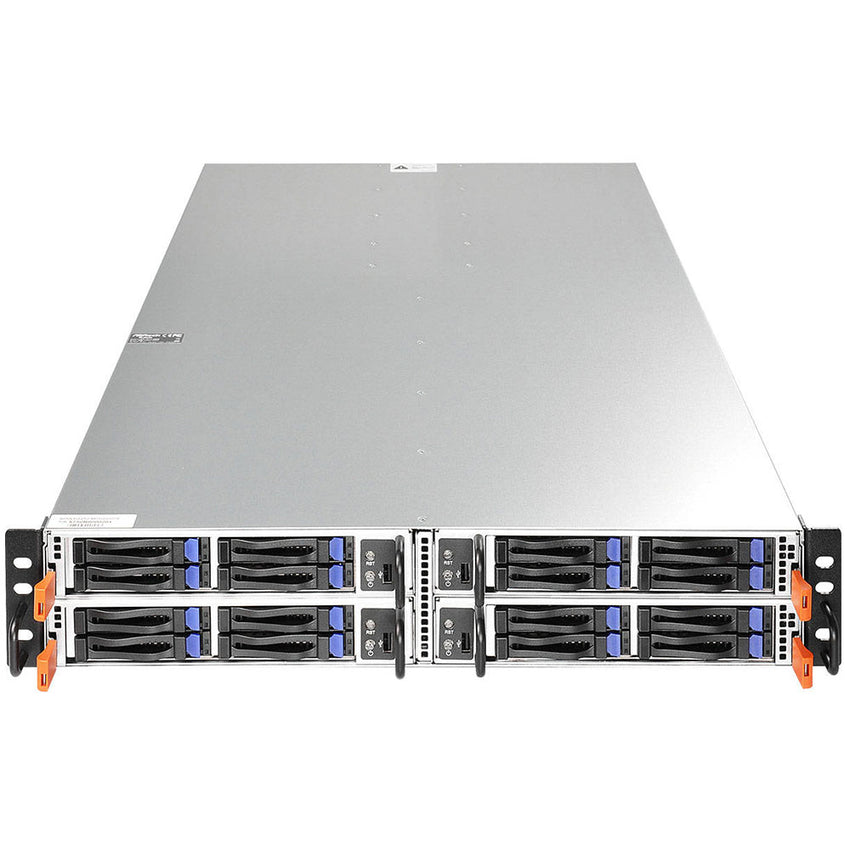

Front Panel I/O | Per Node: 1 x Power Button 1 x Reset Button 2 x Status LED (Power, UID) 1 x USB 2.0 |
Drive Support | 4 x 2.5" SATA3 Drive Bays per Node (16 total) 1 x M.2 slot (2280/2260/2242/2230) per Node (4 total) |
Power Supply | 1+1 Redundant 1200W 80 PLUS Platinum Power Supply |
Cooling | 16 x 40x56mm Fans |
Case Dimensions | 2U Form Factor 750 x 441 x 86mm 29.5" x 17.4" x 3.4" (in inches) |
Environmental | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
Warranty | 1 Year Manufacturer's Limited Warranty |
