| Manufacturer | ASRock Rack |
| Product ID | 2U4N-F/ROME-M3 |
| CPU |
Supports AMD EPYC 7003 and 7002 Series Processors Per Node (4 Total) Socket SP3 (LGA4094) Supports 120W - 225W TDP CPUs |
| Chipset | SoC |
| Memory |
8 x DDR4 DIMM Slots Per Node (32 Total) Supports up to 512 ECC RDIMM Per Node Supports up to 2,048 ECC LRDIMM Per Node Supports 3200/2933 MHz |
| Video |
Aspeed AST2500 |
| Storage Technology |
4 x SATA3 or 2 x NVMe + 2 x SATA 2 x M.2 2280/22110/30110 slot (SATA or PCI-E 4.0 x4) |
| Connectivity |
1 x Realtek RTL8211E Dedicated IPMI |
| Expansion |
2 x PCI-E 4.0 x16 slot (Low Profile) |

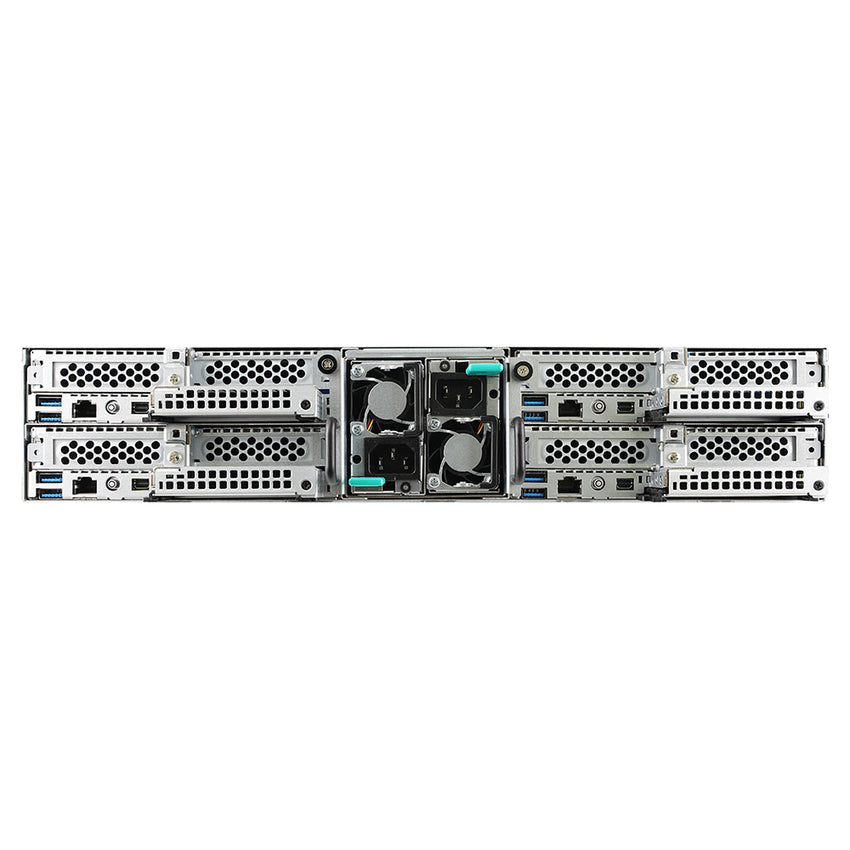

| Rear I/O |
Per Node: 2 x USB 3.2 (Gen1) 1 x RJ45 Dedicated IPMI 1 x UID Button with LED 1 x Mini DisplayPort, Dsub to Mini Display Cable |

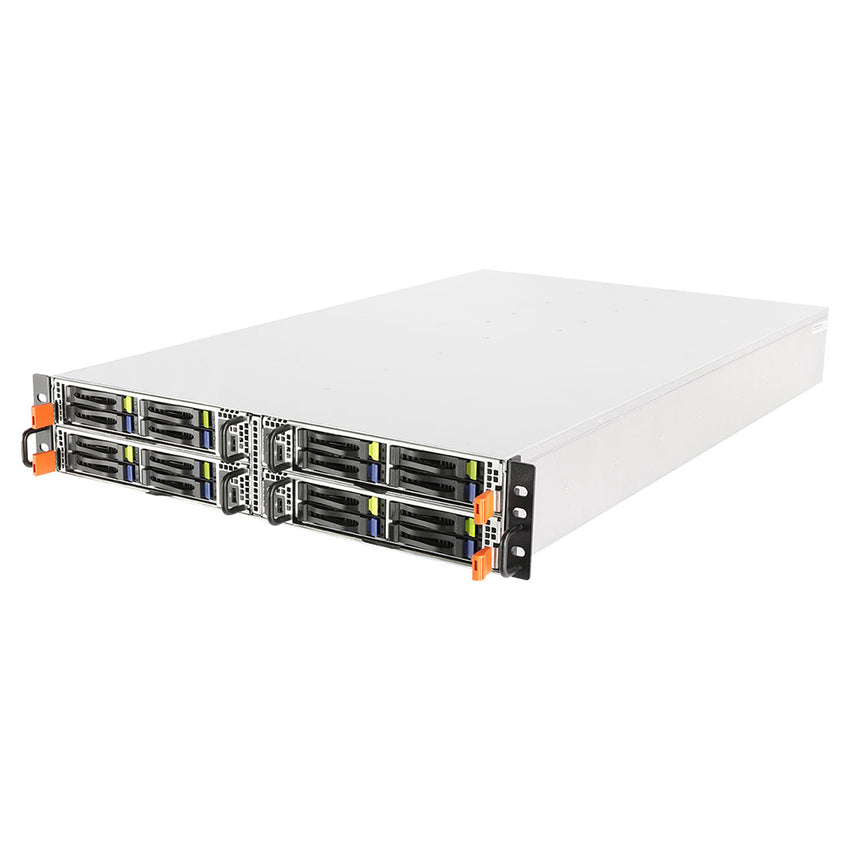

| Front Panel I/O |
Per Node: 1 x Power/Standby Button 1 x Reset Button 2 x Status LED (Power, UID) 1 x USB 2.0 12 x HDD LED (Act/Err/Locate) |
| Drive Support |
16 x 2.5" Hot Swap Drive Bays, all SATA or 8 x NVMe + 8 x SATA 2 x M.2 2280/22110/30110 slots (SATA or PCI-E 4.0 x4) |
| Power Supply |
1+1 1600W Redundant Platinum Power Supply |
| Cooling | 16 x 40x56mm Fans |
| Case Dimensions |
2U Form Factor 820 x 442.2 x 86.6mm 32.3" x 17.4" x 3.4" (in inches, approximate) |
| Environmental |
Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Warranty | 1 Year Manufacturer's Limited Warranty |
PRODUCT ID: 2U4N-F/ROME-M3
