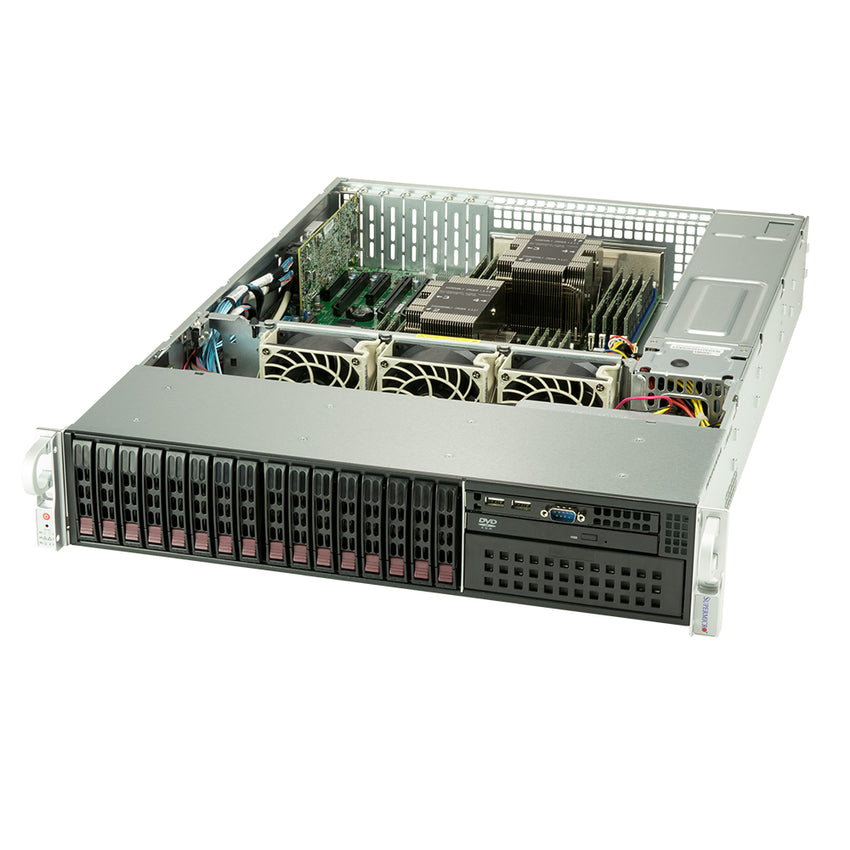

Supermicro SuperServer 2029P-C1R Dual Intel Xeon CPU, 2U Rackmount, 8x SAS3 and 8x SATA3 Hot Swap Drive Bay, 5x Low Profile PCI-E Expansion, Redundant PSU | |
Manufacturer | Supermicro |
Model Number | SYS-2029P-C1R |
CPU | Supports 2x Intel Xeon Scalable Processors Socket P, LGA 3647 205W Max TDP |
Chipset | Intel C621 |
Memory | Supports 8x DDR4-2666 ECC RDIMM Slots per CPU (16 Total) 6-Channel, 1.2V Supports up to 512GB ECC RDIMM Supports up to 2TB ECC LRDIMM 3DS |
Video | Aspeed AST2500 BMC |
Storage Technology | SATA3 6.0Gb/s RAID 0, 1, 5, 10 SAS Broadcom 3108 (12Gbps) Controller HW RAID 0, 1, 5, 6, 10, 50, 60 |
Connectivity | 2x Intel X722 GbE 1x Realtek RTL8211E-VB-CG dedicated IPMI |
Expansion | 4x PCI-E 3.0 x16 slots (Low Profile) 1x PCI-E 3.0 x8 slot (Low Profile) |

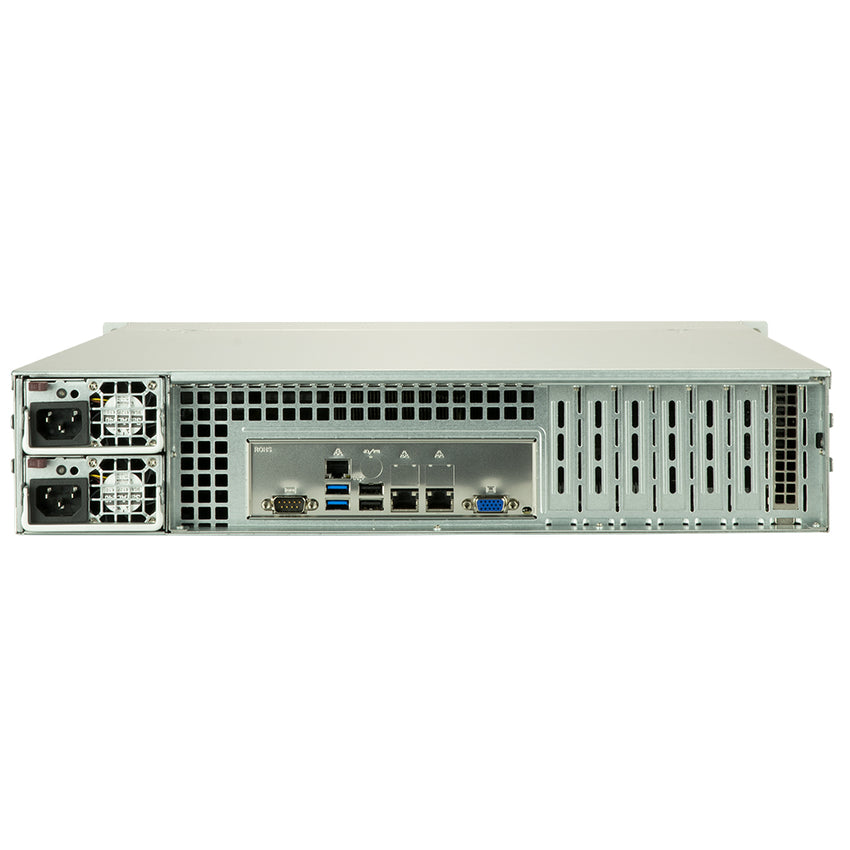

Rear I/O | 1x Serial COM Port 1x RJ45 (Dedicated IPMI) 2x USB 3.0 Ports 2x USB 2.0 Ports 2x RJ45 GbE LAN 1x VGA Port |

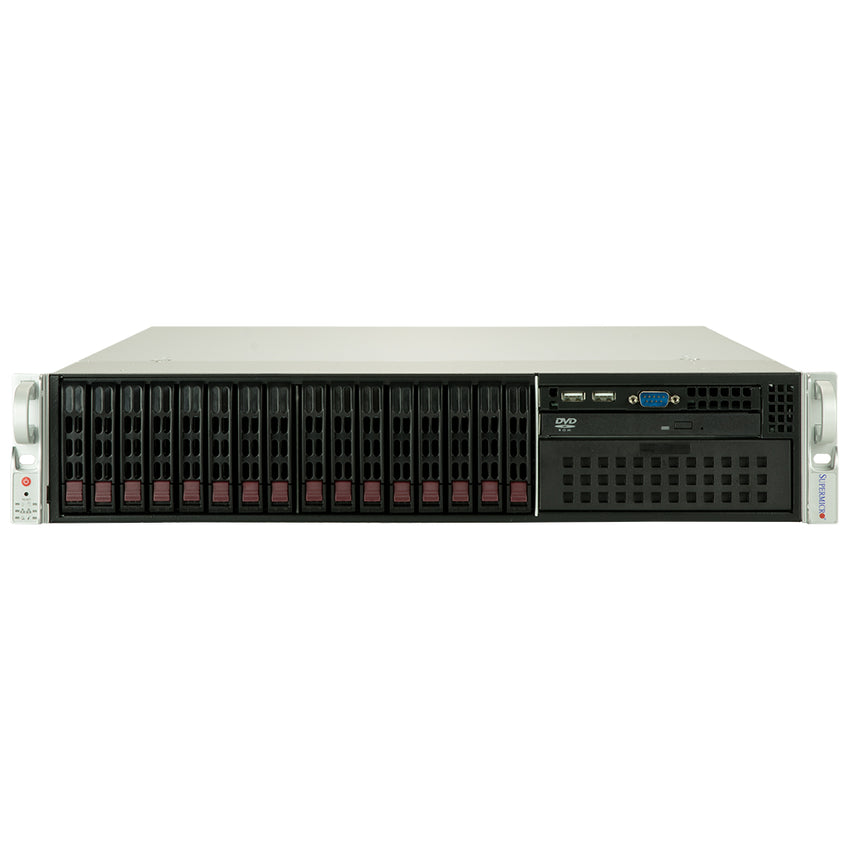

Front I/O | 1x Power Button 5x Status LED (Power, HDD, Network) 1x Reset Button 2x USB 2.0 Ports 1x Serial COM Port |
Drive Support | 8x 2.5" SATA3 Hot-Swap Drive bays(External) 8x 2.5" SAS3 Hot-Swap Drive bays (External) 1x M.2 (2260,2280,22110) PCI-E 3.0 x4 (Internal) Optional 2x Fixed 2.5" NVMe drive |
Power Supply | Redundant 1200W 80-PLUS Titanium Power Supply Input: 100-127Vac, 15-12A, 50-60Hz 200-240Vac, 8.5-7A, 50-60Hz +12V: 83A, Min 0A (100-127Vac) 100A, Min 0A (200-240Vac) +5Vsb: Max 4A, Min 0A |
Case Dimensions | 2U Rackmount 630 x 437 x 89mm 24.8" x 17.2" x 3.5" (in inches) Net Weight: 17.4 kg, 38 lbs Gross Weight: 28.8 kg, 63 lbs |
Case Cooling | Includes 3x 80x38mm 9.4K RPM Hot-Swappable Cooling Fans |
Warranty | 1-Year Warranty on Parts and Labor |
