| Manufacturer | ASRock Rack |
| Product ID | 1U4LW-X470 |
| CPU | Supports AMD Ryzen Series Processors Socket AM4, PGA 1331 |
| Chipset | AMD X470 |
| Memory | 4 x DDR4 DIMM slots Supports ECC/Non-ECC UDIMM Maximum 64GB Capacity |
| Video | Aspeed AST2500 DDR4 256MB VRAM |
| Storage Technology | 6 x SATA3 6.0Gb/s Ports |
| Connectivity | 2 x Intel I210 GbE LAN Supports Wake-On-LAN Supports Energy Efficient Ethernet 802.3az Supports Teaming Function Supports PXE 1 x Realtek RTL8211E Dedicated IPMI |
| Expansion | 1 x PCI-E 3.0 x16 slot (Full height, single width) |

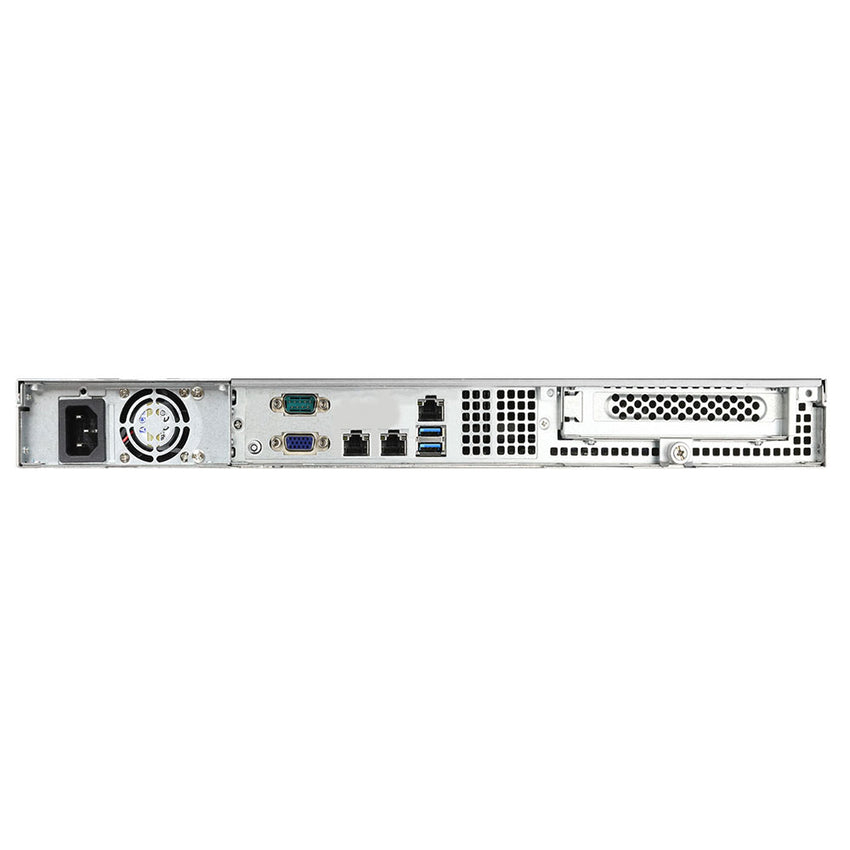

| Rear I/O | 1 x Serial COM Port 1 x VGA 2 x RJ45 GbE LAN 1 x RJ45 Dedicated IPMI 2 x USB 3.0 |
| Front Panel I/O | 1 x ID Switch 1 x Power Switch 1 x Reset Button 1 x NMI Button 2 x USB 3.0 6 x Status LED (Power, HDD, LAN, System Fail) |
| Drive Support | 4 x Hot Swap 3.5"/2.5" Drive Bays 2 x 2.5" Drive Bays (internal) 1 x M.2 22110/2280/2260/2242 slot (PCI-E 2.0 x4) 1 x M.2 22110/2280/2260/2242 slot (SATA or PCI-E 3.0 x2) 1 x Slim ODD or 2.5" Drive Bay (optional) |
| Power Supply | 400W 80 PLUS Gold Power Supply |
| Cooling | 5 x 40x28mm PWM Fans |
| Case Dimensions | 1U Rackmount Form Factor 533.4 x 482.6 x 44.4mm 21" x 19" x 1.75" (in inches) |
| Environmental | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Warranty | 1 Year Manufacturer's Limited Warranty |
PRODUCT ID: 1U4LW-X470

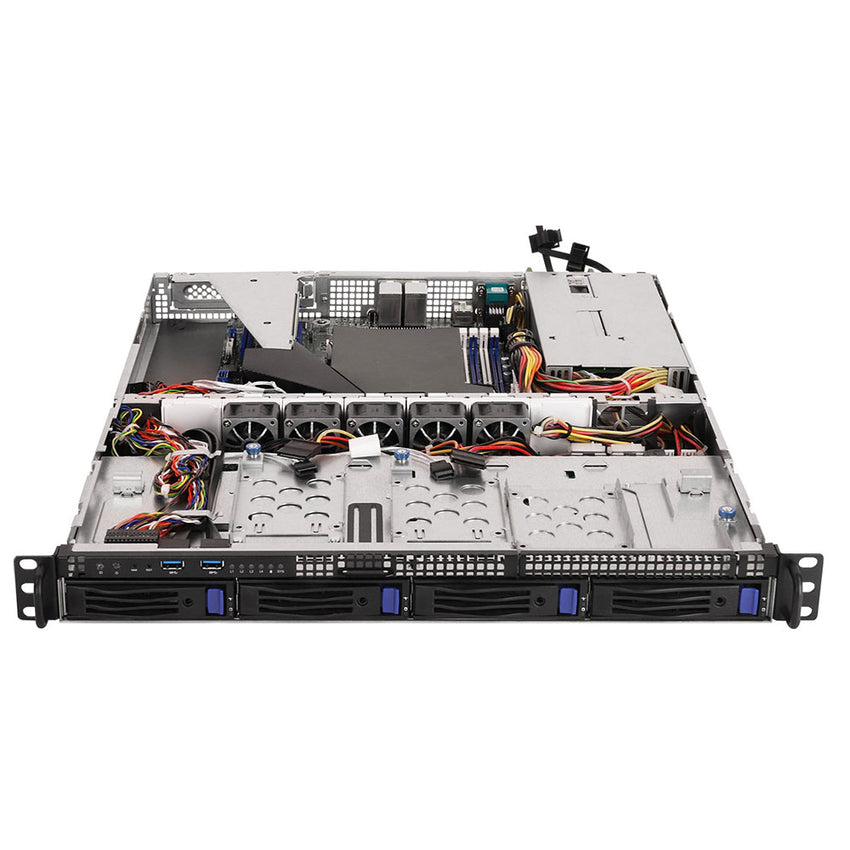

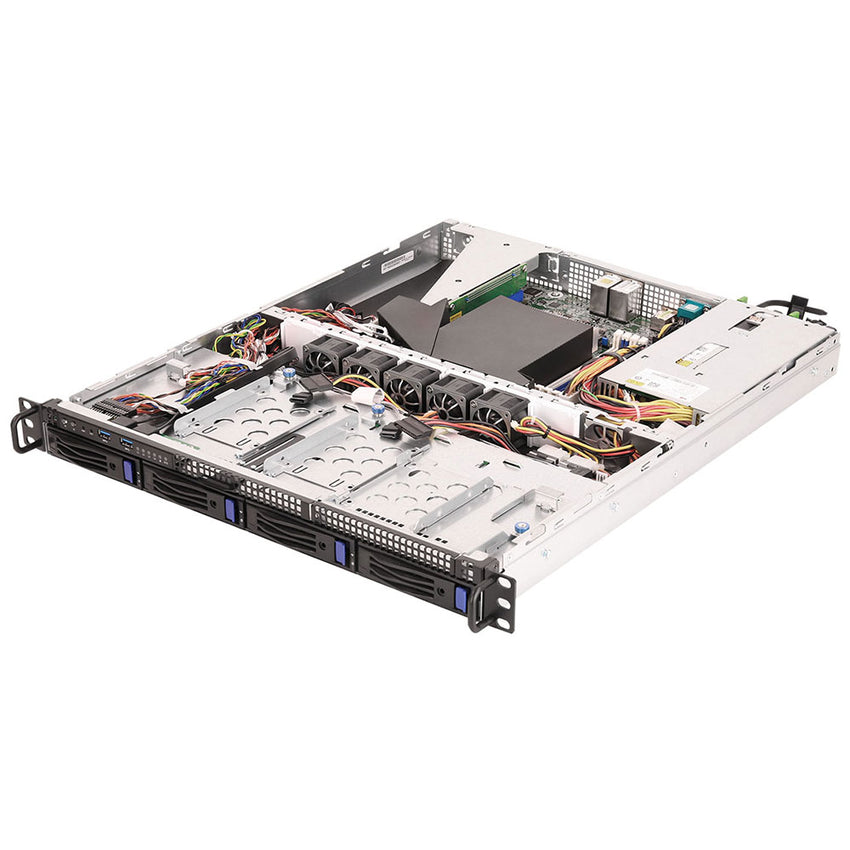

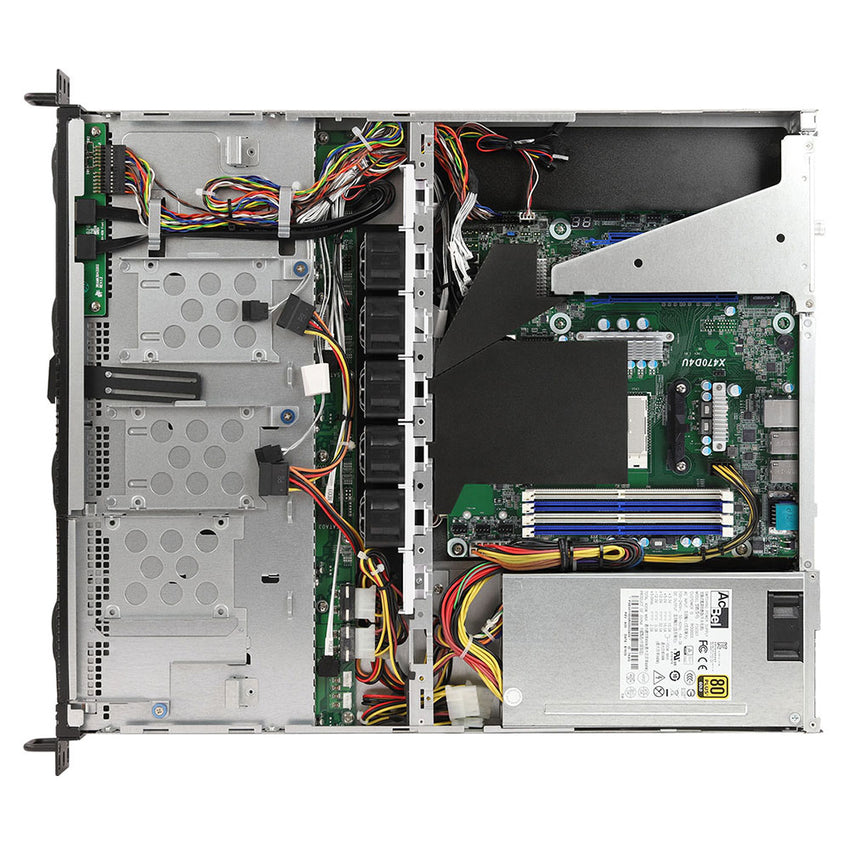

ASRock 1U4LW-X470 AMD Ryzen Series 1U Rackmount, 4 x 3.5"/2.5" Drive Bays, Dual GbE LAN with Teaming
This product is discontinued!
