| Manufacturer | ASRock Rack |
| Product ID | 1U4LW-ROME/2T |
| CPU |
Supports AMD EPYC 7003 Series Processors Socket SP3 |
| Chipset | SoC |
| Memory |
8 x DDR4 RDIMM slots Maximum 64GB RDIMM Capacity Per DIMM Maximum 128GB LRDIMM Capacity Per DIMM Maximum 256GB RDIMM/LRDIMM-3DS Capacity Per DIMM |
| Video | Aspeed AST2500 |
| Storage Technology |
2 x Mini-SAS HD 1 x M.2 2280 slot (PCI-E 4.0 x4 or SATA) |
| Connectivity |
2 x Intel X710 10G LAN 1 x Realtek RTL8211E Dedicated Management LAN |
| Expansion |
1 x PCI-E 4.0 x16 slot (Full Height, Half Length) |
| Rear I/O |

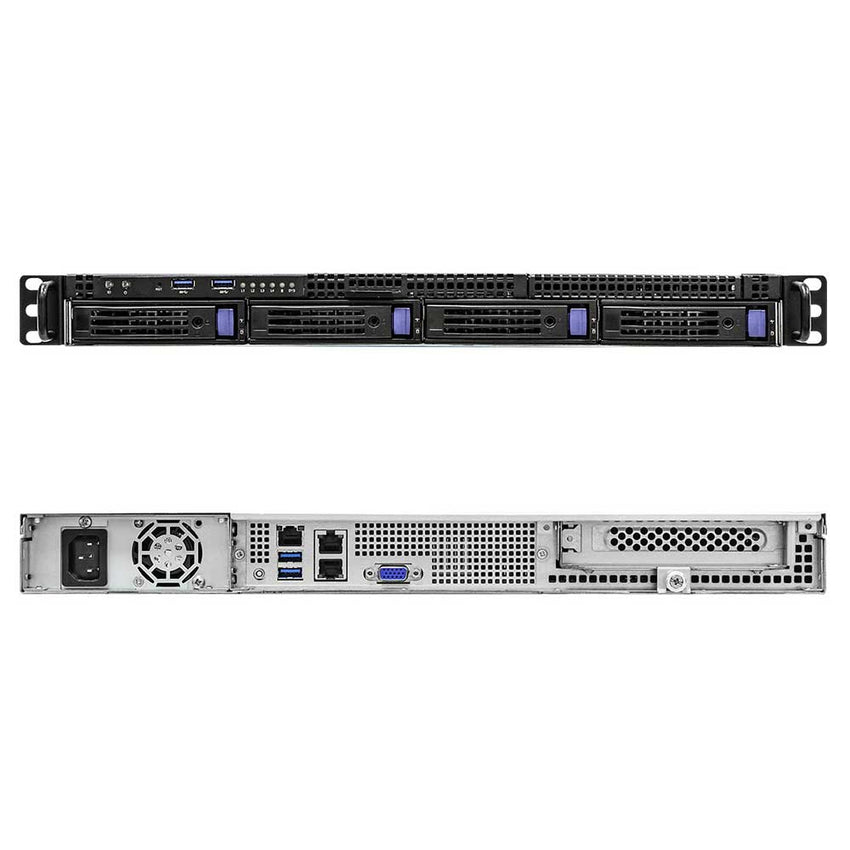

1 x UID Button 1 x RJ45 GbE Dedicated IPMI 2 x USB 3.2 (Gen1) 2 x RJ45 10G LAN 1 x VGA |
| Front Panel I/O |
1 x ID Switch 1 x Power Switch 1 x Reset Button 2 x USB 3.0 6 x Status LED (Power, UID, HDD, LAN, System Event) |
| Drive Support |
4 x 3.5" SATA Drive Bays 3 x 2.5" Internal SATA Drive Bays 1 x M.2 2280 slot (PCI-E 4.0 x4 or SATA) |
| Power Supply |
600W Flex ATX PSU AC Input: 100-240V, 50-60Hz |
| Cooling |
5 x 40x28mm Case Fans |
| Case Dimensions |
1U Rackmount 534.35 x 430 x 43.3mm 21" x 16.9" x 1.7" (in inches) |
| Environmental |
Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Warranty | 1 Year Manufacturer's Limited Warranty |
PRODUCT ID: 1U4LW-ROME/2T
