| Manufacturer | ASRock Rack |
| Product ID | 1U4LW-ICX/2T |
| CPU | Supports Intel 3rd Gen Xeon Scalable Processors (Ice Lake) Socket P+ LGA 4189 Supports up to 270W TDP |
| Chipset | Intel C621A |
| Memory | 8 x DIMM slots Maximum 512GB ECC RDIMM Total RDIMM: up to 64GB per slot 3200 MT/s |
| Video | Aspeed AST2500 |
| Storage Technology | External: 4 x Hot-swap 3.5'' SATA drive bays Internal: 1 x M.2 2280 M-key (PCIe3.0 x4 or SATA) 3 x fixed 2.5'' SATA drive bays Supports Software RAID 0, 1, 5, 10 |
| Connectivity | 2 x Intel 10 GbE LAN (X710-AT2) 1 x Realtek RTL8211E 1GbE Dedicated IPMI |
| Expansion | 1 x PCIe 4.0 x16 FHHL slot |

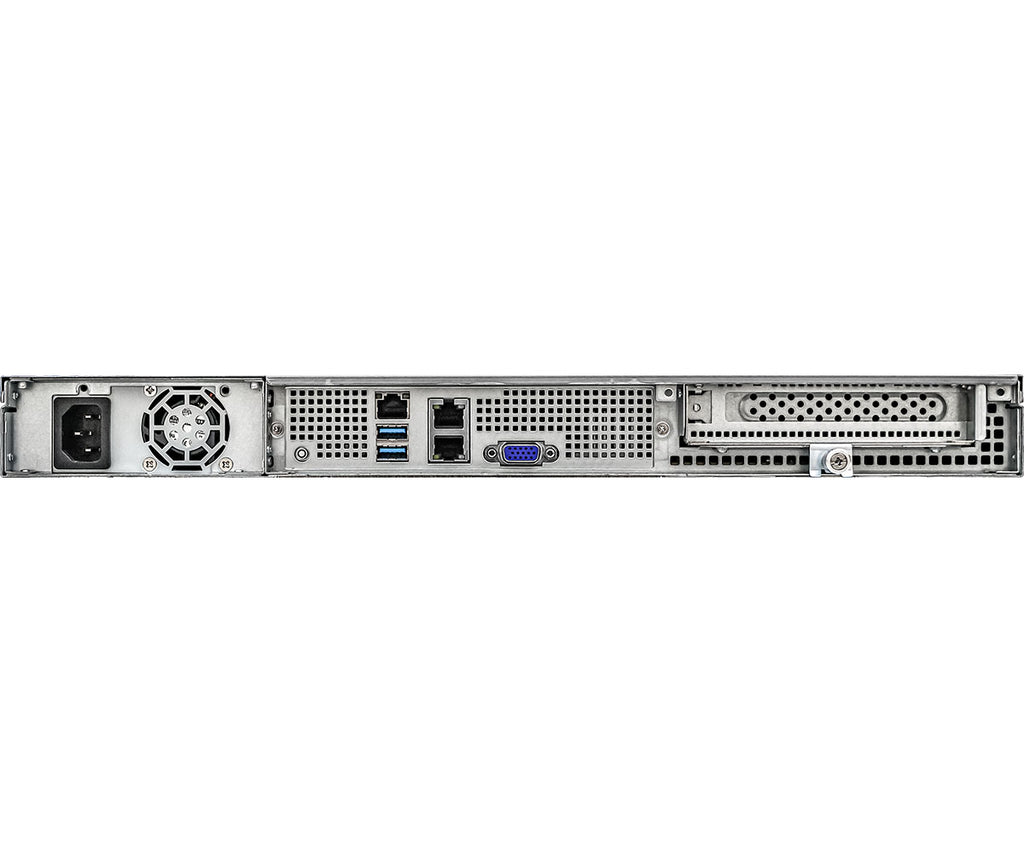

| Rear I/O | 1 x UID w/ LED 2 x USB 3.2 Gen1 1 x RJ45 1GbE Dedicated IPMI 2 x RJ45 10GbE LAN 1 x VGA |
| Front Panel I/O | 1 x Power Button 1 x Reset Button 1 x UID Button 7 x Status LED (Power, HDD, LAN1, LAN2, UID, System) |
| Drive Support | 4 x 3.5" SATA Hotswap Drive Bays 1 x M.2 2280 slot (PCIe 3.0 x4 or SATA) 3 x 2.5" SATA Internal |
| Power Supply | 600W 80-PLUS Platinum Power Supply 100-240Vac @ 50-60Hz |
| Cooling | 4 x PWM Hot-swap 40 x 28 mm fans |
| Case Dimensions | 1U Rackmount 21" x 16.9" x 1.7" (in inches) 534.35 x 430 x 43.3mm |
| Environmental | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Non-Operating Humidity: 20% to 90% (non-condensing) |
| Warranty | 1 Year Manufacturer's Limited Warranty |
PRODUCT ID: 1U4LW-ICX/2T
