| Manufacturer | ASRock Rack |

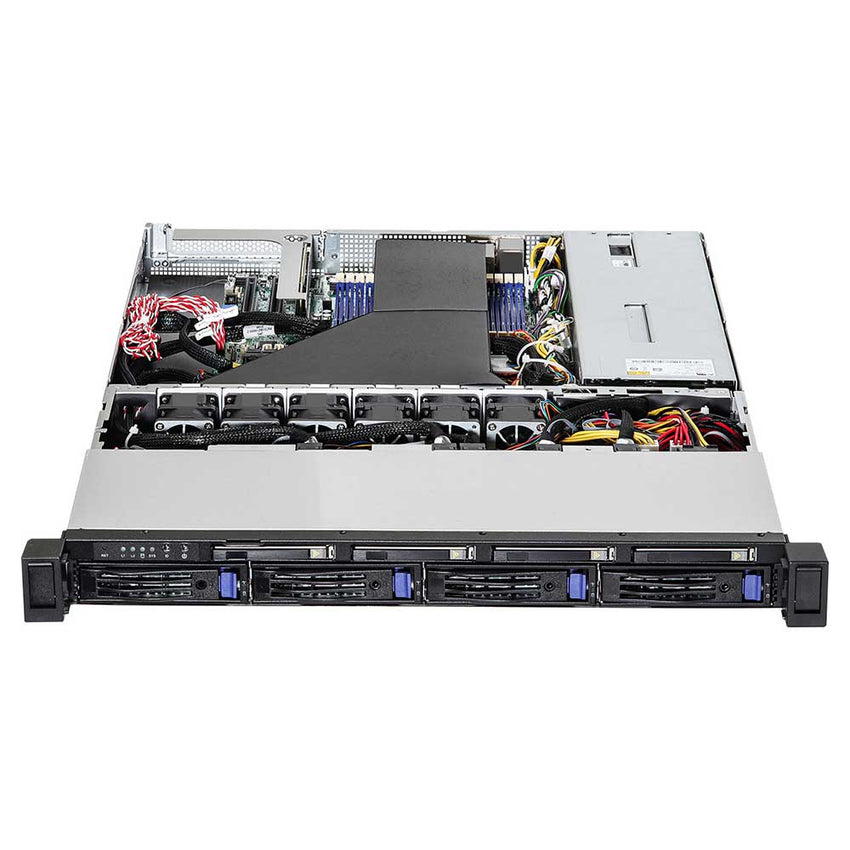

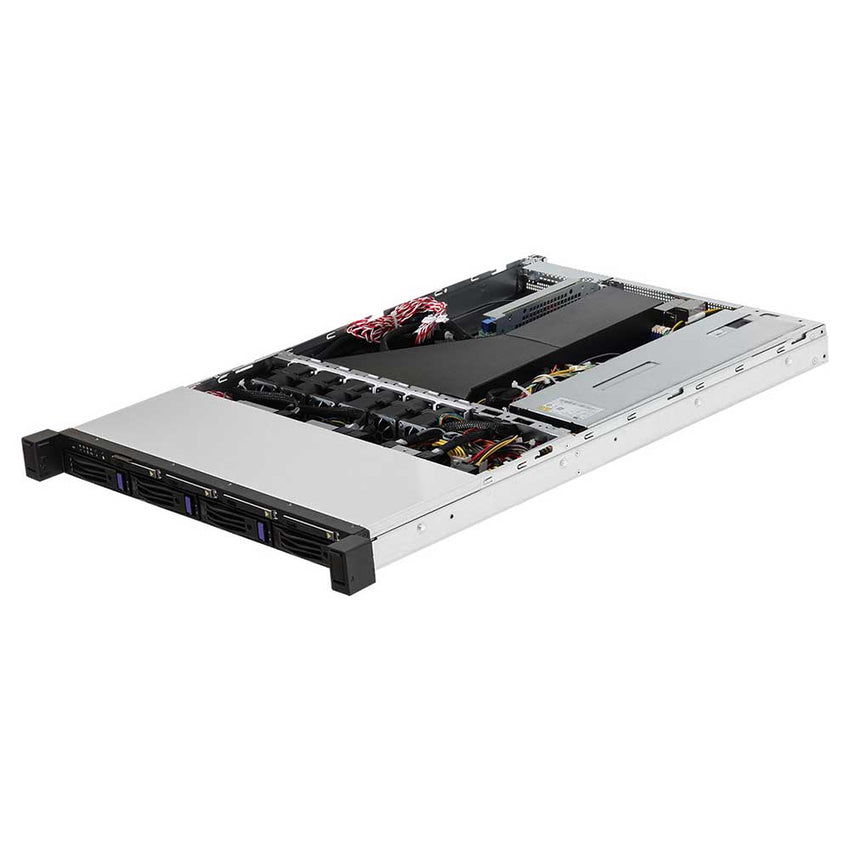

| Product ID | 1U4L4E-ROME/2T |
| CPU | Supports AMD EPYC 7003 Series Processors Socket SP3 |
| Chipset | SoC |
| Memory | 8 x DDR4 RDIMM slots Maximum 64GB RDIMM Capacity Per DIMM Maximum 128GB LRDIMM Capacity Per DIMM Maximum 256GB RDIMM/LRDIMM-3DS Capacity Per DIMM |
| Video | Aspeed AST2500 |
| Storage Technology | 2 x Mini-SAS HD 1 x M.2 2280 slot (PCI-E 4.0 x4 or SATA) |
| Connectivity | 2 x Intel X710 10G LAN 1 x Realtek RTL8211E Dedicated Management LAN |
| Expansion | 1 x PCI-E 4.0 x16 slot (Full Height, Half Length) |

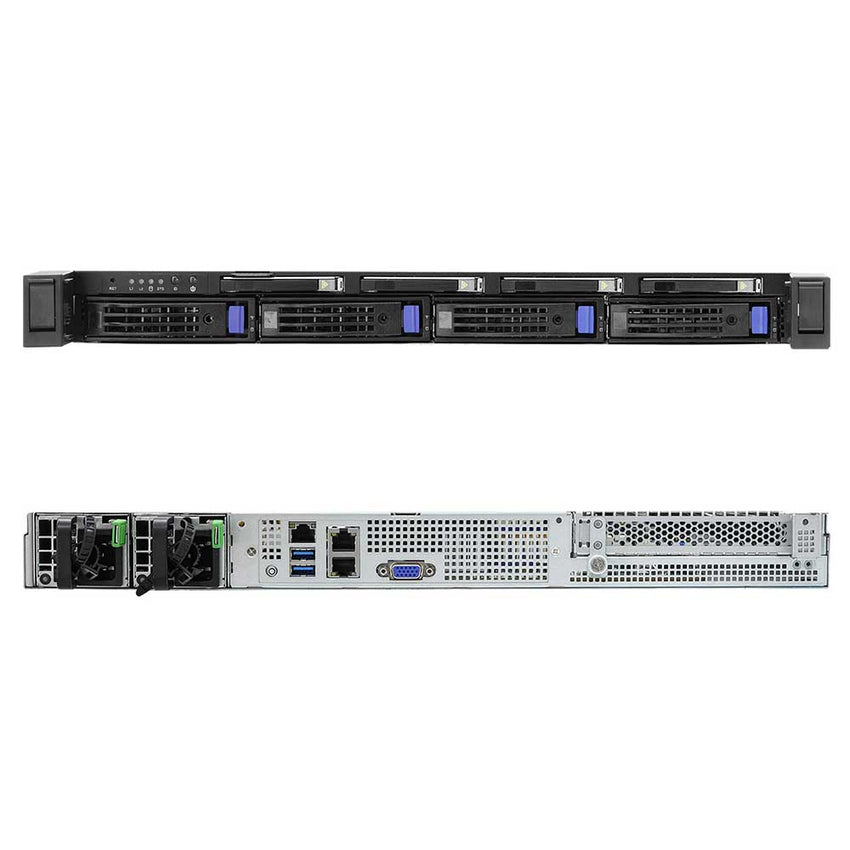

| Rear I/O | 1 x UID Button 1 x RJ45 GbE Dedicated IPMI 2 x USB 3.2 (Gen1) 2 x RJ45 10G LAN 1 x VGA |
| Front Panel I/O | 1 x ID Switch 1 x Power Switch 1 x Reset Button 2 x USB 3.0 6 x Status LED (Power, UID, HDD, LAN, System Event) |
| Drive Support | 4 x 3.5" SATA Drive Bays 4 x 2.5" NVMe/SATA Drive Bays 1 x M.2 2280 slot (PCI-E 4.0 x4 or SATA) |
| Power Supply | 1+1 Redundant 750W 80-PLUS Platinum AC Input: 100-240V, 50-60Hz |
| Cooling | 6 x 40x56mm Case Fans |
| Case Dimensions | 1U Rackmount 676.5 x 438 x 43.4mm 26.6" x 17.2" x 1.7" (in inches) |
| Environmental | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Non-operating Humidity: 20% to 90% (Non-condensing) |
| Warranty | 1 Year Manufacturer's Limited Warranty |
PRODUCT ID: 1U4L4E-ROME/2T
