| Manufacturer | ASRock Rack |
| Product ID | 1U4L2E-B650 RPSU |
| CPU | Supports AMD EPYC 4004 Series Processors Supports AMD Ryzen 9000/8000/7000 Series Processors Socket AM5 Maximum 170W TDP |
| Chipset | AMD B650 |
| Memory | 4 x DIMM DDR5 288-pin ECC/non-ECC UDIMM slots Supports Maximum 192GB Capacity Supports Maximum 48GB Per DIMM 5200 MHz (1DPC); 3600 MHz (2DPC) |
| Video | 1 x VGA via ASPEED AST2600 1 x HDMI, 1 x DisplayPort via CPU with iGPU |
| Storage Technology | 3 x SFF-8643 for 12 SATA 1 x M.2: PCI-E 4.0 x4 (On Motherboard) 1 x M.2: PCI-E 4.0 x1 (On PCIe I/O Board) 2 x SFF-8654 for 4 x NVMe Ports |
| Connectivity | 2 x Intel i210 1GbE ports 1 x Realtek RTL8211F Dedicated IPMI |
| Expansion | 1 x PCI-E 4.0 x16 slot (Full Height, Half Length) |

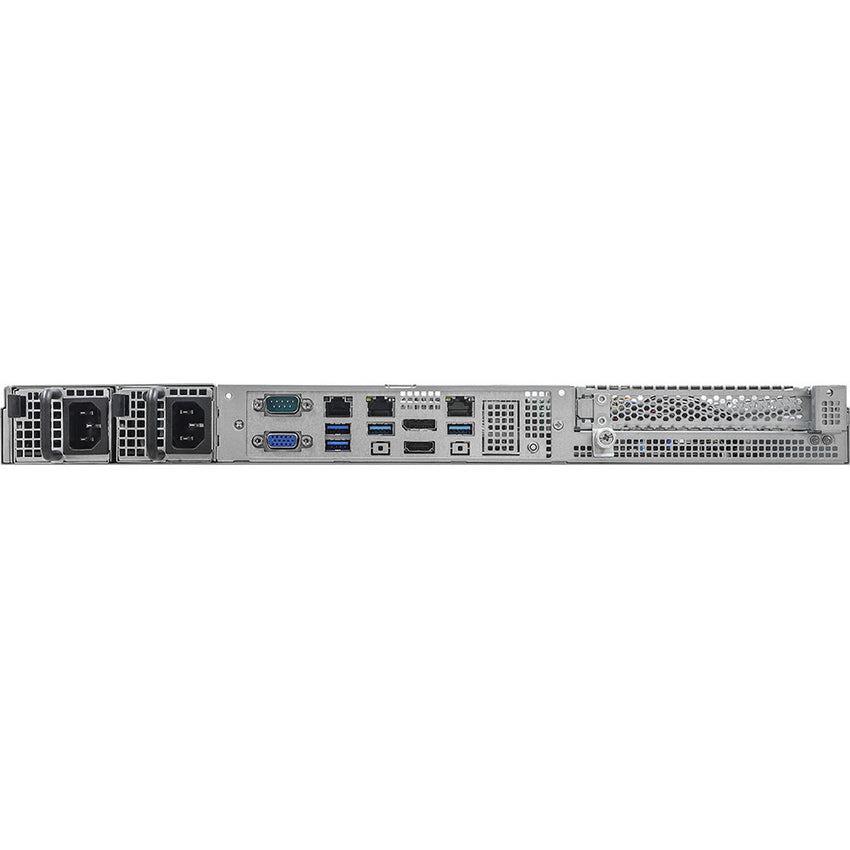

| Rear I/O | 1 x RJ45 Dedicated IPMI 2 x RJ45 1GbE LAN ports 1 x DisplayPort 1 x HDMI 1 x UID Button 4 x USB 3.2 Gen1 1 x COM |

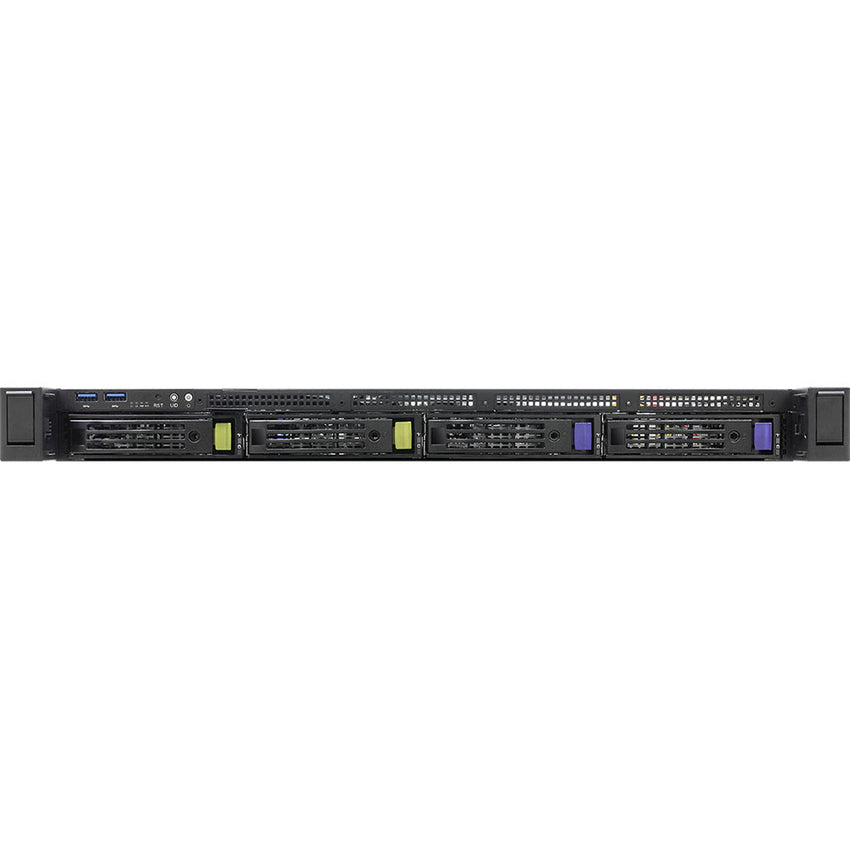

| Front Panel I/O | 2 x USB 3.2 Gen1 1 x RST Button 4 x Status LED (Power, HDD, LANs, System Event) 1 x Power Button with LED 4 x 2.5" / 3.5" Drive Bays |
| Drive Support | 2 x 3.5"/2.5" NVMe/SATA (NVME Hot Swap Unsupported) 2 x 3.5" SATA Hotswap Drive Bays 1 x M.2 2280 slot (PCI-E 4.0 x4) 1 x M.2 2280 slot (PCI-E 5.0 x4 share w/ FP NVME) |
| Power Supply | 1+1 650W 80-Plus Platinum Slim PSU 100-240Vac Input 50/60 Hz |
| Cooling | 6 x 40x56mm Case Fans |
| Case Dimensions | 1U Rackmount 26.6" x 17.2" x 1.7" (in inches) 676.5 x 438 x 43.4 mm |
| Environmental | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Non-Operating Humidity: 20% - 90% ( Non condensing)) |
| Warranty | 1 Year Manufacturer's Limited Warranty |
PRODUCT ID: 1U4L2E-B650 RPSU
