Manufacturer	ASRock Rack
Product ID	1U10E-ROME/2T
CPU	Supports AMD EPYC 7003 and 7002 Series Processors Socket SP3 (LGA4094)
Chipset	SoC
Memory	8 x DDR4 DIMM Slots Supports up to 256 ECC RDIMM Supports up to 1,024 ECC LRDIMM 8 Channel Supports 3200/2933/2666/2400 MHz
Video	Aspeed AST2500 DDR4 256Mb
Storage Technology	4 x SATA3 6.0 Gb/s (from Mini SAS HD) 7 x Slimline U.2: PCI-E 4.0 x8 M.2 2230/2242/2260/2280 slot (SATA and PCI-E 3.0 x4)
Connectivity	2 x Intel X550 10G Base-T LAN Supports Wake On Lan, Teaming Function, PXE 1 x Realtek RTL8211E Dedicated IPMI
Expansion	1 x PCI-E 4.0 x16 slot (Low Profile) 1 x OCP Mezzanine A/B

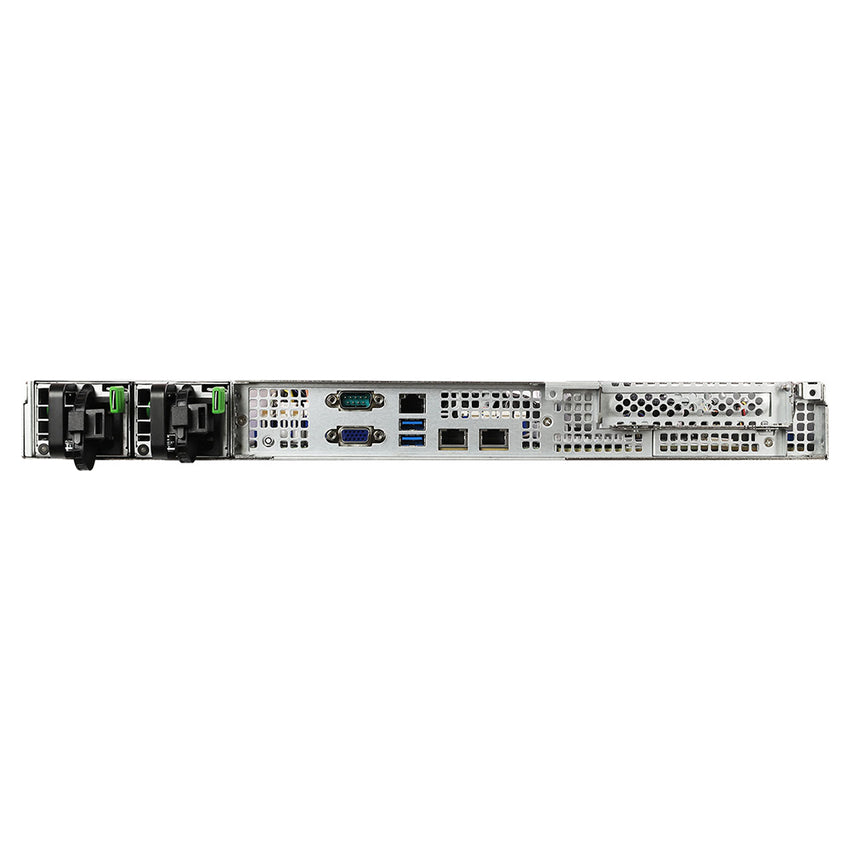

Rear I/O	1 x UID Button with LED 1 x Serial COM Port 1 x VGA 1 x RJ45 Dedicated IPMI 2 x USB 3.2 (Gen1) 2 x RJ45 10G LAN

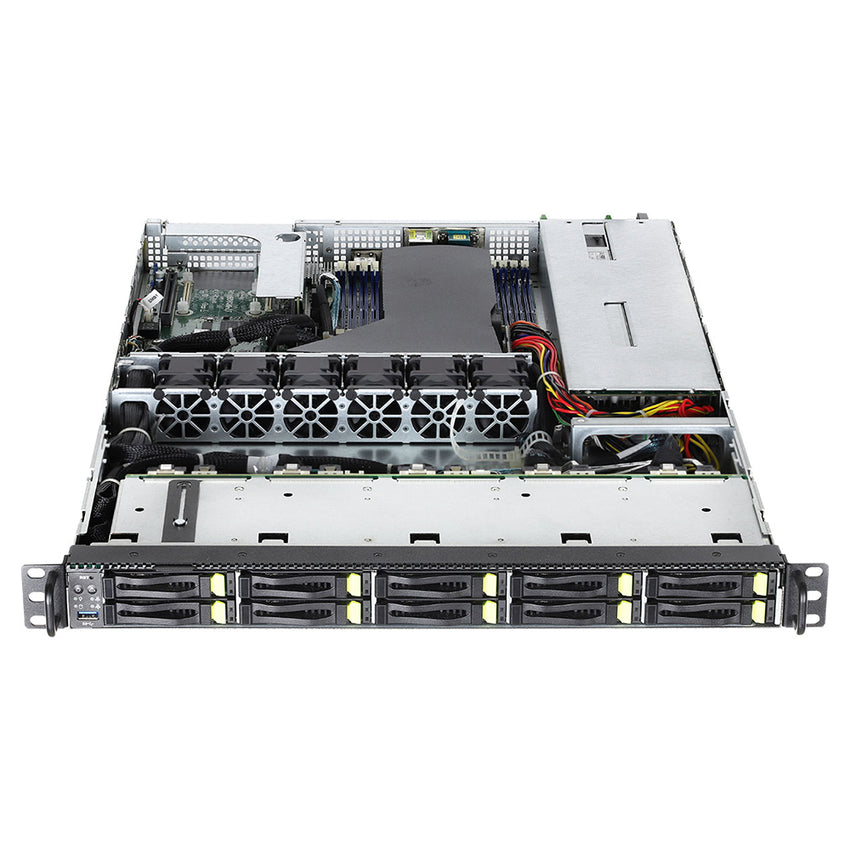

Front Panel I/O	1 x Power Button 1 x Reset Button 1 x NMI Button 3 x Status LED (Power, LAN) 1 x USB 3.0
Drive Support	10 x 2.5" SATA/SAS Drive Bays or NVMe Drives Backplane supports 10 SATA or NVMe Ports
Power Supply	1+1 750W Redundant Platinum Power Supply
Cooling	6 x 40x56mm Fans
Case Dimensions	1U Form Factor 625 x 430 x 43.5mm 24.6" x 17.0" x 1.7" (in inches, approximate)
Environmental	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Warranty	1 Year Manufacturer's Limited Warranty
