| Product ID | SYS-1029P-WT |
| CPU | Dual Socket P (LGA 3647) Intel Xeon Scalable Processors Maximum TDP: 165W Up to 28 Cores |
| Chipset | Intel C621 |
| Memory | 12 x DIMM slots Up to 1.5TB ECC 3DS LRDIMM, 768GB ECC RDIMM 2666/2400/2133MHz DDR4 SDRAM |
| Video | ASPEED AST2500 BMC |
| Storage Technology | 8 x SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| Connectivity | Dual Gigabit LAN with IntelĀ® X722 Dedicated IPMI Port |
| Management | IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Expansion | 2 x PCI-E 3.0 x16 (FHHL) slots 1 x PCI-E 3.0 x8 (LP) slot 1 x PCI-E 3.0 x16 for Add-on-Module 1 x PCI-E M.2 SSD slot |

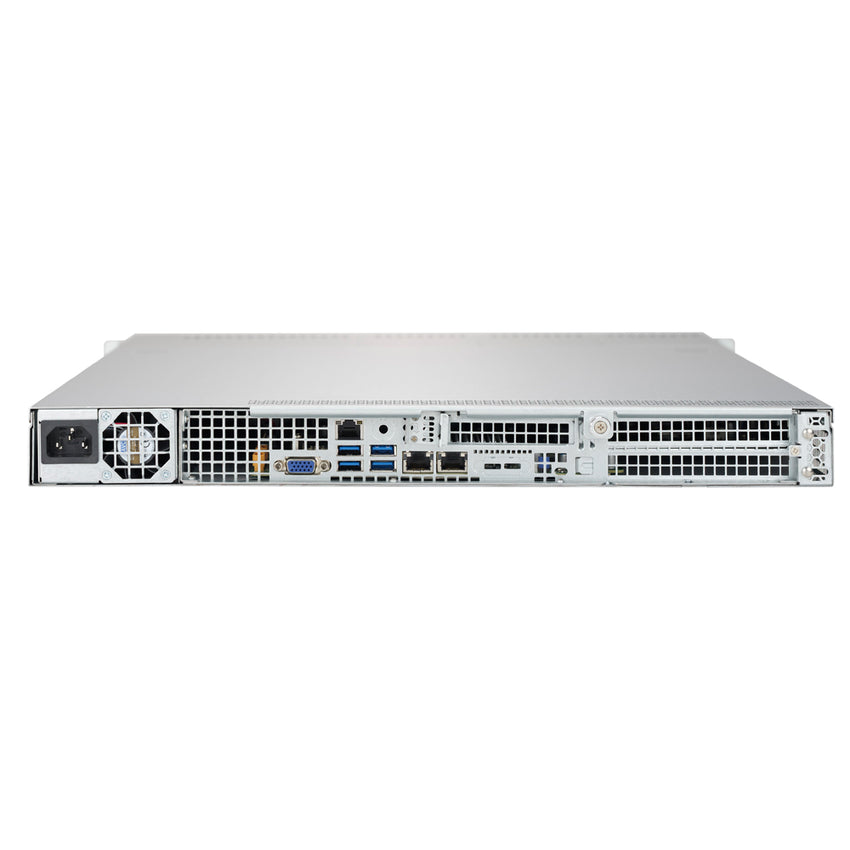

| Rear I/O | 1 x Serial 1 x IPMI RJ45 4 x USB 3.0 2 x GbE RJ45 1 x VGA |
| Front I/O | Power On/Off button UID button Power status LED HDD activity LED Network activity LEDs Universal Information (UID) LED |
| Drive Support | 8 x 2.5" SAS/SATA 6.0Gb/s 2 x SATA Disk On Module(s) 1 x Slim Optical Drive |
| Power Supply | 600W High-Efficiency Power Supply w/PMBus 100 ~ 240V Operation 80 PLUS Platinum Certified |
| Case Dimensions | 43 x 437 x 597mm 1.7" x 17.2" x 23.5" (in inches) |
| Case Cooling | 4 x 40x56mm PWM Fans |
| Mounting | Standard 19" 1U Rackmount Two sets of rail assemblies, mounting brackets and mounting screws are included. The rails will fit a rack between 26" and 33.5" deep. (Telco-style rack OK.) |
| Warranty | 1-Year Warranty on Parts and Labor |
