Supermicro SuperServer 1029P-MT Dual Intel Xeon CPU, 1U Rackmount, 8x 2.5" Hot-swap bays, 1x PCI-E x16
Manufacturer	Supermicro
Model Number	SYS-1029P-MT
CPU	Supports 2x Intel Xeon Scalable Processors Socket P, LGA 3647 140W Max TDP
Chipset	Intel C621
Memory	Supports 4x DDR4-2666 ECC RDIMM Slots per CPU (8 Total) 6-Channel, 1.2V Supports up to 512GB ECC RDIMM Supports up to 1TB ECC LRDIMM 3DS
Video	Aspeed AST2500 BMC
Storage Technology	SATA3 6.0Gb/s RAID 0, 1, 5, 10
Connectivity	2x Marvell 88E1512 PHY GbE 1x Realtek RTL8211E-VB-CG dedicated IPMI
Expansion	1x PCI-E 3.0 x16 slots (Full Height, Half Length)

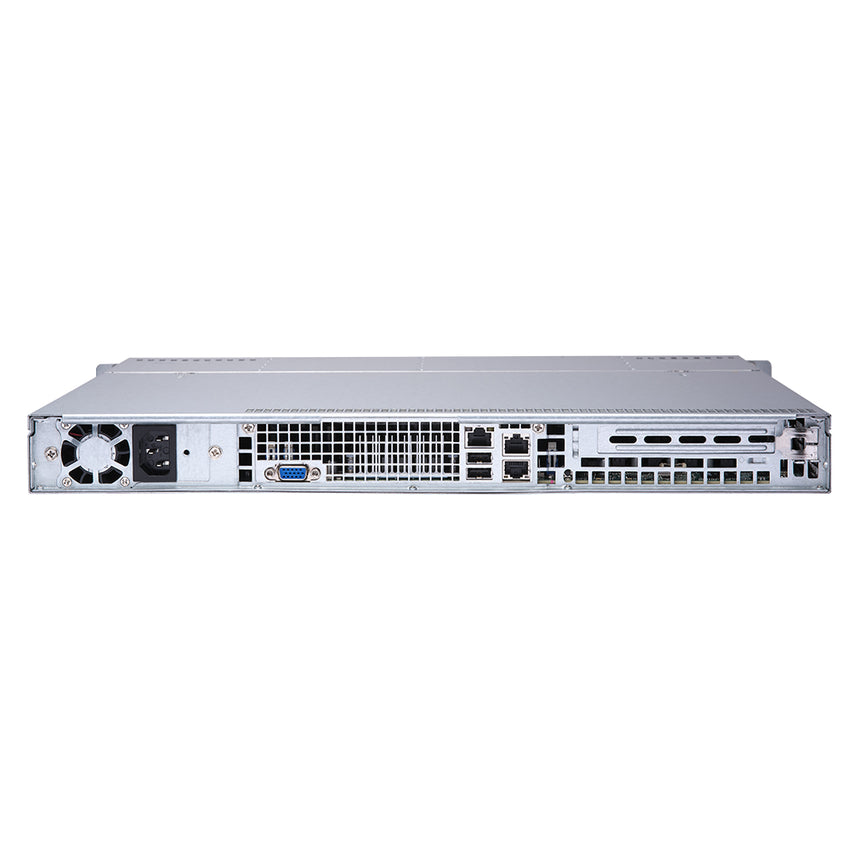

Rear I/O	1x VGA Ports 1x RJ45 (Dedicated IPMI) 2x USB 2.0 Ports 2x RJ45 GbE LAN 1x UID Button

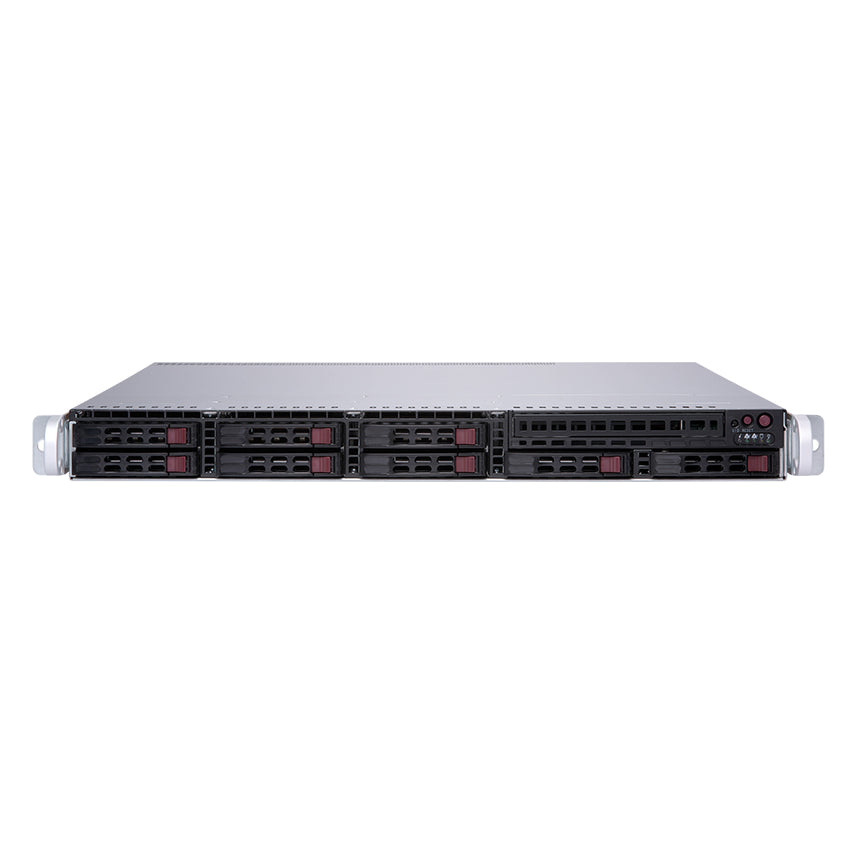

Front I/O	1x UID LED 1x Reset Button 1x Power Button 5x Status LED (Power, HDD, Network)
Drive Support	8x 2.5" Hot-Swap SATA Drive bays (External) 1x M.2 (2260,2280) PCI-E 3.0 x4 (Internal)
Power Supply	600W 80-PLUS Platinum Power Supply Input: 100-240V, 50-60Hz +3.3V: 15A +5V: 18A +5V standby: 3A +12V: 49A -12V: 0.5A
Case Dimensions	1U Rackmount 508 x 437 x 43mm 23.4" x 17.2" x 1.7" (in inches) Net Weight: 8.9 kg, 19.6 lbs Gross Weight: 13.5 kg, 29.8 lbs
Case Cooling	Includes 4x 40x28mm 22.5K RPM middle Cooling Fans Supports additional 2x Cooling Fans for AOM
Warranty	1-Year Warranty on Parts and Labor
