Manufacturer | Cincoze |
Product ID | P1101-N42-R10 |
CPU | Intel Pentium N4200 Processor 4 Cores / 4 Threads 1.10 - 2.50 GHz 6W TDP, 2 MB L2 Cache |
Chipset | SoC |
Memory | 1 x DDR3L SODIMM slot Maximum 8GB Capacity 1333/1600/1866 MHz Unbuffered and Non-ECC only Low Voltage 1.35V Required |
Video | Intel HD Graphics 505 200 - 750 MHz Supports 3 Displays via CDS, VGA, DisplayPort VGA Max Resolution: 1920x1200@60Hz DisplayPort Max Resolution: 4K x 2K@60Hz |
Audio | Realtek ALC888-GR |
Storage Technology | 1 x SATA3 6.0 GB/s Ports Mini PCI-E with mSATA support |
Connectivity | 2 x Intel I210 GbE LAN Supports WoL, Teaming, Jumbo Frame & PXE |
Expansion Slots | 2 x Mini PCI-E Slot (Full Size) 1 x SIM Socket 1 x CDS Interface for Convertible Display Module |

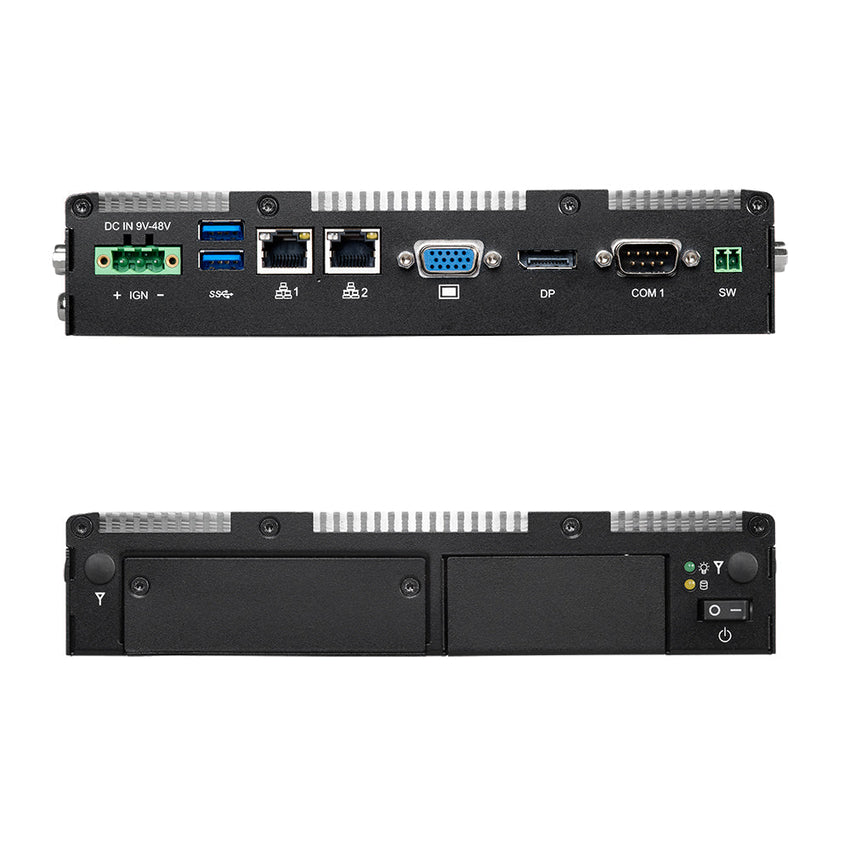

Rear Panel I/O | 1 x 3-Pin Terminal Block DC-IN (9-48VDC) 2 x USB 3.0 2 x RJ45 GbE LAN 1 x VGA 1 x DisplayPort 1 x COM (RS232/422/485, Support 5V/12V) 1 x 2-Pin Terminal Block Remont Power On/Off |
Front Panel I/O | 2 x Antenna Cutout 2 x Status LED (Power, HDD) 1 x Power Switch |

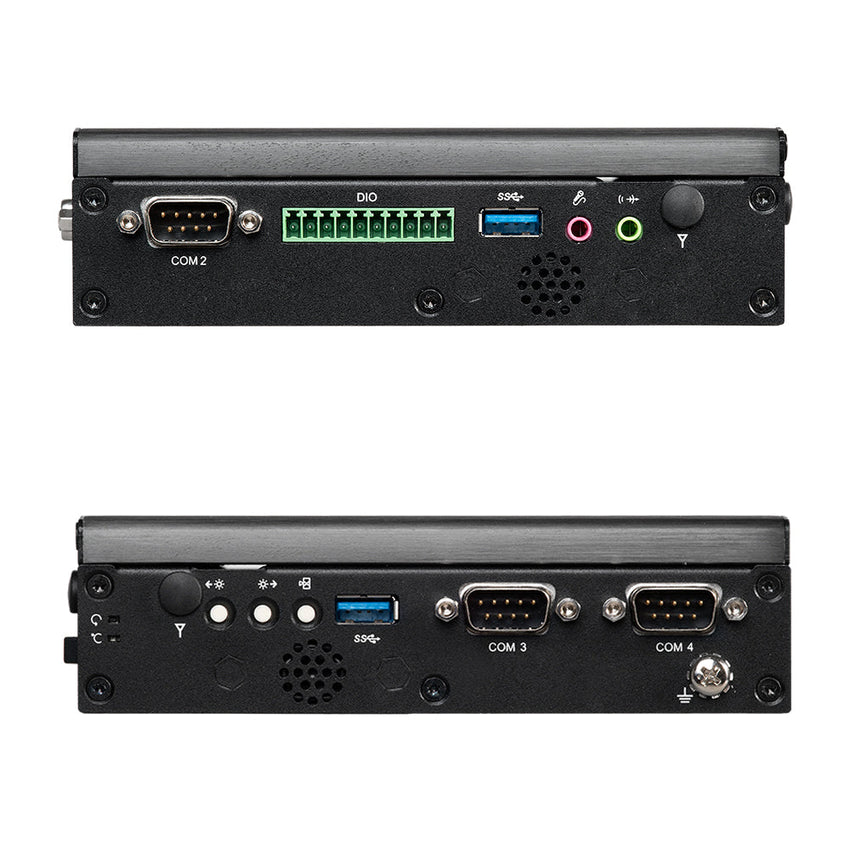

Left Side Panel I/O | 1 x COM (RS232/422/485, Support 5V/12V) 1 x 10-Pin Terminal Block 8x Isolated DIO (4x DI/4x DO) 1 x USB 3.0 2 x Audio Out 1 x Antenna Cutout |
Right Side Panel I/O | 1 x Antenna Cutout 3 x LCD Control (Increase/Decrease Brightness, LCD On/Off) 1 x USB 3.0 2 x COM (RS232/422/485, Support 5V/12V) |
Drive Support | 1 x 2.5" SATA Drive Bay 1 x Mini PCI-E slot with mSATA support |
Power Supply | 3-Pin Terminal Block DC-IN (9-48VDC) Optional 60W 12V AC-DC Power Adapter or 24V/5A 120W Reverse Power Input Protection Over Voltage Protection: 51 - 58V Protection Type: shut down operating voltage, re-power on at the preset level to recover Over Current Protection: 15A ESD Protectection: +/- 8kV (air), +/- 4kV (contact) Surge Protection: 2 kV |
Case Dimensions | 204.5 x 149 x 41.5mm 8.05" x 5.87" x 1.63" (in inches) |
Mounting | Wall / VESA / CDS / DIN Rail |
Environmental | Operating Temperature: -40°C to 70°C (-40°F to 158°F) Non-operating Temperature: -40°C to 85°C (-40°F to 185°F) Relative Humidity: 95% RH @ 70°C (non-condensing) Shock: Operating, 50 Grms, Half-sine 11 ms duration (w/ SSD) Vibration: Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD) |
Compliance | CE FCC Class A |
Warranty | 1-Year Warranty on Parts and Labor |
