MITXPC Intel Apollo Lake Embedded Mini PC w/ Dual Intel Gigabit LAN and Wide-Input Power Supply
Model Number	MPC-PD10AIMT
Motherboard	Mitac PD10AI MT
CPU	Intel Celeron N3350 1.10 - 2.4GHz 2C/4T 2MB Cache, 6W TDP
Chipset	SoC
Memory	2 x 204-Pin DDR3L SODIMM Maximum 8GB capacity Dual Channel Support 1866MHz (Minimum)
Video	Intel HD Graphics 500 200 - 650MHz DirectX 12, OpenGL 4.2, OpenCL 1.2, Intel Quick Sync Video
Storage Technology	1 x M.2 6Gbps (2242/2260/2280) 2 x SATA 6Gbps M.2 supports SATA only; SATA MUX with one SATA port
Connectivity	2 x Intel I211AT Gigabit Ethernet
Audio	Realtek ALC283 audio codec
Expansion Slots	1 x PCI Express x1 (2.0) [Inaccessible] 1 x M.2 PCIe x1 and USB

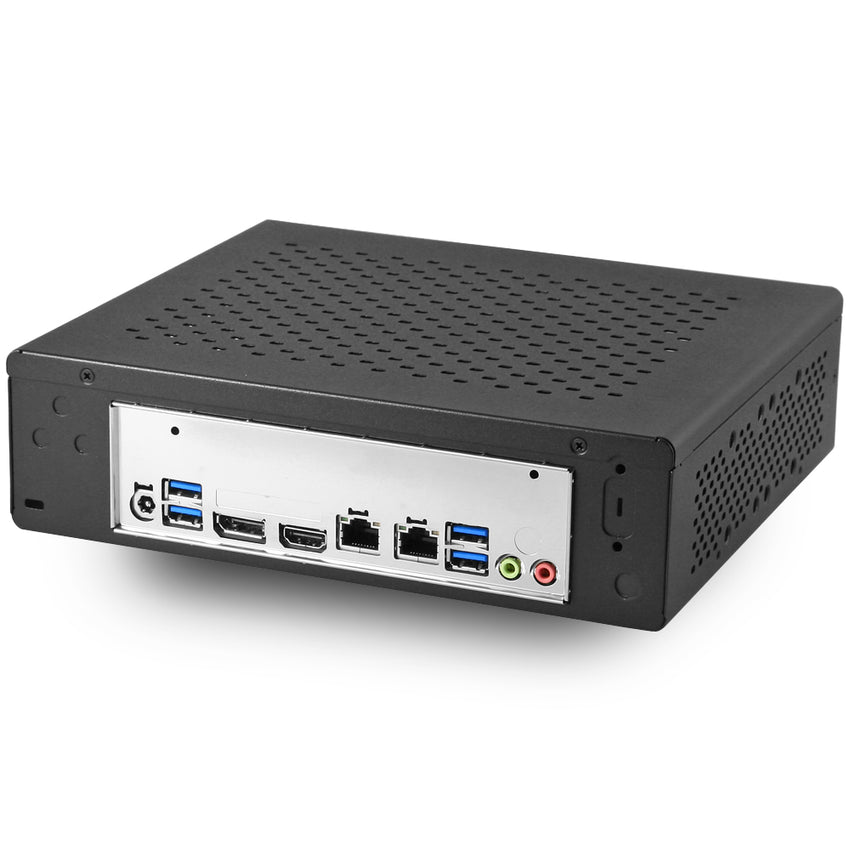

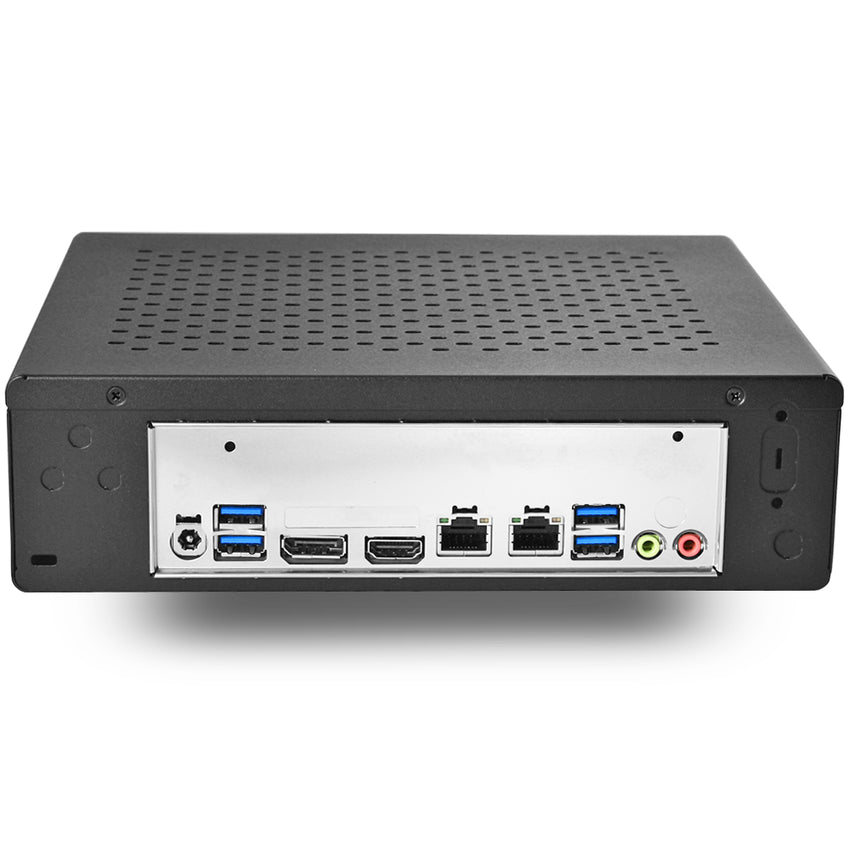

Rear Panel I/O	1 x DC-IN 4 x USB 3.0 1 x DisplayPort 1 x HDMI 2 x RJ45 Ethernet 2 x Audio I/O
Front Panel I/O	1 x Power Button with LED 2 x USB 2.0
Drive Support	2 x 2.5" SATA Drive 1 x M.2 Drive (SATA)

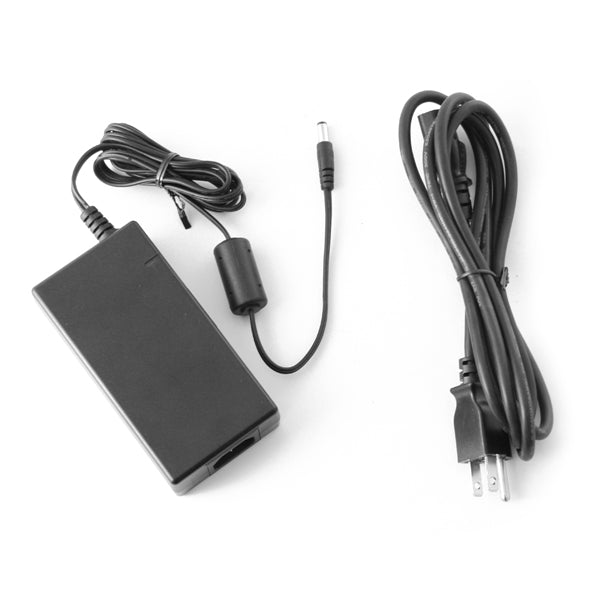

Power	Wide-input, 8V - 24V DC-IN Rear I/O DC Jack (2.5/5.5mm) or Internal 2x1 Power Connector 60W 12V Universal AC-DC Adapter
Case Dimensions	228.6mm x 195.6mm x 63.5mm 9" x 7.7" x 2.5"
Case Cooling	Supports 4 x 40mm Fans

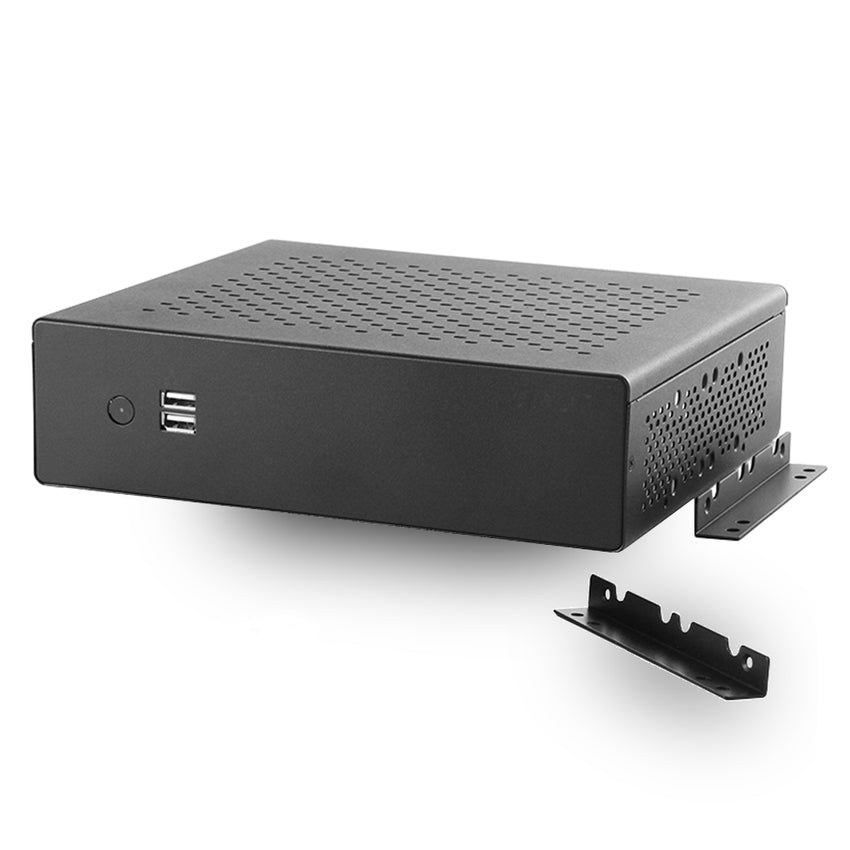

Mounting	Wall Mounting Brackets Optional Secure VESA Mounting Bracket (see options)
Warranty	1-Year Warranty on Parts and Labor
