| Manufacturer | MSI |
| Product ID | CUBI512M086B |
| Model Name | Cubi 5 12M |
| CPU |
Intel Core i3-1215U Processor 2 P-Cores / 4 E-Cores / 8 Threads 3.3 - 4.4 GHz 12 - 55W TDP, 10 MB Intel Smart Cache |
| Chipset |
SoC |
| Memory |
2 x DDR4 SODIMM slots Maximum 64GB Capacity 3200 MHz Dual Channel |
| Video |
Intel UHD Graphics 1.10 GHz 64 Execution Units HDMI Max Resolution: 4096x2160@60Hz DisplayPort Max Resolution: 4096x2160@60Hz Supports Triple Displays |
| Audio | HD Audio Codec |
| Storage Technology |
1 x 2.5" SATA Connector 1 x M.2 2280 slot (PCI-E 4.0 x4, SATA) |
| Connectivity |
1 x Realtek RTL8111H GbE LAN 1 x Realtek RTL8125BG-CG 2.5GbE LAN Intel AX211, WIFI 6E, Bluetooth 5.4 |
| Expansion Slots |
1 x M.2 2230 Slot (Occupied by WIFI) |

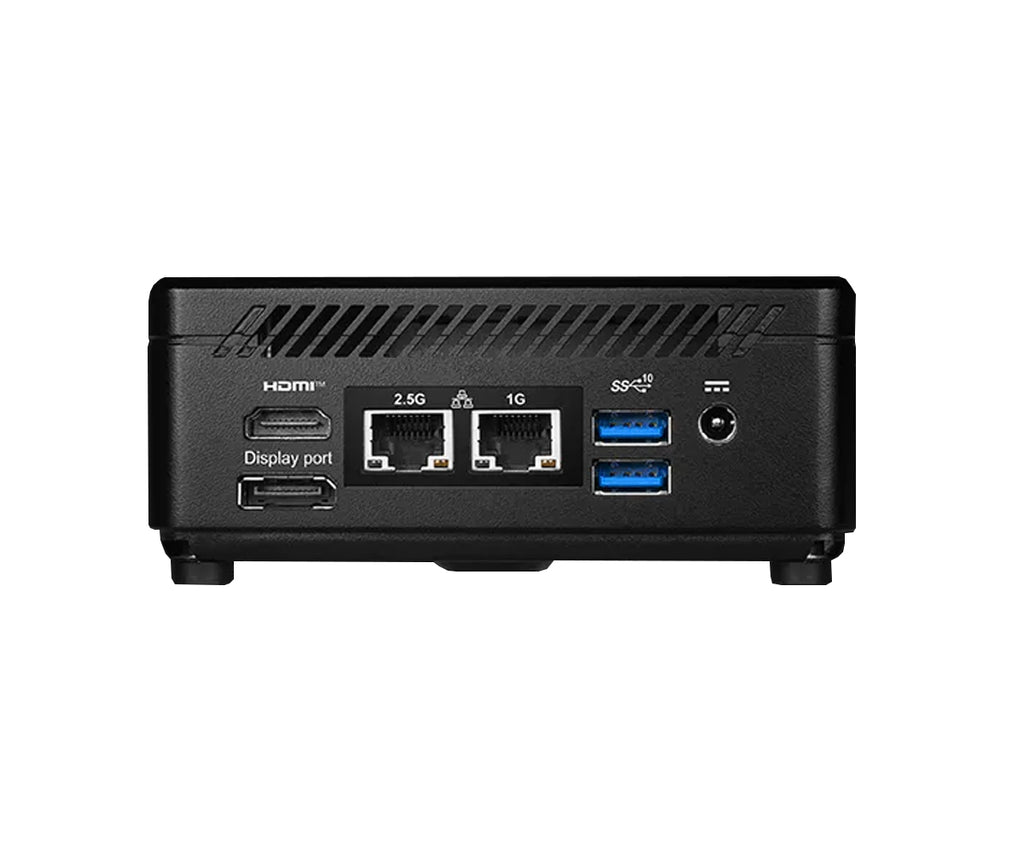

| Rear Panel I/O |
1 x HDMI 1 x DisplayPort 1 x RJ45 2.5GbE LAN 1 x RJ45 GbE LAN 2 x USB 3.1 1 x 19V DC-IN |

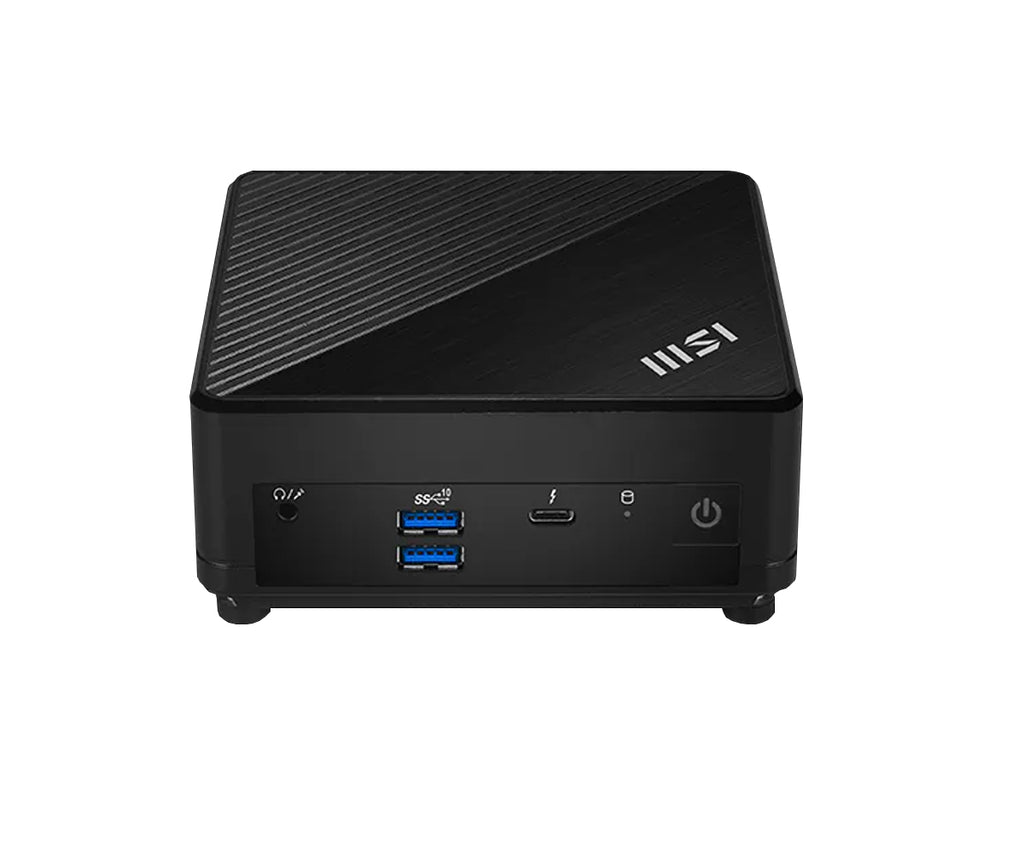

| Front Panel I/O |
1 x Audio I/O 2 x USB 3.1 1 x Thunderbolt 4 1 x Status LED (HDD) 1 x Power Button |
| Drive Support |
1 x 2.5" SATA Drive Bay 1 x M.2 2280 slot (PCI-E 4.0 x4) |
| OS Support |
Windows 11 Home WIndows 11 Pro |
| Power Supply |
19V DC-IN 65W AC Adapter 100-240Vac, 50/60Hz |
| Case Dimensions |
4.88" x 4.88" x 2.11" (in inches) |
| Mounting |
Optional VESA |
| Environmental |
Operating Temperature: 0°C to 35°C (32°F to 95°F) Non-Operating Temperature: -20°C to 60°C (-4°F to 140°F) Operating Humidity: 0% to 85% (non-condensing) Non-Operating Humidity: 0% to 90% (non-condensing) |
| Warranty | 3-Year Manufacturer's Advanced Replacement Warranty |
PRODUCT ID: CUBI512M086B
