| Manufacturer | Supermicro |
| Product ID | SYS-E403-9D-16C-FN13TP |
| CPU | Intel Xeon D-2183IT Processor 2.20 - 3.00 GHz 16 Cores / 32 Threads 100W TDP, 22MB Cache |
| Chipset | SoC |
| Memory | 4 x DDR4 DIMM slots Supports up to 512GB ECC LRDIMM Supports up to 256GB ECC RDIMM 2666/2400/2133MHz, Operating speed up to 2400MHz |
| Video | Aspeed AST2500 BMC |
| Storage Technology | 4 x SATA3 6.0Gb/s Supports RAID 0, 1, 5, 10 M.2: SATA or PCI-E 3.0 x4 Mini PCI-E with mSATA support |
| Connectivity | 2 x Intel X557 10GBase-T LAN 2 x SoC 10G SFP+ Ports 8 x Intel i350-AM4 GbE LAN 1 x Intel i210 GbE LAN 1 x Dedicated IPMI |
| Expansion Slots | 1 x PCI-E 3.0 x16 slots 1 x PCI-E 3.0 x16 slot or 2 x PCI-E x8 slots 1 x M.2 2230 slot (E Key) 1 x M.2 3042 slot (B Key) |

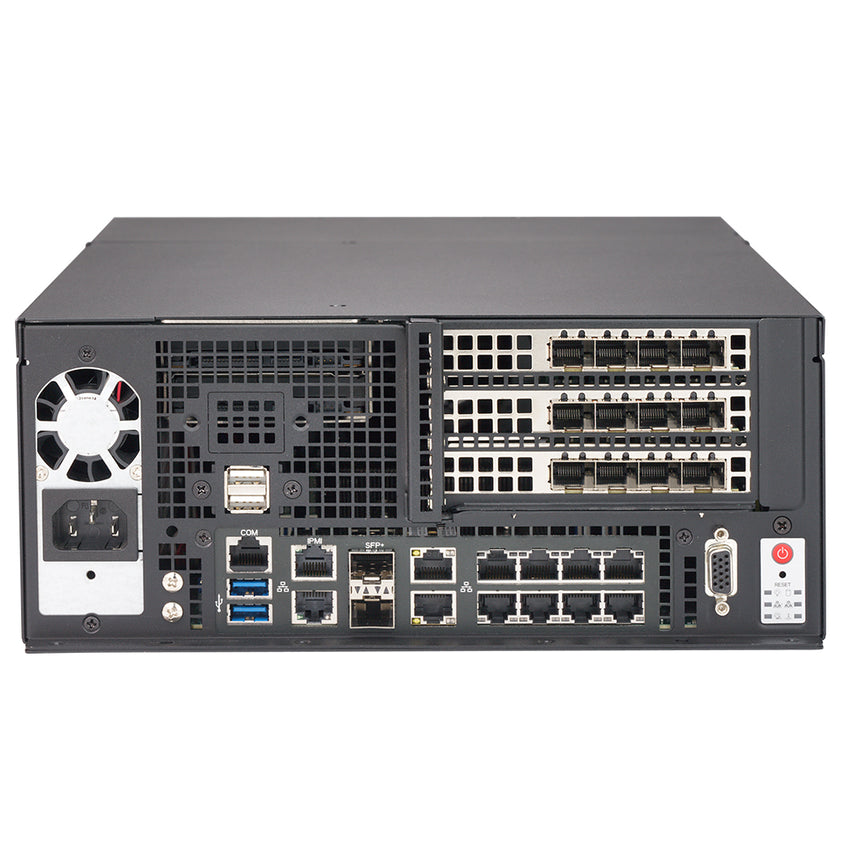

| Rear Panel I/O | 2 x USB 2.0 1 x RJ45 COM Port 2 x USB 3.0 2 x RJ45 10GBase-T LAN ,br> 2 x SFP+ 10G Ports 1 x RJ45 Dedicated IPMI 9 x RJ45 GbE LAN 1 x VGA Power Button 10 x Status LED (LAN) |
| Drive Support | 4 x 2.5" Drive Bays 1 x M.2 2280 slot (PCI-E 3.0 x4 or SATA) |
| Power Supply | 600W 80PLUS Gold Power Supply w/ PFC AC Input: 100-240V, 50-60Hz, 7.5-3.1A |
| Case Dimensions | 406 x 267 x 109mm 16" x 10.5" x 4.3" (in inches) Weight: 17 lbs, 7.7kg |

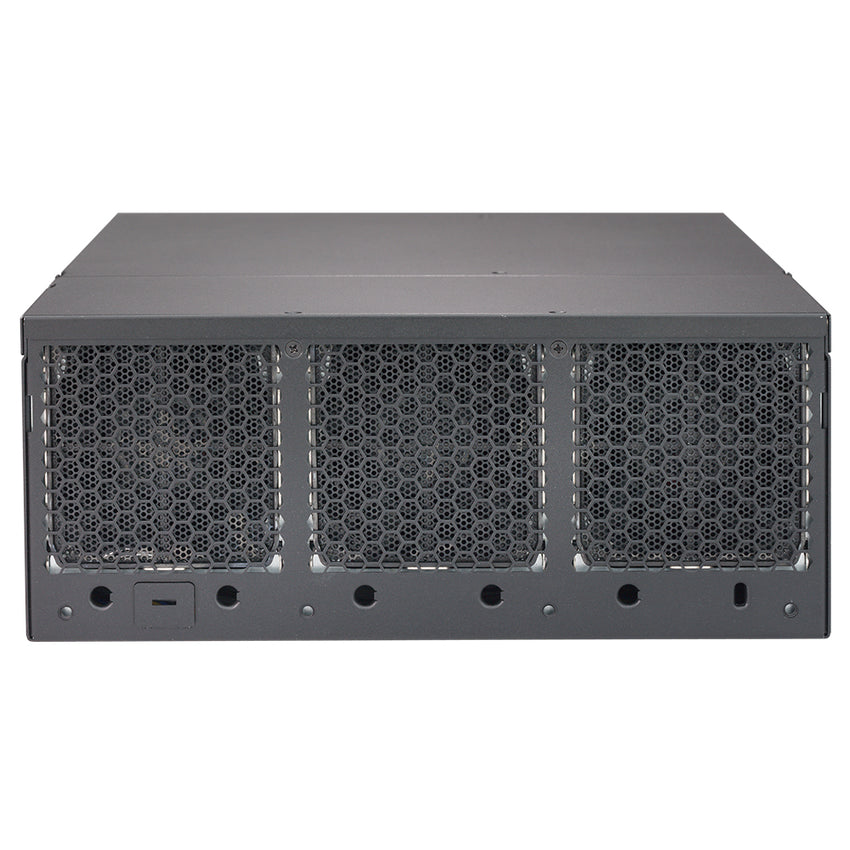

| Cooling | 3 x 80x80mm PWM Redundant Fans |
| Environmental | Operating Temperature: 0°C to 50°C (32deg;F to 122°F) Non-Operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidty: 8% - 90% (non-condensing) Non-Operating Humidity: 5% - 95% (non-condensing) |
| Compliance | RoHS Compliant |
| Warranty | 1-Year Manufacturer's Limited Warranty on Parts 3-Year Manufacturer's Limited Warranty on Labor |
PRODUCT ID: SYS-E403-9D-16C-FN13TP
