Manufacturer	GigaIPC
Product ID	QBiX-Pro-GLKA5005HD-A1
CPU	Intel Pentium Silver J5005 Processor 1.50 - 2.80 GHz 4 Cores / 4 Threads 10W TDP, 4MB Cache
Chipset	SoC
Memory	1 x DDR4 SODIMM slot Maximum 8GB capacity Supports 2400MHz Module
Video	Intel UHD Graphics 605 250 - 800 MHz HDMI Max Resolution: 4096x2160@60Hz VGA Max Resolution: 2560x1600@60Hz Supports Two Independent Displays
Audio	Realtek ALC269 HD Audio
Storage Technology	1 x SATA3 6Gb/s Port M.2: SATA3 6Gb/s
Connectivity	2 x Intel i211AT GbE LAN
Expansion Slots	1 x M.2 2230 Slot (E-Key, Supports WiFi/BT) 1 x Mini PCI-E slot (PCI-E x1 + USB 2.0) with SIM Slot
Front Panel I/O	1 x Antenna Cutout 1 x Audio Out 1 x HDMI 2 x COM Port (RS232/422/485 & RI/5V/12V) 1 x VGA 4 x USB 3.0 2 x RJ45 GbE LAN 1 x Remote Control Pin 1 x Power LED 1 x HDD LED 1 x Power Button
Side Panel I/O	1 x GPIO (8-bit) 1 x 3-Pin Terminal Block 9-36V DC-IN 2 x COM Port (RS232/422/485) 2 x Antenna Cutouts
Drive Support	1 x 2.5" SATA Drive Bay 1 x M.2 2280 slot (M-Key, SATA)
Power Supply	3-Pin Terminal Block 9-36V DC-IN Terminal Block Male Plug Included
Case Dimensions	160 x 118 x 62.6mm 6.3" x 4.6" x 2.5" (in inches)

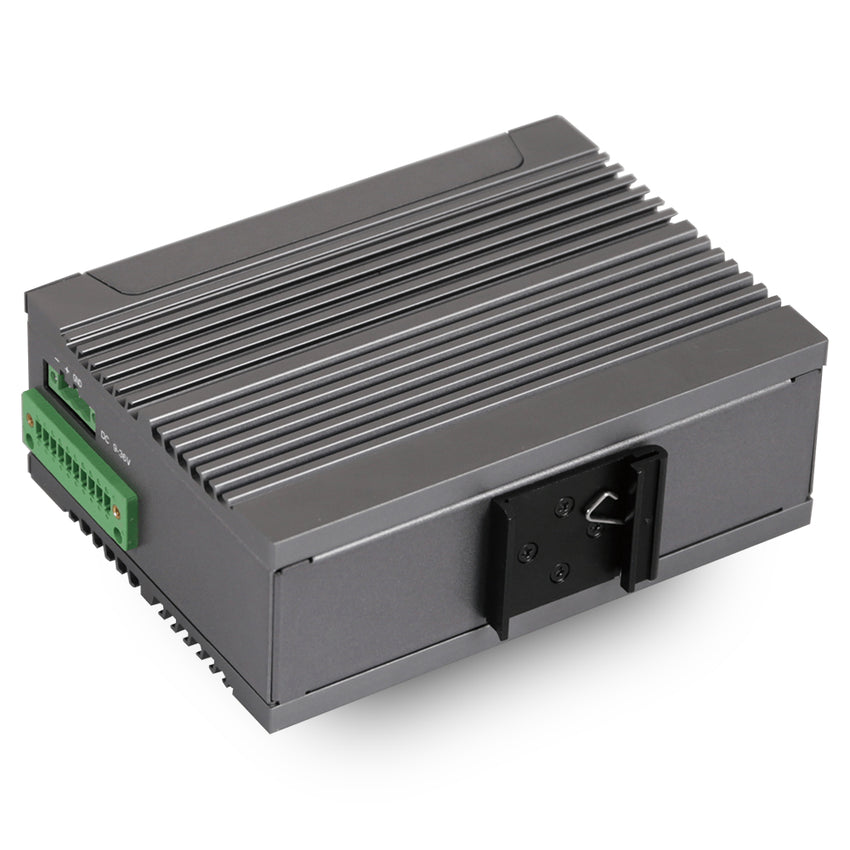

Mounting	DIN Rail Optional Wallmount Brackets
Environmental	Operating Temperature: 0°C to 50°C (32°F to 122°F) Non-Operating Temperature: -20°C to 70°C (-4°F to 158°F) Operating Humidity: 0% to 90% (non-condensing) Non-Operating Humidity: 0% to 95% (non-condensing) Note: Use wide temperature range memory and storage
Warranty	1-Year Manufacturer's Limited Warranty
