| Manufacturer | GigaIPC |
| Product ID | QBiX-Pro-EHLA6412H-A2 |
| CPU | Intel Celeron J6412 Processor 4 Cores / 4 Threads 2.0 - 2.6 GHz 10W TDP, 1.5MB L2 Cache |
| Chipset | SoC |
| Memory | 2 x DDR4 SODIMM slots Maximum 32GB Capacity 3200 MHz Supports Dual Channel |
| Video | Intel HD Graphics 400 - 800 MHz HDMI Max Resolution: 4096x2160@60Hz Supports 2 Independent Displays |
| Audio | Realtek Audio Codec |
| Storage Technology | 1 x SATA3 6.0 GB/s Ports 1 x M.2: SATA or NVMe |
| Connectivity | 2 x Intel I211AT GbE LAN |
| Expansion Slots | 1 x Mini PCI-E slot (Full Size) with SIM Slot |

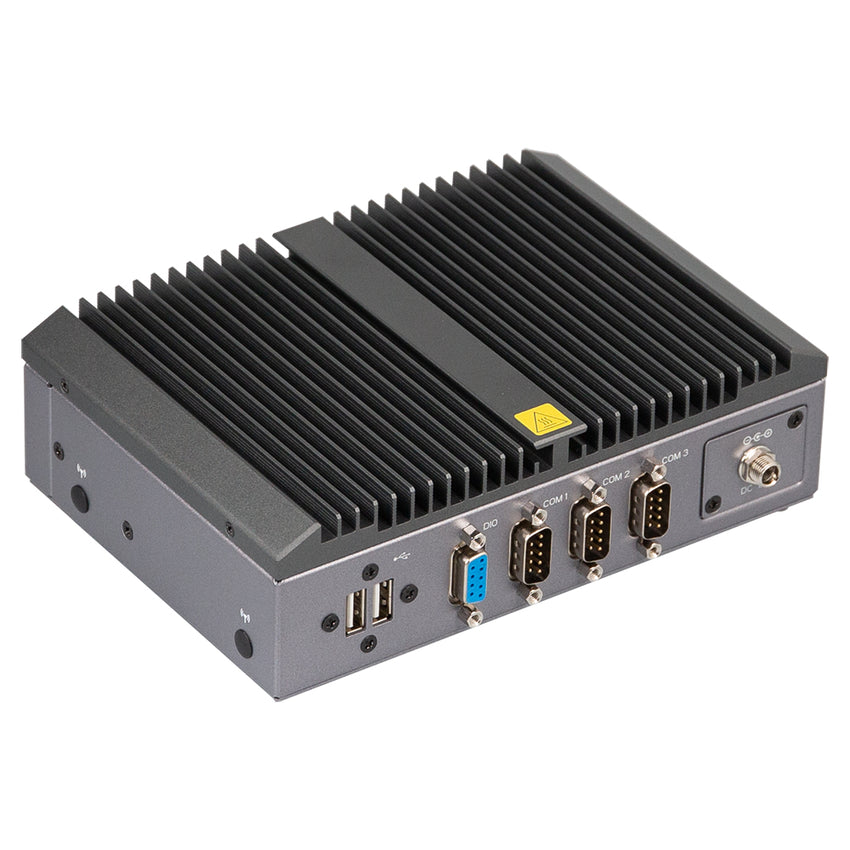

| Rear Panel I/O | 2 x USB 2.0 1 x Headphone Jack 1 x COM Port (RS-232/422/485 & RI/5V/12V) 1 x COM Port (RS-232/422/485) 1 x COM (RS232) 1 x 8-bit GPIO 1 x 9-36V DC-IN |

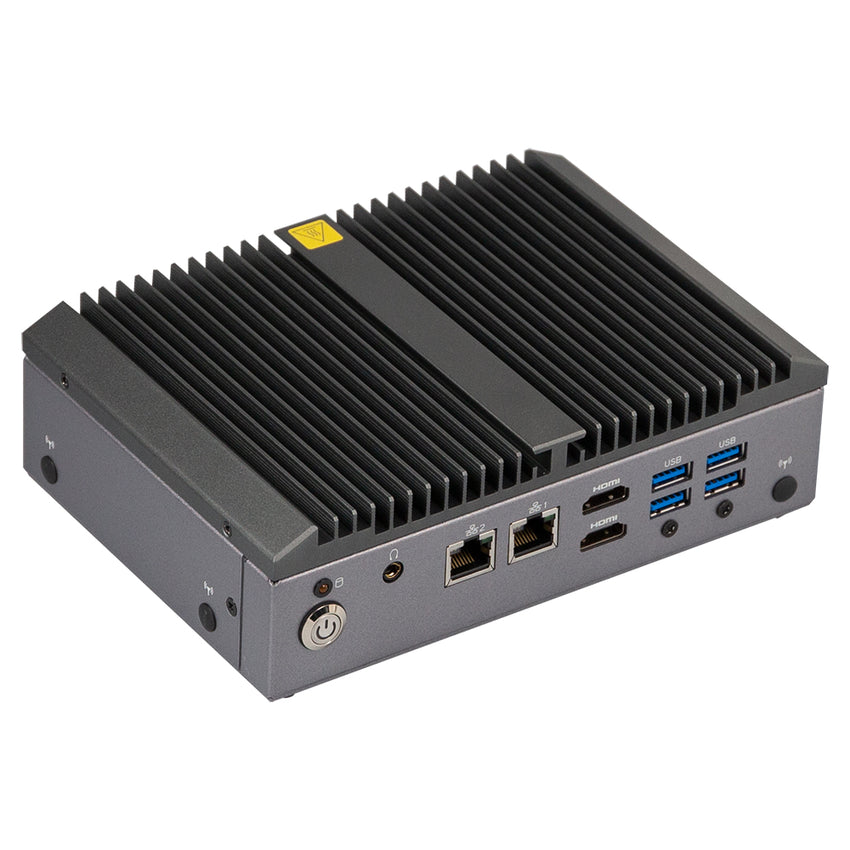

| Front Panel I/O | 1 x Power Button with LED 1 x Audio Jack 2 x RJ45 GbE LAN 2 x HDMI 4 x USB 3.2 (Gen1) 1 x Antenna Cutout |
| Side Panel I/O | 2 x Antenna Cutout |
| Drive Support | 1 x 2.5" Drive Bay 1 x M.2 2280 slot (SATA/NVMe) |
| Power Supply | 1 x 9-36V DC-IN 65W 19V AC/DC Adapter Included |
| Case Dimensions | 178 x 125 x 52.7mm 7.0" x 4.9" x 2.1" (in inches) |
| Environmental | Operating Temperature: 0°C to 50°C (32°F to 122°F) Non-operating Temperature: -20°C to 70°C (-4°F to 158°F) Operating Humidity: 0% to 90% (non-condensing) Non-operating Humidty: 0% to 95% (non-condensing) Operating Vibration: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280 Non-operating Vibration: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis Operating Shock: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: QBiX-Pro-EHLA6412H-A2
