Manufacturer	GigaIPC
Product ID	QBiX-JMB-CFLA310HG-B1
CPU	Intel Core i3-9100E Processor 4 Cores / 4 Threads 3.1 - 3.7 GHz 65W TDP, 6MB Cache
Chipset	Intel H310
Memory	2 x DDR4 SODIMM slots Maximum 32GB Capacity 2666/2400 MHz Supports Dual Channel
Video	Intel UHD Graphics 350 MHz - 1.05 GHz DisplayPort Max Resolution: 4096x2160@30Hz DVI-D Max Resolution: 1920x1080@60Hz VGA Max Resolution: 1920x1200@60Hz Supports 2 Independent Displays
Audio	Realtek Audio Codec
Storage Technology	3 x SATA Connectors 1 x M.2 slot (SATA)
Connectivity	1 x Intel I219V GbE LAN 3 x Intel I211AT GbE LAN
Expansion Slots	1 x Optional PCI-E 3.0 x16 slot (Requires Expansion Kit) 1 x Optional PCI-E 3.0 x4 slot (Requires Expansion Kit) Note: Max 250W and Max Length 293mm 1 x M.2 2230 slot 1 x Mini PCI-E Slot (Full Size, PCIe x1/USB2.0) with SIM Slot
Rear Panel I/O	N/A

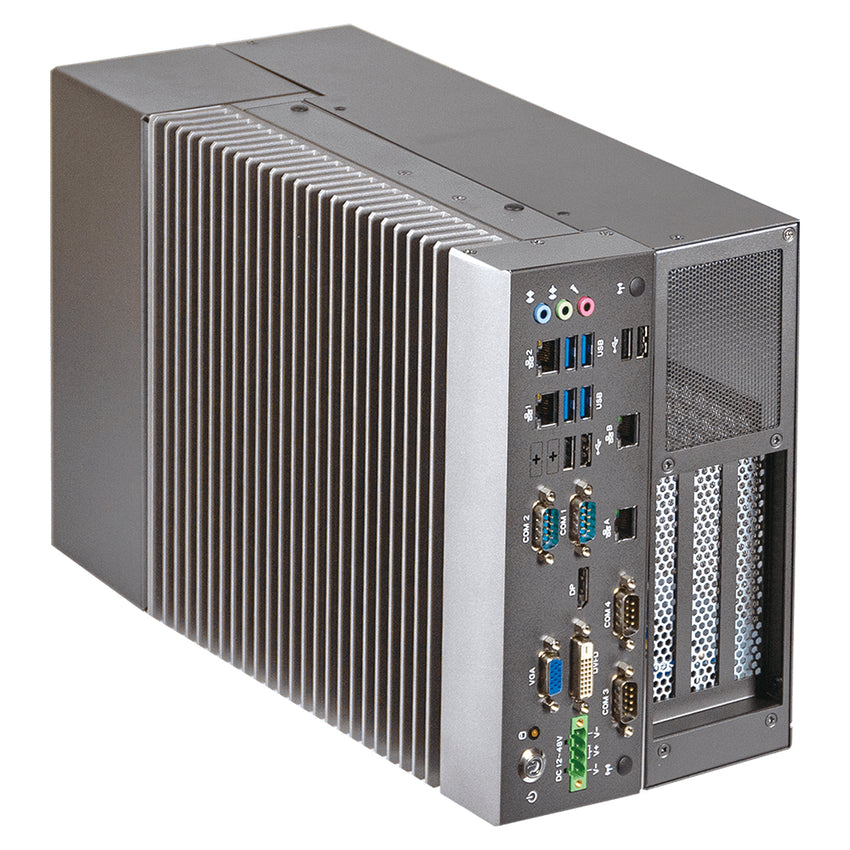

Front Panel I/O	1 x Power Button with LED 1 x Status LED (HDD) 1 x 4-Pin Terminal Block 24-36VDC DC-IN 2 x Antenna Cutout 1 x VGA 1 x DVI-D 2 x COM (RS232) 1 x DisplayPort 2 x COM (RS232/422/485 & RI/5V/12V) 4 x RJ45 GbE LAN 4 x USB 2.0 4 x USB 3.2 (Gen1) 3 x Audio I/O
Drive Support	3 x 2.5" Drive Bay 1 x M.2 2280 slot (SATA)
Power Supply	4-Pin Terminal Block 24-36V DC-IN
Case Dimensions	224 x 343 x 146mm 8.8" x 13.5" x 5.7" (in inches)
Environmental	Operating Temperature: -20°C to 60°C (-4°F to 140°F) Note: CPU TDP 35W, Add external GFX card Kits Non-operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 0% to 90% (non-condensing) Non-operating Humidty: 0% to 95% (non-condensing) Operating Vibration: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280 Non-operating Vibration: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis Operating Shock: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Warranty	1-Year Warranty on Parts and Labor
