| Product ID | MXO-G4125MX5 |
| CPU | Intel Celeron J4125 Processor 2.0 - 2.7 GHz 4 Cores / 4 Threads 10W TDP, 4MB Cache |
| Chipset | SoC |
| Memory | Includes 8GB DDR4 Memory 2 x DDR4 SODIMM slots Maximum 16GB Capacity 2666/2400/2133 MHz Dual Channel |
| Video | Intel UHD Graphics 605 250 - 750 MHz HDMI Max Resolution: 4096x2160@30Hz Mini DisplayPort Max Resolution: 4096x2160@60Hz USB Type-C Max Resolution: 4096x2160@60Hz (DP or HDMI) |
| Audio | Realtek ALC662 6-Channel Audio (5.1) 1 x 3.5mm Analog Stereo Audio Jack (Supports Optical S/PDIF Converter) |
| Storage Technology | M.2 2280 slot: SATA or PCI-E x4 NVMe |
| Connectivity | 1 x Realtek GbE LAN Supports Wake On LAN, PXE 802.11ac/n Dual-Band WIFI Bluetooth 4.0 |
| Expansion Slots | 1 x M.2 2230 slot (Occupied by WIFI) |

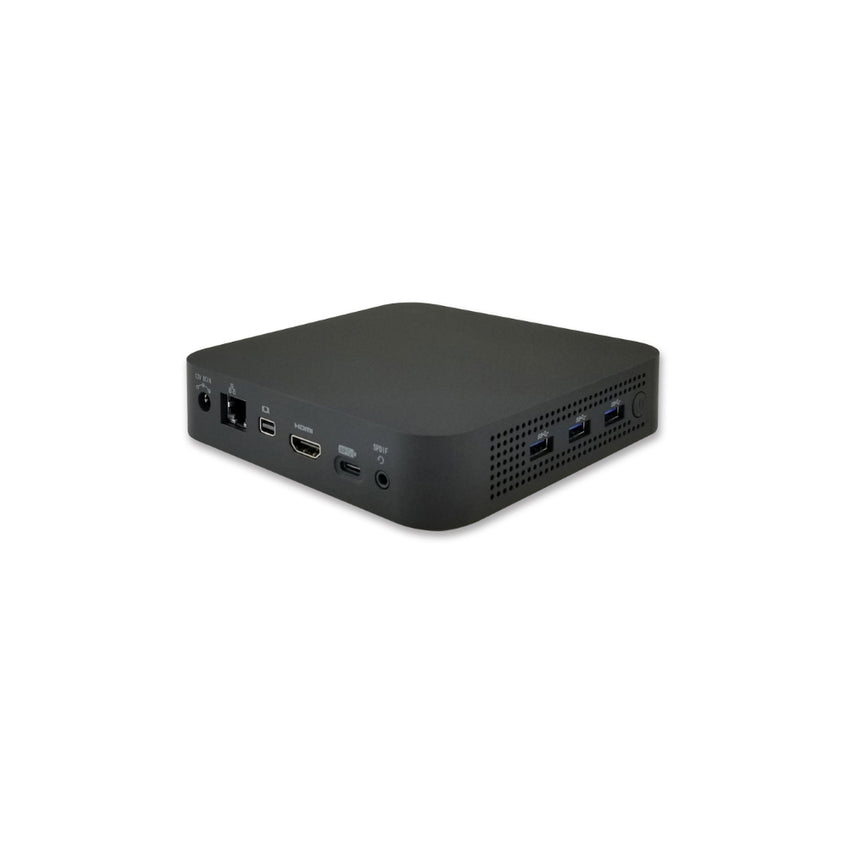

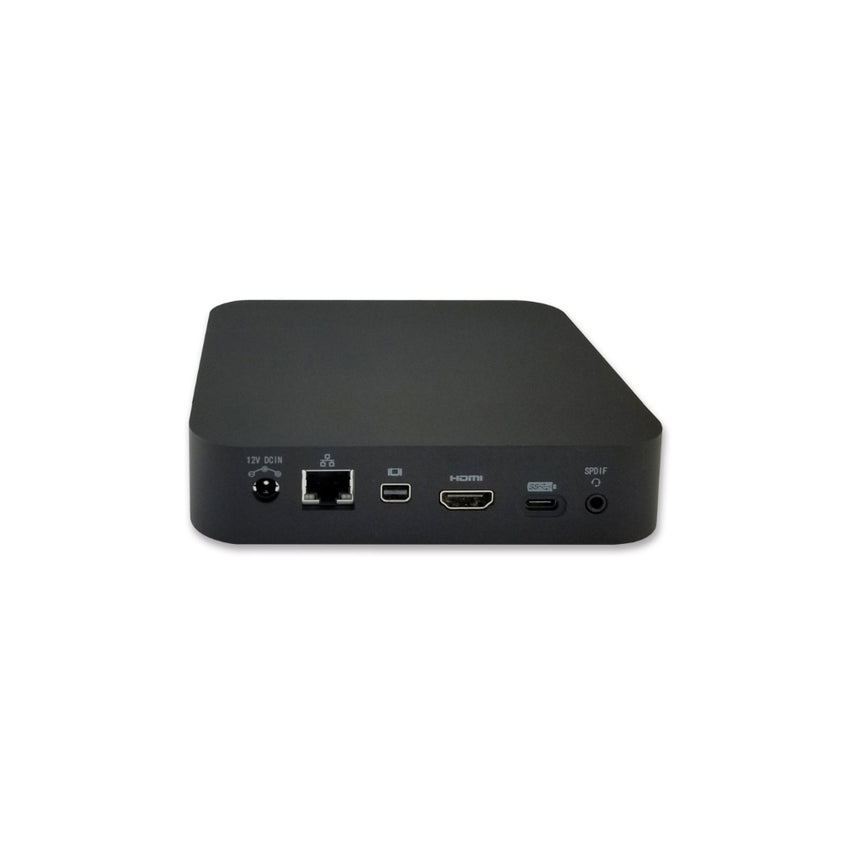

| Rear Panel I/O | 1 x 12V DC-IN 1 x RJ45 GbE LAN 1 x Mini DisplayPort 1 x HDMI 1 x USB 3.0 Type-C (Supports Graphics, LAN, or KB/Mouse) 1 x 3.5mm Audio Out (Supports S/PDIF Converter) |

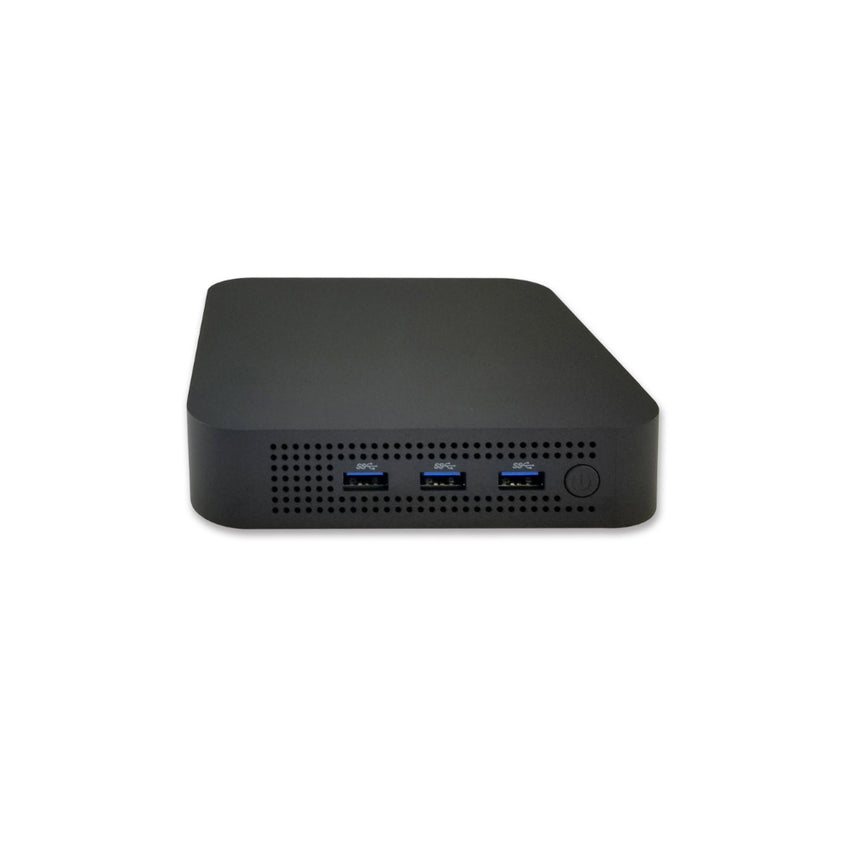

| Side Panel I/O | 3 x USB 3.0 1 x Power Button with LED |
| Drive Support | Includes 250GB M.2 Drive 1 x M.2 2280 slot (Occupied) |
| OS Support | Windows 10, IoT Linux |
| Power Supply | 12V DC-IN 36W 12V AC/DC Adapter |
| Case Dimensions | 139.7 x 139.7 x 31.75mm 5.5" x 5.5" x 1.25" (in inches) |
| Mounting | N/A |
| Environmental | Operating Temperature: 0°C to 55°C (32°F to 131°F) Non-operating Temperature: -20°C to 70°C (-4°F to 158°F) Operating Vibration: 9.8 m/s2(1.0G) 5 to 500Hz Non operating Vibration: 49 m/s2(5.0G) 15 to 500Hz Operating Shock: 3,920 m/s2 (400G) 2ms Non-Operating Shock: 8,820 m/s2 (900G) 1ms Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Compliance | RoHS |
| Warranty | 1-Year Warranty on Parts and Labor |

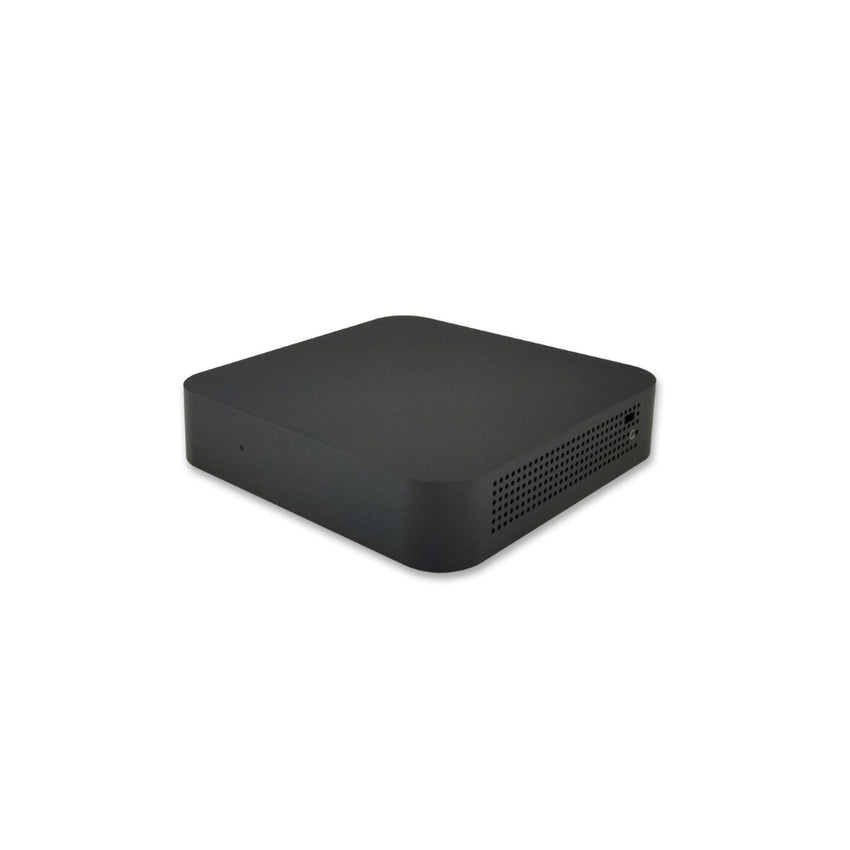

PRODUCT ID: MXO-G4125MX5
