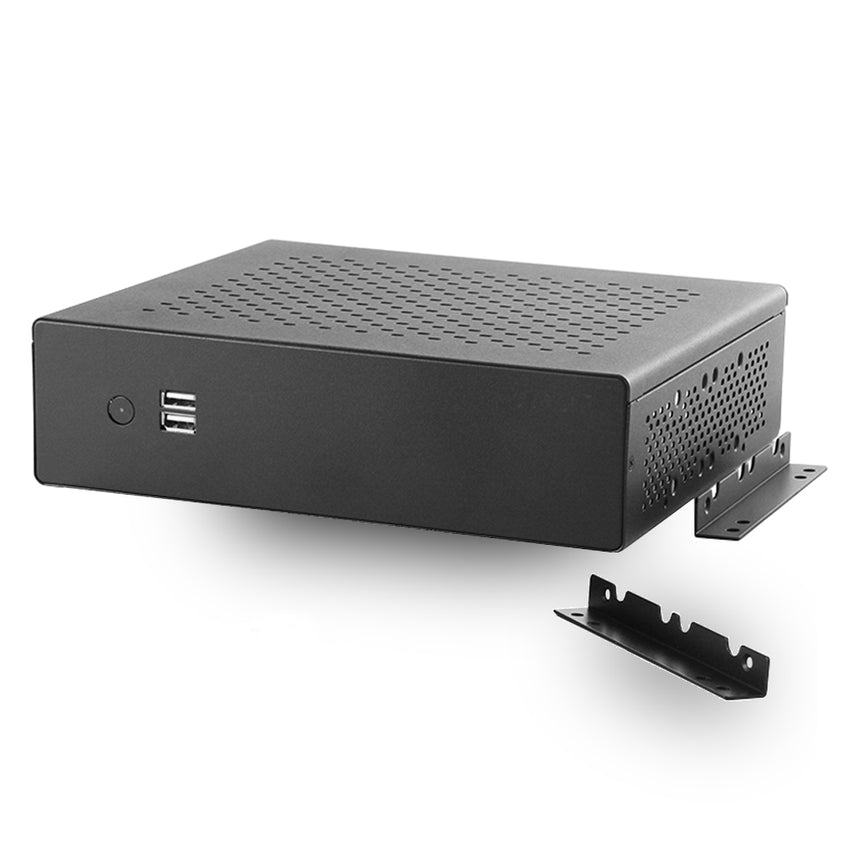

MITXPC MPC-NF594MX500 7th Gen Core Mini PC, Dual Intel LAN, vPro, TPM

Product ID	MPC-NF594MX500
CPU	6th / 7th Gen Intel Core i7 / i5 / i3 / Pentium Processor Socket LGA 1151 (Formerly Skylake and Kaby Lake)
Chipset	Intel Q170 Onboard TPM 2.0
Memory	2 x SODIMM Slots DDR4 2133MHz Minimum 32GB Maximum Dual Channel
Video	Intel HD Graphics 630 (CPU dependent) 350MHz - 1.1GHz 4K @ 60Hz Support (DP) 4K @ 24Hz Support (HDMI) Supports 3 independent displays
Storage Technology	4 x SATA 6Gbps RAID 0, 1, 5, 10
Connectivity	1 x Intel I219-LM PHY Gigabit LAN (iAMT 11.0) 1 x Intel I211-AT PCI-E Gigabit LAN
Management	iAMT 11.0 & vPro TPM 2.0
Expansion	1 x Full-size mSATA/Mini PCIe 1 x Half-size Mini PCIe 1 x PCIe x16 (3.0)* *inaccessible in this chassis.

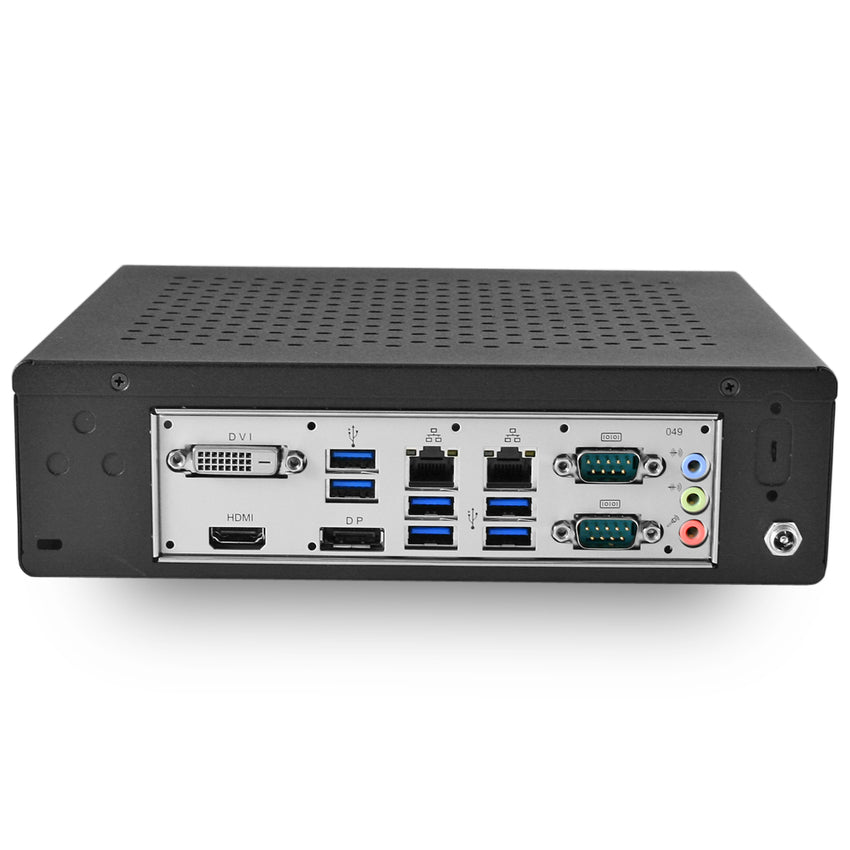

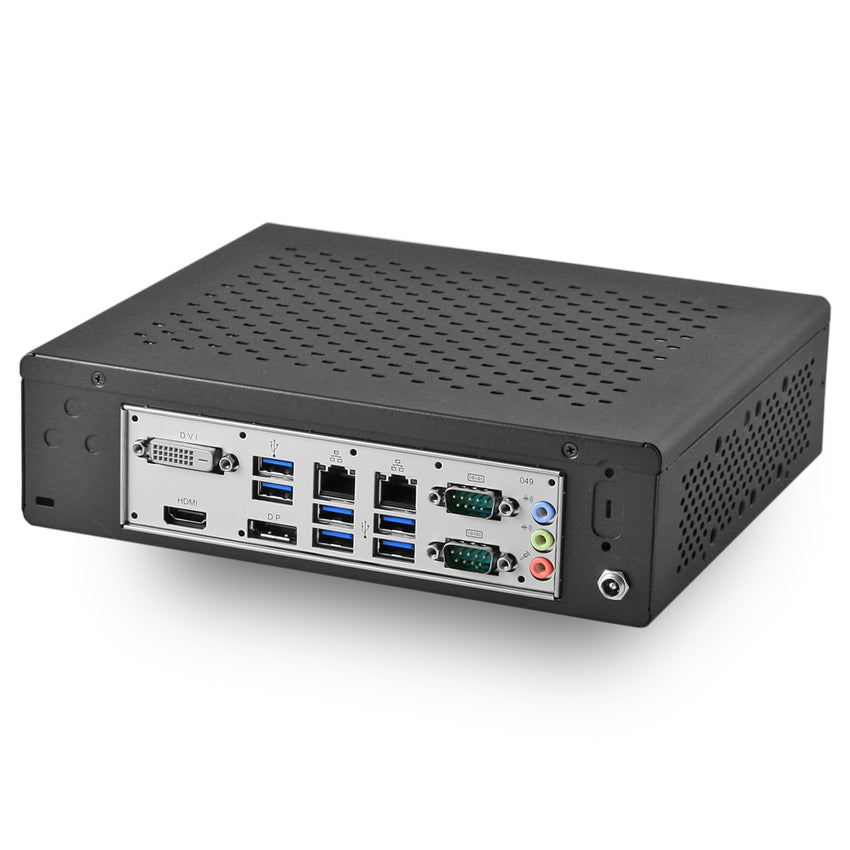

Rear I/O	1 x DVI-D 1 x HDMI 6 x USB 3.0 1 x DisplayPort 2 x RJ45 1 x Serial (RS232) 1 x Serial (RS232/422/485) 3 x Audio I/O
Front I/O	1 x Power Button w/ LED 2 x USB 2.0
Drive Support	2 x 2.5" SATA Drives 1 x mSATA SSD

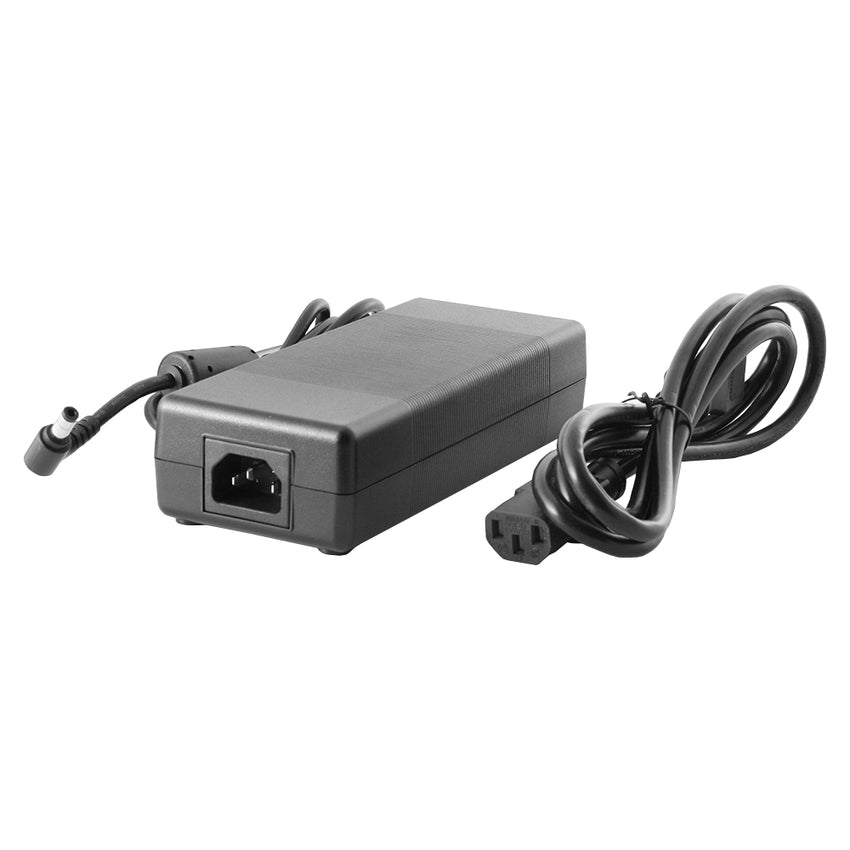

Power Supply	120W 12V DC-DC Power Board (Internal) 120W 12V Universal 110-240V AC-DC Adapter (External)
Case Dimensions	228.6mm x 195.6mm x 63.5mm 9" x 7.7" x 2.5"
Case Cooling	2 x 40mm (see options)
Mounting	Wall Mounting Brackets Optional Secure VESA Mounting Bracket (see options)
Warranty	1-Year Warranty on Parts and Labor
