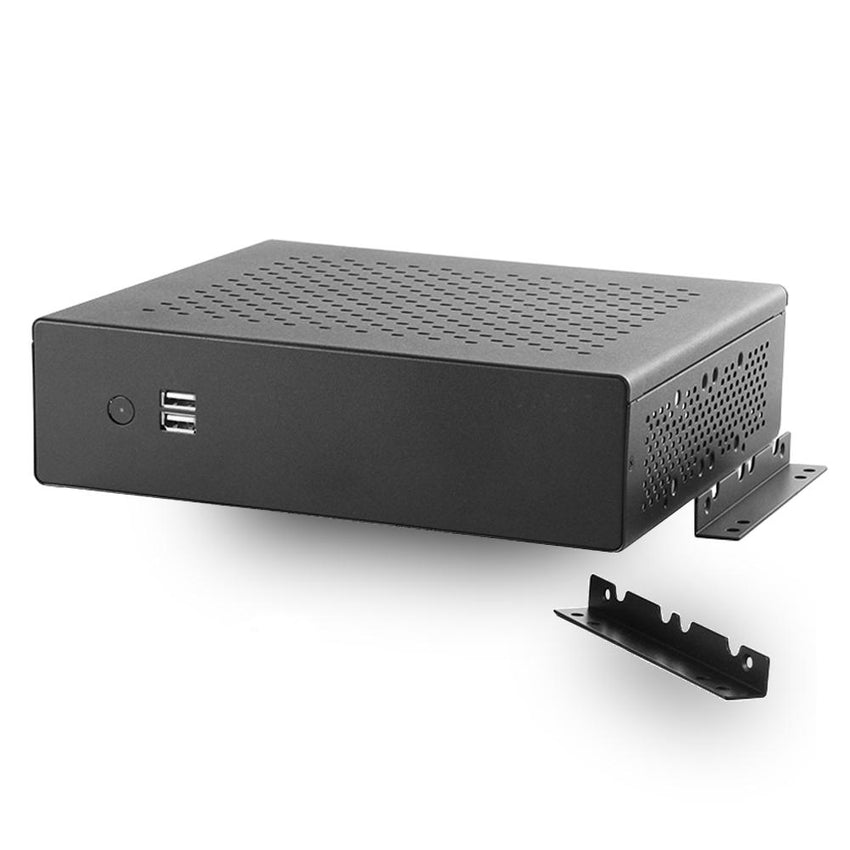

Product ID	MES-1211-L
CPU	Supports Intel 8th/9th Gen Processors (Coffee Lake-S) Socket LGA 1151 Supports up to 65W TDP Performance of CPUs over 65W will be limited due to power design Supports Intel vPro with Compatible CPU
Chipset	Intel Q370
Memory	2 x DDR4 SODIMM slots Dual Channel 2666 MHz Maximum 64GB Capacity for Core i9/i7/i5 CPUs Maximum 32GB Capacity for Core i3/Pentium/Celeron CPUs Non-ECC, Unbuffered Memory Only
Video	Intel HD Graphics (CPU Dependent) DisplayPort Max Resolution: 4096x2304@60Hz VGA Max Resolution: 1920x1200@60Hz LVDS Max Resolution: 1920x1200@60Hz Supports Triple Displays
Audio	Realtek ALC887 HD Audio
Storage Technology	4 x SATA3 6.0 GB/s Ports 1 x M.2 2280/2260/2242 slot (PCIe x4 or SATA)
Connectivity	1 x Intel I219LM GbE LAN Supports AMT/vPro with Compatible CPU 1 x Intel I210 GbE LAN
Expansion Slots	1 x PCI-E 3.0 x16 slot (inaccessible) 1 x Mini PCI-E slot (Full/Half size, PCIe x1 and USB 2.0) 1 x M.2 2230 slot (PCIe x1, USB 2.0, and CNVI for Wireless, E Key)

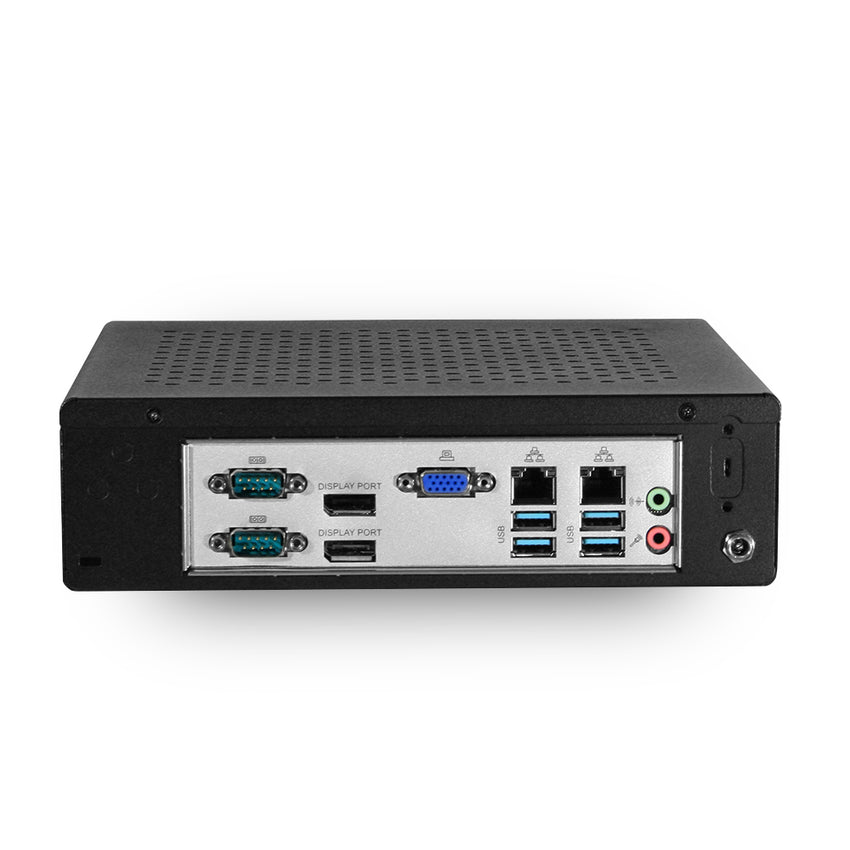

Rear Panel I/O	2 x COM Ports (RS232/422/485) 2 x DisplayPorts 1 x VGA 2 x RJ45 GbE LAN 4 x USB 3.1 (Gen1) 2 x Audio I/O 1 x 12V DC-IN
Front Panel I/O	2 x USB 2.0 1 x Power Button with LED
Drive Support	1 x M.2 2280/2260/2242 slot (PCIe x4 or SATA) Note: 2.5" Drives not recommended due to heat constraints
Cooling	Supports 2 x 40x40mm Case Fans
Power Supply	12V DC-IN 120W 12V AC-DC Adapter
Case Dimensions	228.6mm x 195.6mm x 63.5mm 9" x 7.7" x 2.5" (in inches)
Mounting	Wall Mounting Brackets Optional Secure VESA Mounting Bracket (see options)
Warranty	1-Year Warranty on Parts and Labor
