Manufacturer	Jetway
Part Number	HBFDF835-8365-B
CPU	Intel Core i5-83365UE Processor 1.60 - 4.10 GHz 4 Cores / 8 Threads 25W TDP, 6MB Intel SmartCache Supports vPro
Chipset	SoC
Memory	2 x DDR4 SODIMM Slots Maximum 32GB Capacity 2400 MHz
Video	Intel UHD Graphics 620 300 MHz - 1.05 GHz DisplayPort Max Resolution: 4096x2304@60Hz HDMI Max Resolution: 4096x2160@30Hz eDP Max Resolution: 4096x2304@60Hz LVDS Max Resolution: 1920x1080@60Hz Supports Triple Display
Audio	Realtek ALC662 HD Audio Codec
Storage Technology	1 x SATA3 6Gb/s Connector 1 x M.2 2242/2260/2280 slot (SATA & PCIE 3.0 x4 NVME)
Connectivity	1 x Intel i219LM PHY Gigabit LAN 1 x Intel i211AT PCI-E Gigabit LAN
Expansion Slots	1 x M.2 2230 slot (E-Key, CNVi for WIFI)

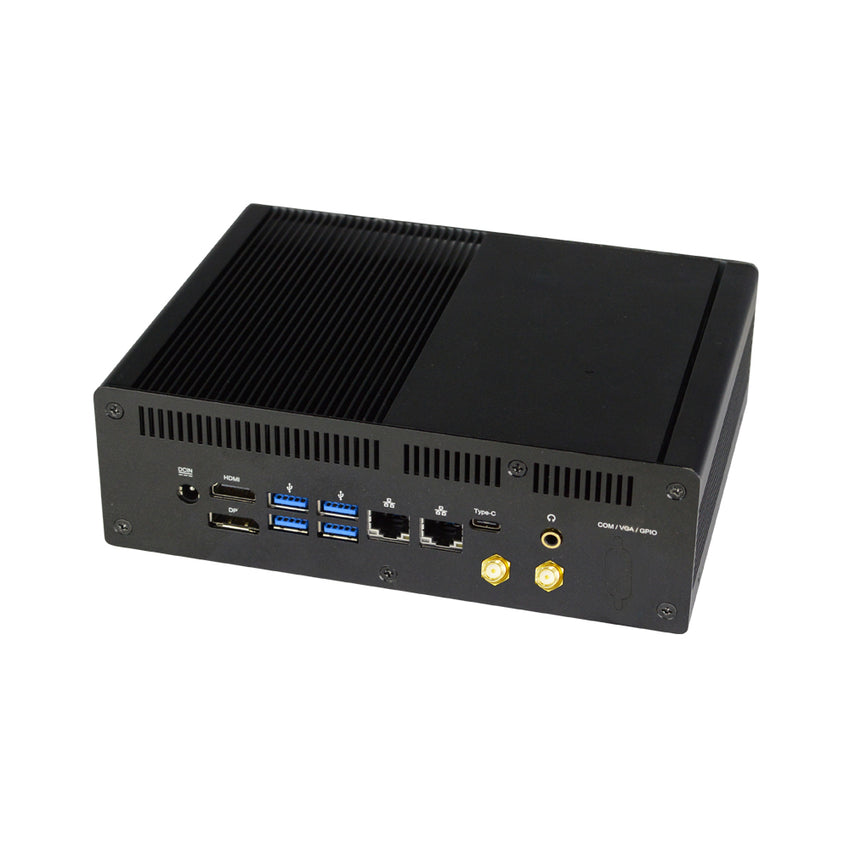

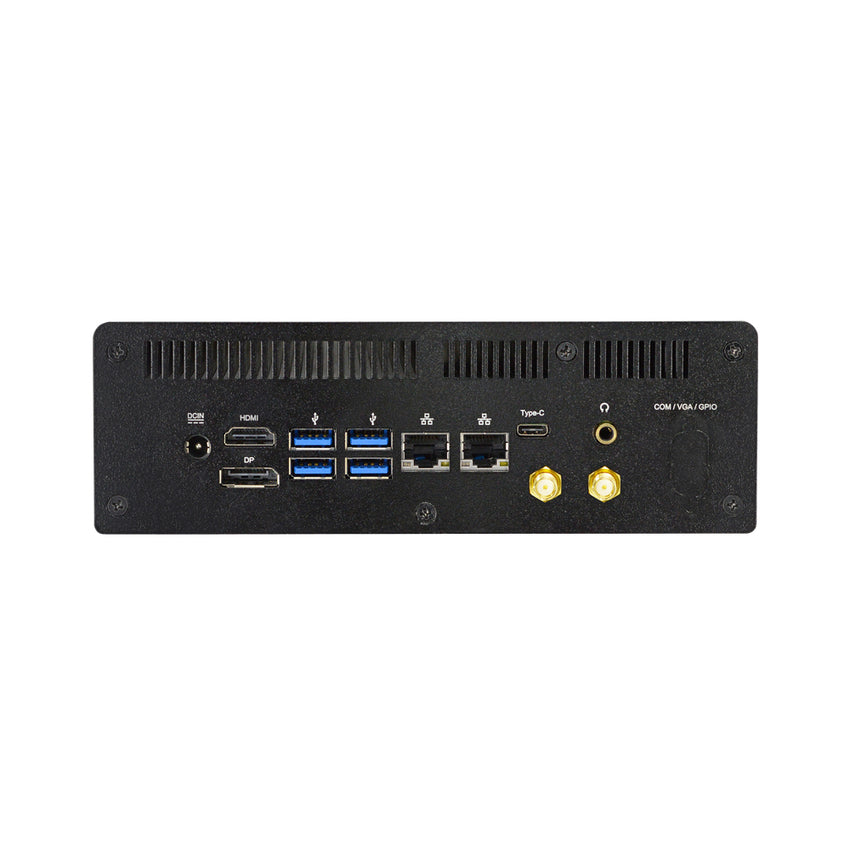

Rear I/O	1 x 9-24V DC-IN 1 x HDMI 1 x DisplayPort 4 x USB 3.1 (Gen2) Type-A 2 x RJ45 GbE LAN 1 x USB 3.1 (Gen2) Type-C 1 x 3.5mm Audio Out 2 x Antenna Cutout 1 x Optional DB9 Cutout

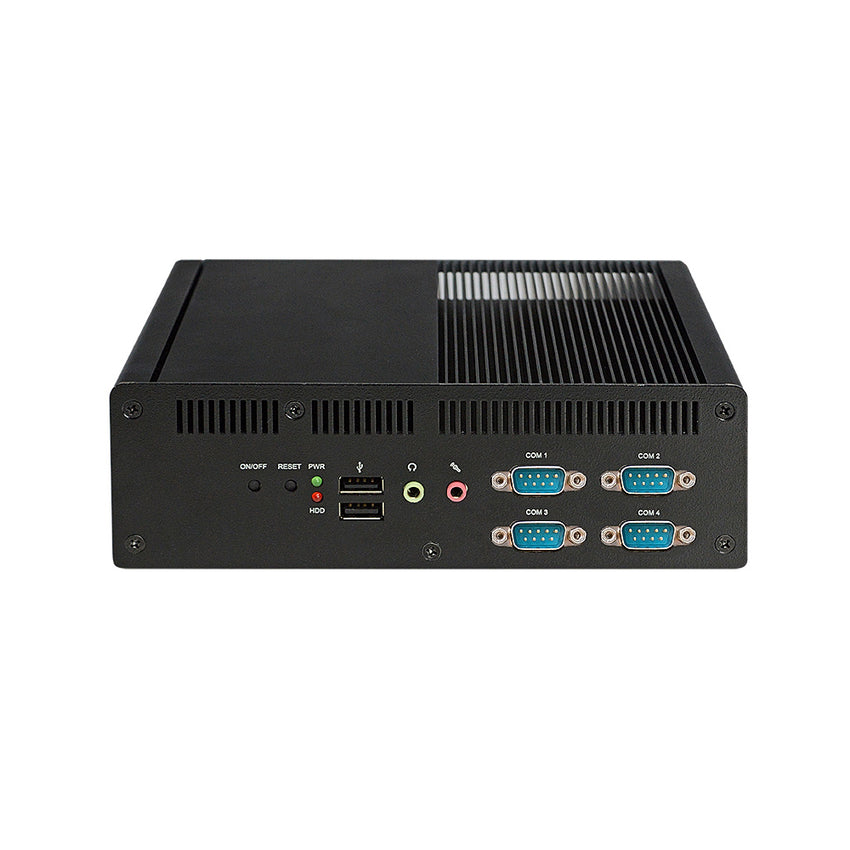

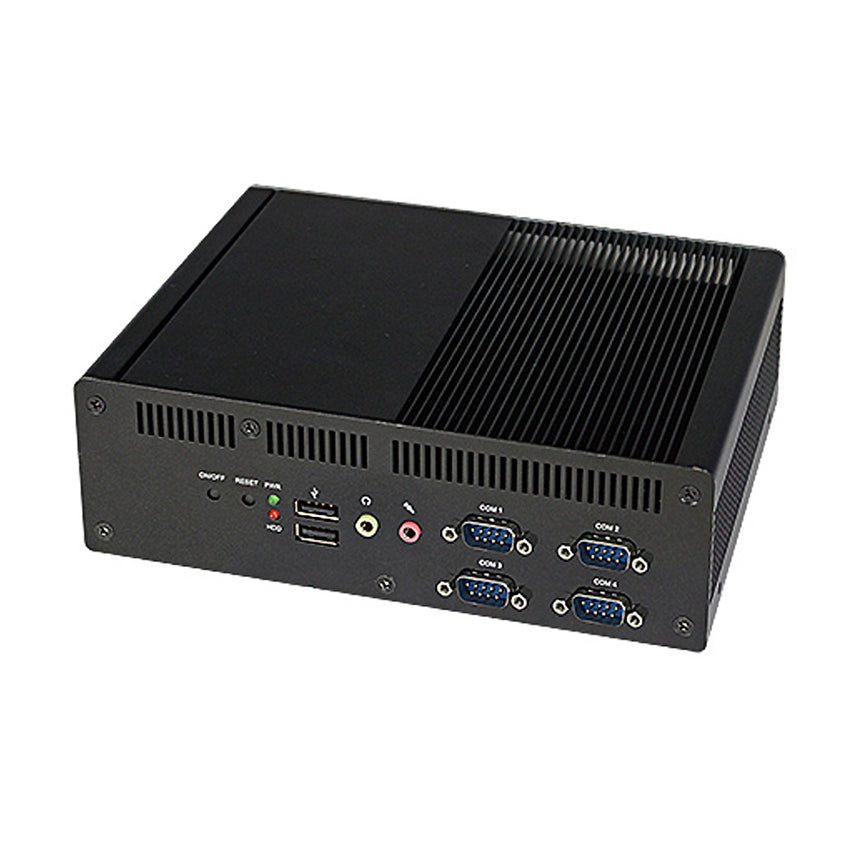

Front I/O	1 x Power Button 1 x Reset Button 2 x Status LED (Power, HDD) 2 x USB 2.0 2 x Audio I/O 1 x Serial COM (RS232/422/485) 3 x Serial COM (RS232)
Drive Support	1 x 2.5" Drive Bay 1 x M.2 2280 slot (M Key, SATA/PCI-E 3.0 x4)
Power Supply	9V-24V 2.5mm Diameter DC Power Jack 60W 12V AC-DC Adapter
Dimensions	193 x 142.4 x 53mm 7.6" x 5.6" x 2.1" (in inches, approximate)
Mounting	Wallmount DIN Rail
Environmental	Operating Temperature with M.2 SSD: 0°C to 60°C (32°F to 140°F) Operating Temperature with 2.5" SSD: 0°C to 50°C (32°F to 122°F) Non-Operating Temperature: -20°C to 70°C (-4°F to 158°F)
Compliance	CE, FCC, LVD, RoHS
Warranty	1-Year Manufacturer's Limited Warranty
