| Manufacturer | Jetway |
| Product ID | HBFDF13-6412-B |
| Model Name | FDF13 |
| CPU | Intel Celeron J6412 Processor 4 Cores / 4 Threads 2.0 - 2.6 GHz 10W TDP, 1.5MB L2 Cache |
| Chipset | SoC |
| Memory | 1 x DDR4 SODIMM slot 3200 MHz Maximum 32GB Capacity |
| Video | Intel UHD Graphics 400 - 800 MHz 16 Execution Units HDMI Max Resolution: 4096x2160@60Hz |
| Audio | Intel Display Audio (via HDMI) |
| Storage Technology | 1 x SATA3 6Gb/s Connector 1 x M.2 2280/2242 slot (PCI-E 3.0 x2/SATA, M Key) |
| Connectivity | 4 x Intel I225V 2.5GbE LAN |
| Expansion Slots | 1 x M.2 2230 slot (PCIe 3.0 x1/USB 2.0, E Key) 1 x M.2 3042/3052 slot (USB 3.2 for 3G/4G Modem) 1 x SIM slot |

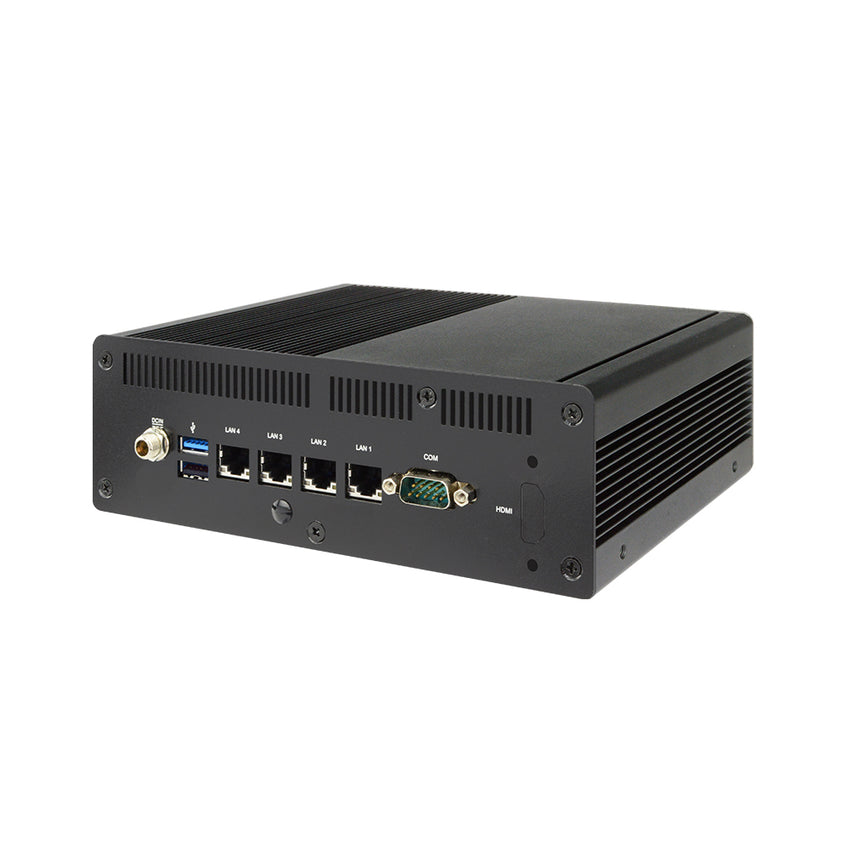

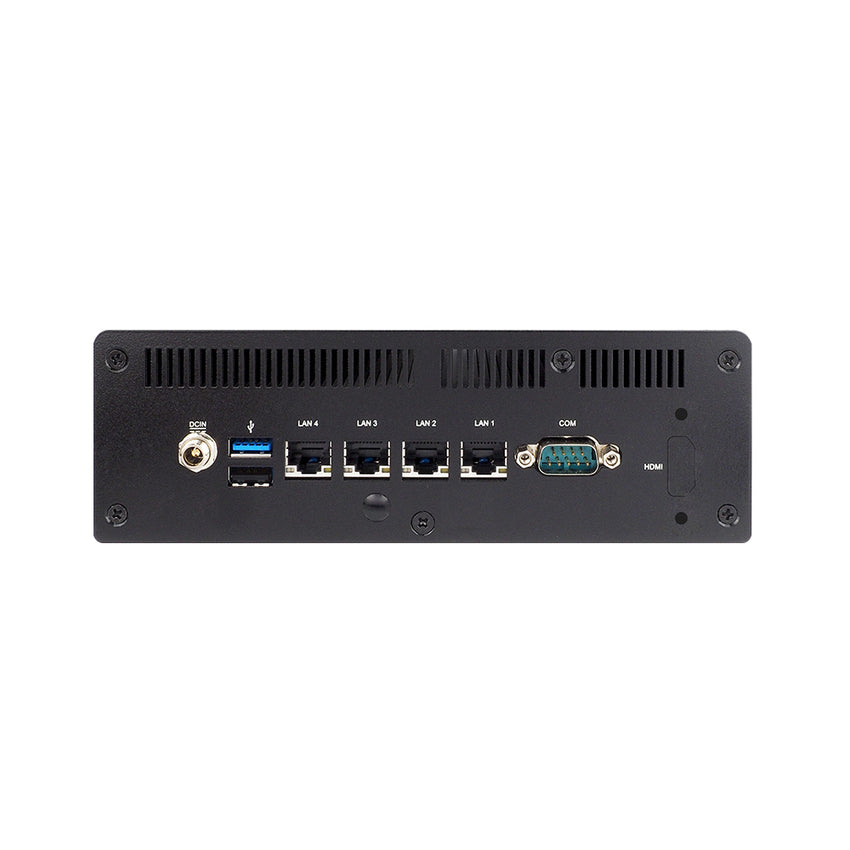

| Rear Panel I/O | 1 x 12V DC-IN 1 x USB 3.0 1 x USB 2.0 4 x RJ45 2.5GbE LAN 1 x COM (RS232/422/485) 1 x HDMI Cutout |

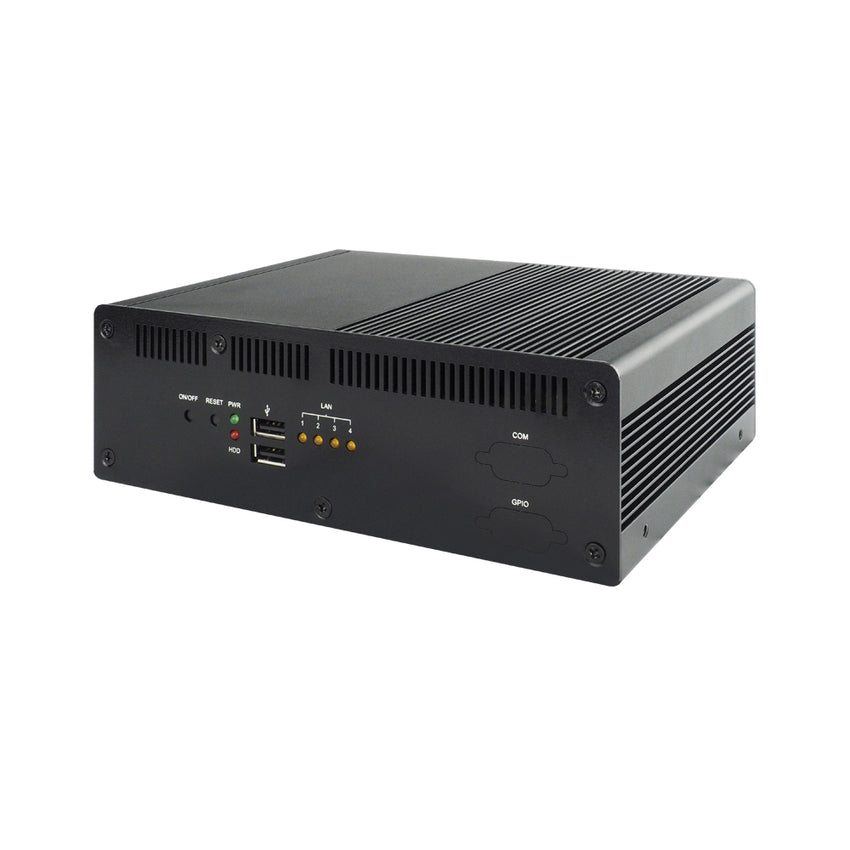

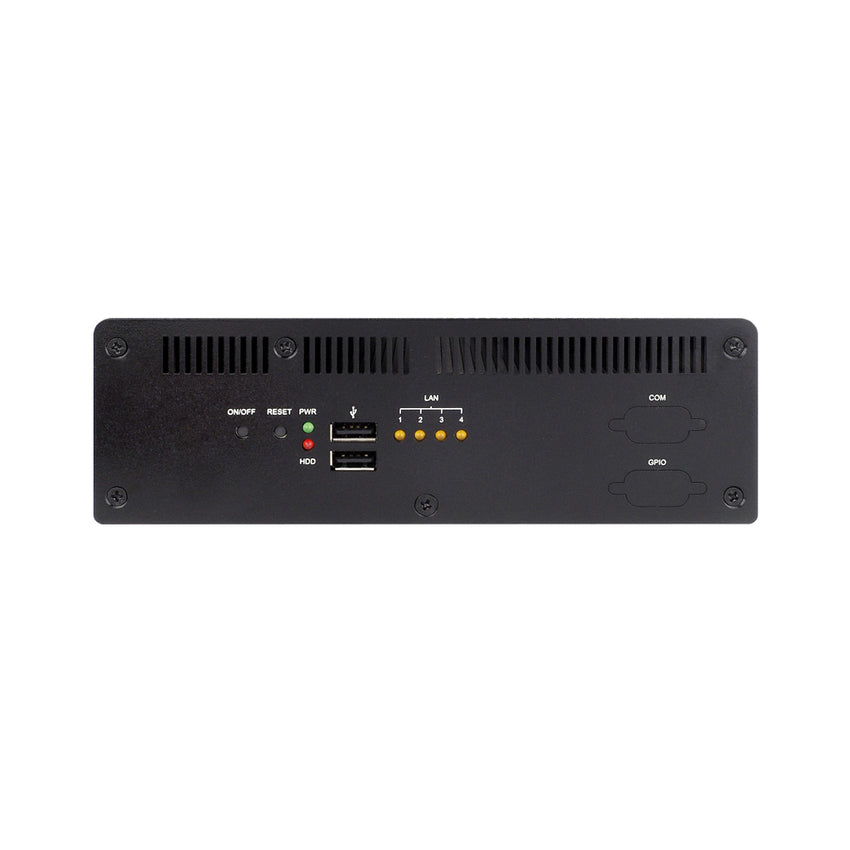

| Front Panel I/O | 1 x Power Button 1 x Reset Button 2 x Status LED (Power, HDD) 2 x USB 2.0 4 x LAN LED 2 x COM Cutout |
| Drive Support | 1 x SATA3 6Gb/s Drive Bay 1 x M.2 2280/2242 slot (PCI-E 3.0 x2/SATA, M Key) |
| OS Support | Windows 10 Windows 11 Linux |
| Power Supply | 12V DC-IN 60W 12V AC-DC Adapter AC 90-240V Input |
| Case Dimensions | 193 x 142.4 x 62mm 7.6" x 5.6" x 2.4" (in inches) |
| Mounting | Wallmount Bracket |
| Environmental | Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-operating Temperature: -20°C to 70°C (-4°F to 158°F) Humidity: 40% to 60% RH@60°C (non-condensing) |
| Compliance | CE, FCC, ErP, RoHS For Barebone CE, FCC, TUV, UL, CCC, CB, ErP For Power Adapter |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: HBFDF13-6412-B
