Manufacturer	Cincoze
Product ID	DA-1200-N97-R10
Model Name	DA-1200
CPU	Intel N97 Processor 3.60 GHz 4 Cores 12W TDP, 6MB Intel Smart Cache
Chipset	SoC
Memory	1 x DDR5 SODIMM 4800 MHz Maximum 16GB Capacity Unbuffered and Non-ECC
Video	Intel UHD Graphics 1.20 GHz 24 Execution Units DisplayPort Maximum Resolution: 3840x2160@60Hz Supports 2 Independent Displays
Audio	N/A
Storage Technology	1 x SATA3 6Gb/s Connector 1 x M.2242 slot: PCI-E 3.0 x2 (Supports NVMe) 1 x M.2 3052 slot: PCI-E 3.0 x1/SATA (Support NVMe)
Connectivity	2 x Intel I225 2.5GbE LAN
Expansion Slots	1 x M.2 3042/3052 B Key slot (PCI-E 3.0 x1, USB 3.2 Gen2, SATA) 1 x M.2 2242 slot B Key slot (PCI-E 3.0 x2) 1 x SIM Socket 1 x CMI Interface

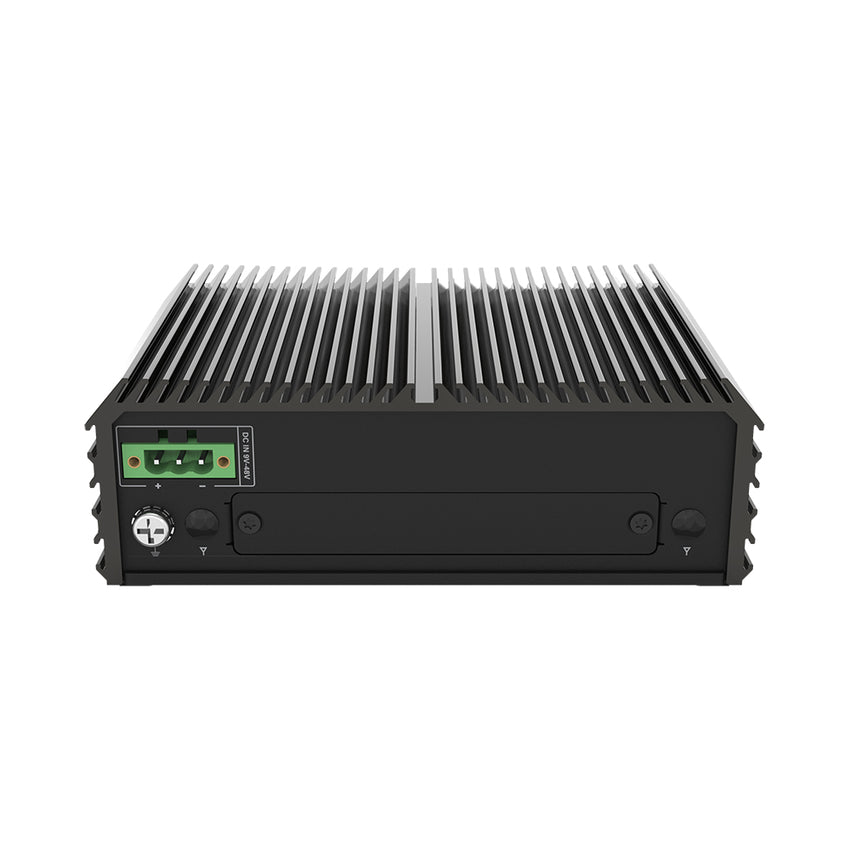

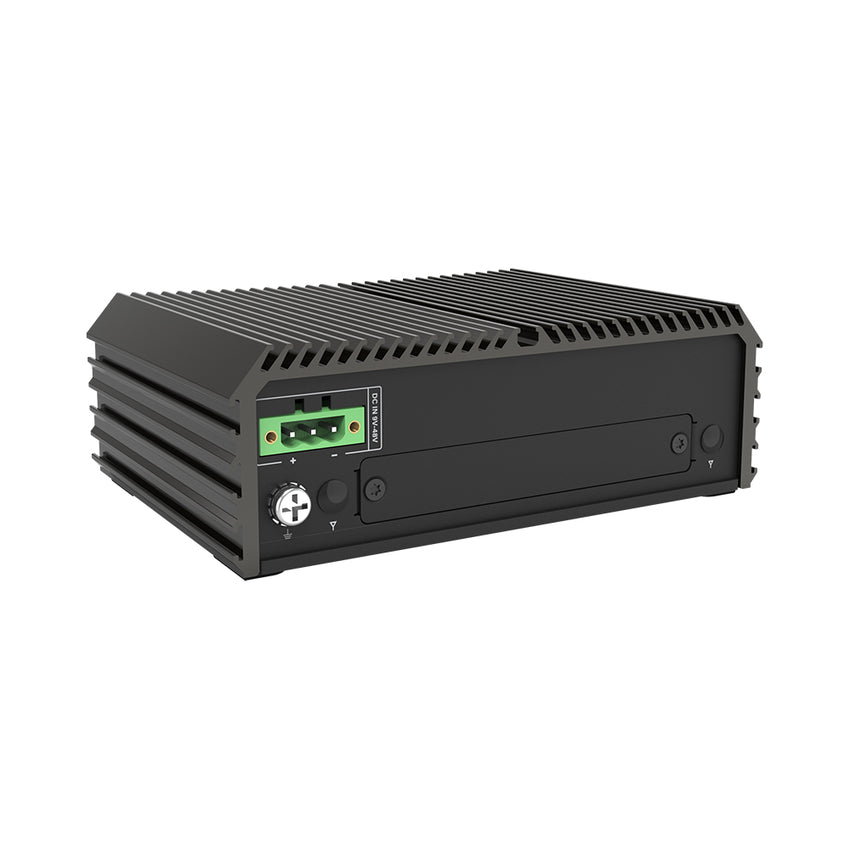

Rear Panel I/O	1 x 9-48VDC 3-Pin Terminal Block 1 x GND Screw 2 x Antenna Cutout

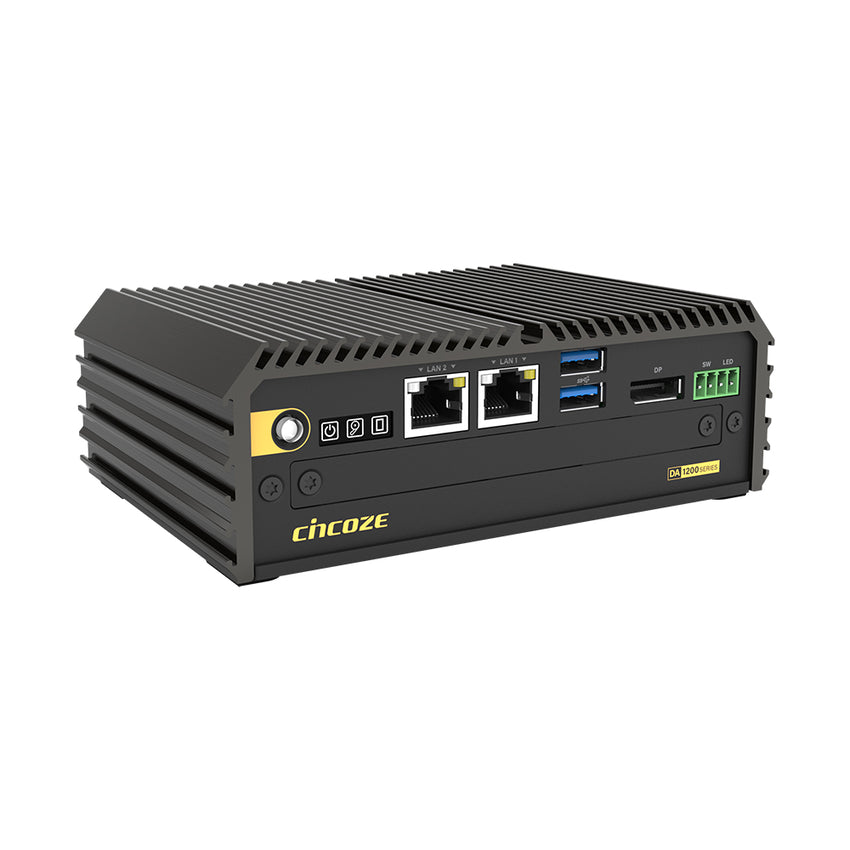

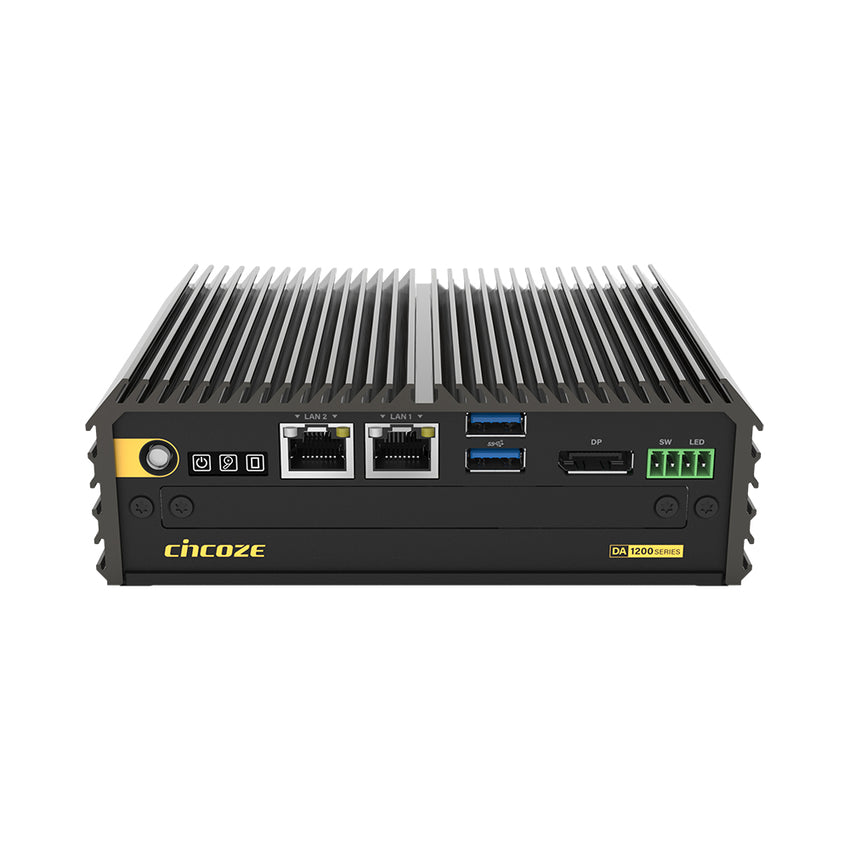

Front Panel I/O	1 x Power Button 3 x Status LED (Power, HDD, System) 2 x RJ45 2.5GbE LAN 2 x USB 3.2 (Gen2x1) 1 x DisplayPort 1 x 4-Pin Terminal Block External Switch and LED 1 x Reset Button 1 x Clear CMOS Button 1 x AT/ATX Switch 1 x SIM Card Slot
Drive Support	1 x 2.5" SATA Drive Bay 1 x M.2242 slot: PCI-E 3.0 x2, B Key (Supports NVMe) 1 x M.2 3052 slot: PCI-E 3.0 x1/SATA, B Key (Support NVMe)
OS Support	Windows 10 Windows 11 Ubuntu 22.04
Power Supply	9-48VDC 3-Pin Terminal Block
Case Dimensions	150 x 105 x 52.3mm 5.9" x 4.1" x 2.1" (in inches)
Mounting	Wall / Side / DIN-RAIL / VESA Mount
Environmental	Operating Temperature: -40°C to 70°C (-40°F to 158°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Relative Humidity: 95% RH @ 70°C (non-condensing) Vibration: MIL-STD-810H Shock: MIL-STD-810H
Compliance	CE, UKCA, FCC, ICES-003 Class A EN61000-6-4, EN61000-6-2 (24VDC Input Only) CISPR 32 Conducted & Radiated: Class A EN/BS EN 55032 Conducted & Radiated: Class A EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A EN/BS EN61000-3-3 Voltage fluctuations & flicker FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Warranty	1-Year Warranty on Parts and Labor
