| Manufacturer | ASRock Rack |
| Product ID | 1U4L4E-EGS/2T |
| CPU |
Supports 4th Gen Intel Xeon Scalable Processors, Sapphire Rapids Socket LGA 4677 Max 300W TDP |
| Chipset | Intel C741 |
| Memory |
8 x DDR5 DIMM slots Supports RDIMM, RDIMM-3DS Maximum 64GB RDIMM Capacity per DIMM Maximum 256GB RDIMM-3DS Capacity per DIMM 4800 MHz |
| Video |
ASPEED AST2600 |
| Storage Technology |
2 x MiniSAS HD to SATA 4-ports NVMe/SATA Passive Backplane 4-port SATA/SAS Passive Backplane M.2: PCI-E 3.0 x4 |
| Connectivity |
2 x Intel X550-AT 10G LAN 1 x Realtek RTL8211F Dedicated IPMI LAN |
| Expansion |
1 x PCI-E 5.0 x16 slots (Full Height, Half Length) |

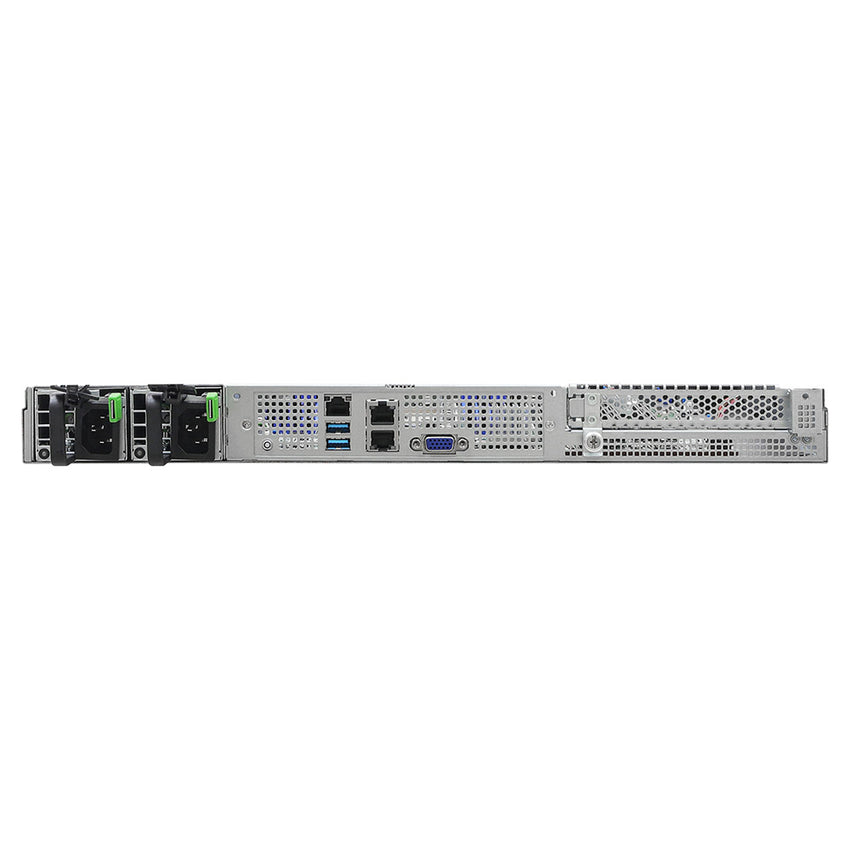

| Rear I/O |
1 x UID Button with LED 1 x RJ45 Dedicated IPMI 2 x USB 3.2 (Gen1) 2 x RJ45 10G LAN 1 x VGA |

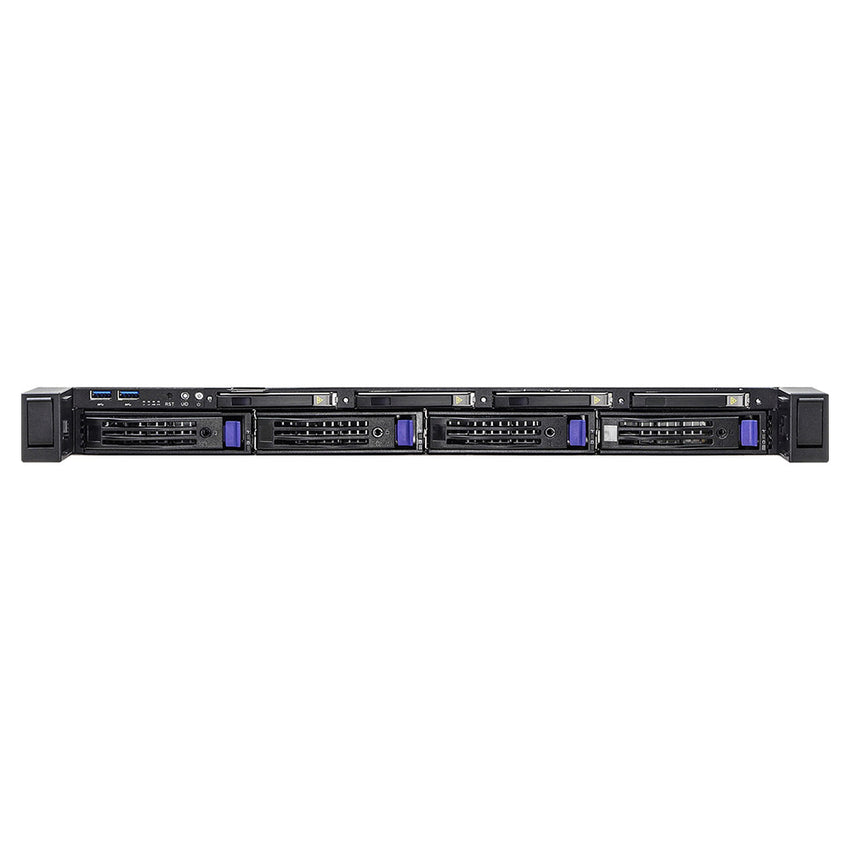

| Front Panel I/O |
2 x USB 2.0 5 x Status LED (HDD, LAN, Event) 1 x Reset Button 1 x Power Button with LED 1 x ID Button with LED |
| Drive Support |
4 x 2.5" Hotswap NVMe/SATA Drive Bays 4 x 3.5" Hotswap SATA Drive Bays 1 x M.2 2280 slot (PCI-E 3.0 x4) |
| Power Supply |
1+1 750W 80-PLUS Platinum Power Supply 100-240V, 60/50Hz |
| Cooling | 6 x Hotswap 40x56mm PWM Fans |
| Case Dimensions |
1U Form Factor 676.5 x 438 x 43.4mm 26.6" x 17.2" x 1.7" (in inches) |
| Environmental |
Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Non-operating Humidty: 20% to 90% (non-condensing) |
| Warranty | 1 Year Manufacturer's Limited Warranty |
PRODUCT ID: 1U4L4E-EGS/2T
