| Product ID | VM-SP1U-043ER-E3 |
| Certified Model Number | SYS-5019S-WR |
| CPU | Supports Intel Xeon E3-1200 v6/v5 Processors Supports Intel 7th/6th Gen Core i3/Celeron/Pentium Processors LGA 1151 Supports up to 80W TDP |
| Chipset | Intel C236 Chipset |
| Memory | 4 x DDR4 DIMM Slots Supports up to 64GB ECC UDIMM 2400/2133/1866/1600 MHz |
| Video | Aspeed AST2400BMC |
| Storage Technology | 2 x SuperDOM ports with build in power 4 x SATA3 6 Gb/s Ports M.2: PCI-E 3.0 x4 or SATA |
| Connectivity | 2 x Intel i210-AT GbE LAN 1 x Realtek PHY RTL8211F-CG Dedicated IPMI Redfish features require OOB or DCMS License |
| Expansion Slots | 1 x PCI-E 3.0 x16 1 x PCI-E 3.0 x4 (in x16) slot |

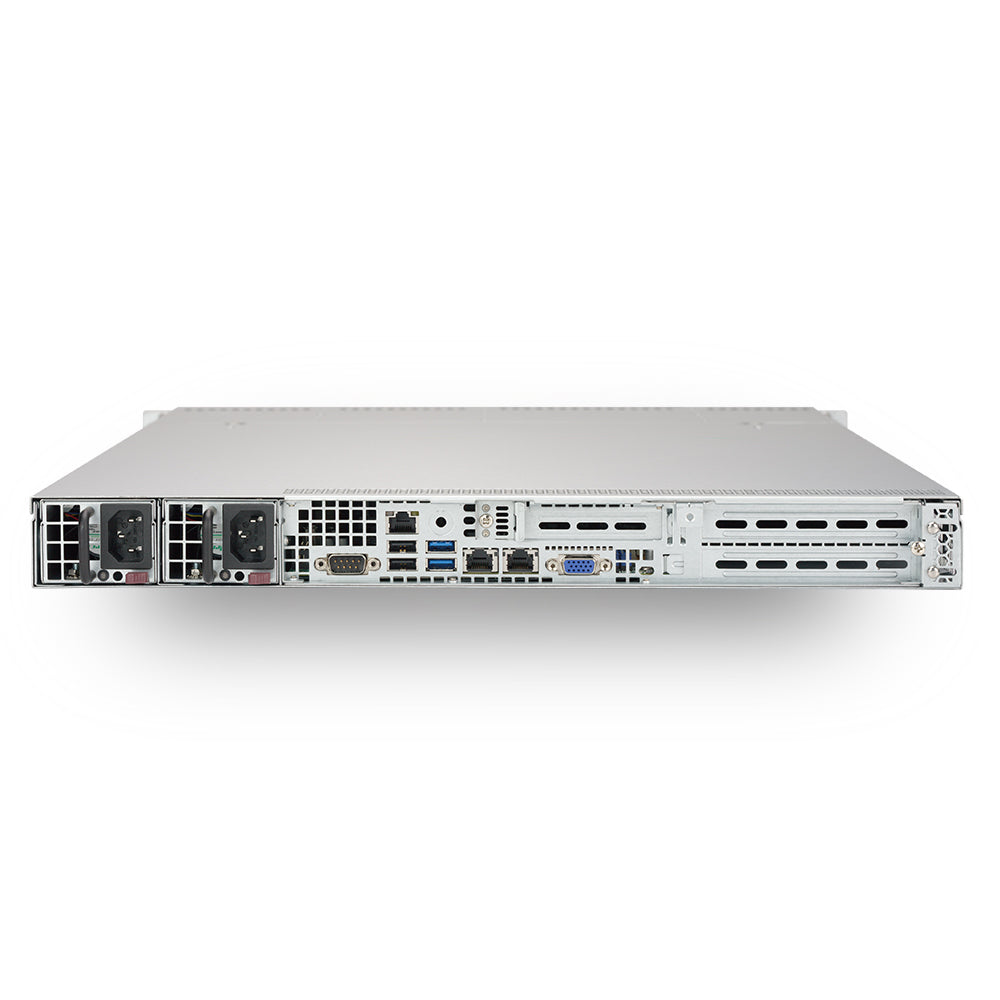

| Rear Panel I/O | 1 x Serial COM Port 1 x RJ45 Dedicated IPMI 2 x USB 2.0 2 x USB 3.0 2 x RJ45 GbE LAN 1 x VGA |

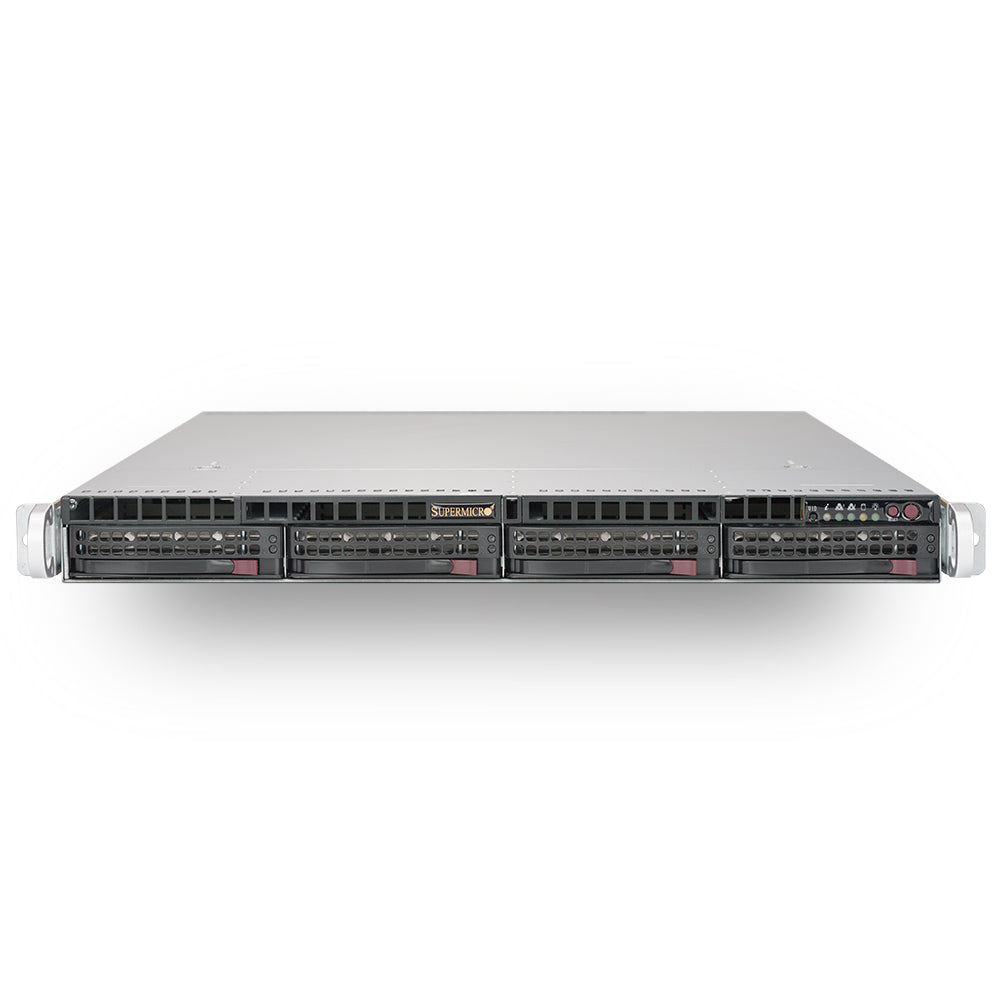

| Front Panel I/O | 1 x UID Button 5 x Status LED (Power, HDD, LAN) 1 x Reset Button 1 x Power Button |
| Drive Support | 4 x 3.5" Hot Swap SATA Drive Bay 2 x SATADOM with onboard power 1 x M.2 2260/2280/21100 slot (M Key, PCI-E 3.0 x4 or SATA) |
| Cooling | 4 x 40x56mm PWM System Fans |
| Power Supply | 500W 80+ Platinum Power Supply with PMBus +5V: 25A +3.3V: 12A -12V: 0.6A |
| Case Dimensions | 650 x 437 x 43mm 25.6" x 17.2" x 1.7" (in inches) Weight: 24 lbs, 10.9kg |
| OS Software | VMware Compatible ESXi 6.7 U1, ESXi 6.7, ESXi 6.5 U2, ESXi 6.5 U1, ESXi 6.5 ESXi 6.0 U3 |
| Environmental | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 8% to 90% (non-condensing) Non-operating Humidity: 5% to 95% (non-condensing) |
| Warranty | 1-Year Manufacturer's Limited Warranty |
PRODUCT ID: VM-SP1U-043ER-E3
