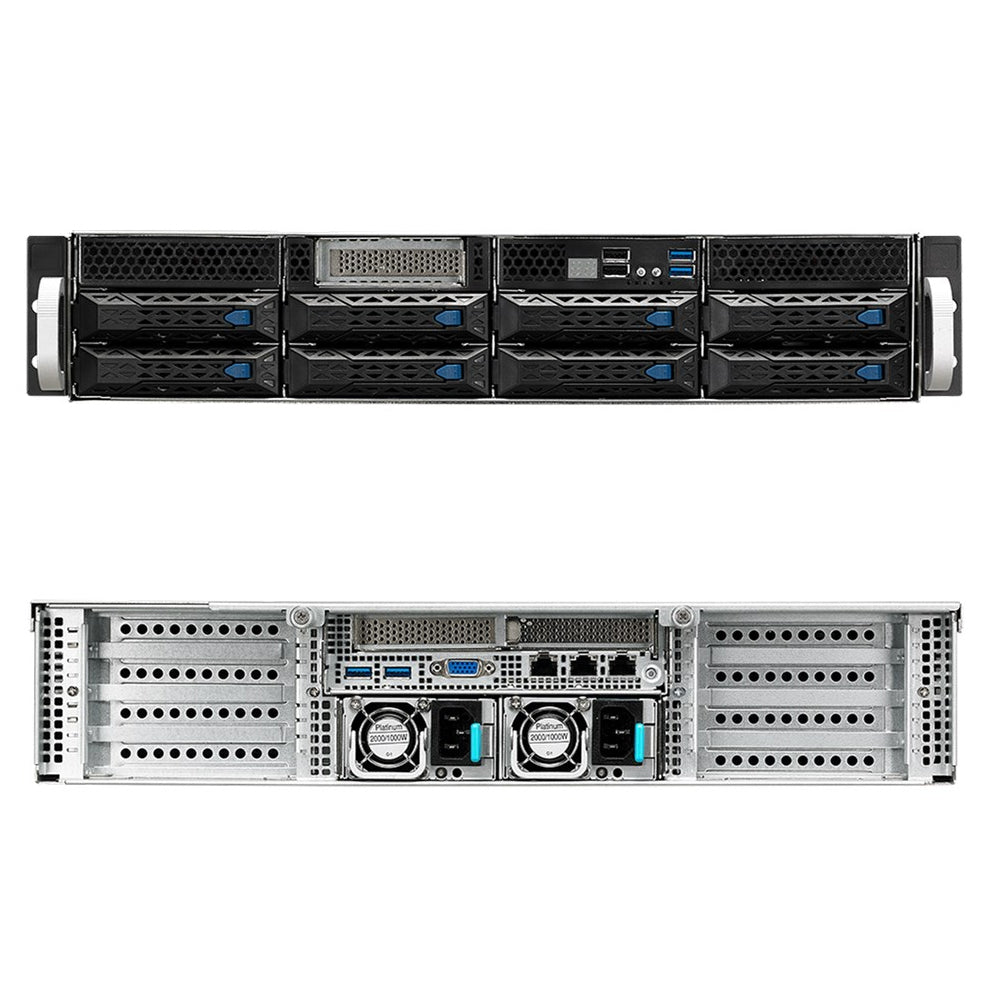

Product ID	VM-DP2U-083ER
Certified Model Number	ESC4000-G4
CPU	Supports Dual Intel Xeon Scalable Processor LGA 3647 Supports up to 150W TDP
Chipset	Intel C621
Memory	Supports 8 x DDR4 DIMM per CPU, 16 total 2666/2400/2133 MHz Supports ECC RDIMM/LRDIMM/LRDIMM 3DS
Video	Aspeed AST2500 with 64MB VRAM
Storage Technology	1 x M.2 connector (SATA & PCI-E 3.0 x4) 8 x SATA3 6Gb/s ports
Connectivity	2 x Intel I350-AM2 Gigabit Ethernet 1 x ASMB9-iKVM Dedicated IPMI
Expansion Slots	4 x PCI-E 3.0 x16 slots 1 x PCI-E 3.0 x8 slot (Low Profile) 1 x PCI-E 3.0 x16 slot (Low Profile) 1 x PCI-E 3.0 x8 slot (Low Profile, Front)
Rear Panel I/O	2 x USB 3.0 1 x VGA 1 x RJ45 (Dedicated IPMI) 2 x RJ45 LAN
Front Panel I/O	1 x 80port 2 x USB 2.0 2 x USB 3.0
Drive Support	8 x 3.5" Hot Swap drive bays 1 x M.2 2260/2280 slot (SATA or PCI-E 3.0 x4)
Cooling	7 x 80mm System Fans
Power Supply	1+1 Redundant 1600W 80+ Platinum Power Supply 100-127Vac, 12.7A, 1000W 200-240Vac, 9.5 A, 1600W
Case Dimensions	2U Rackmount 800mm x 440mm x 88mm 31.50"x 17.22" x 3.46"(in inches) Net Weight: 22.6 kg, 49.83 lbs
OS Software	VMware Compatible ESXi 6.7 U1, ESXi 6.7, ESXi 6.5 U2, ESXi 6.5 U1, ESXi 6.5
Environmental	Operating Temperature: 10°C to 35°C (50°F to 95°C) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Non-operating Humidity: 20% to 90% (Non-condensing)
Warranty	1-Year Manufacturer's Limited Warranty
