Manufacturer	Sonicwall
Product ID	TZ470
Connectivity	8 x RJ45 GbE 2 x SFP+ 10GbE 2 x RJ45 Console Port
Single Sign-On (SSO) Users	2,500
Interface	VLAN Interface: 128
Access Points Supported (Maximum)	32
Performance	Firewall Inspection Throughput: 3.5 Gbps Threat Prevention Throughput: 1.5 Gbps Application Inspection Throughput: 2 Gbps IPS Throughput: 2 Gbps Anti-Malware Inspection Throughput: 1.5 Gbps TLS/SSL Inspection and Decryption Throughput (DPI SSL)2: 600 Mbps IPSec VPN Throughput: 1.5 Gbps Connections per second: 12,000 Maximum Connections (SPI): 1,000,000 Maximum Connections (DPI): 550,000 Maximum Connections (DPI SSL): 35,000
VPN	Site-to-site VPN Tunnels: 150 IPSec VPN Clients (Maximum): 5 (200) SSL VPN Licenses (Maximum): 2 (150) Encryption/Authentication: DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography Key exchange: Diffie Hellman Groups 1, 2, 5, 14v Route-based VPN: RIP, OSPF, BGP VPN features: Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN Global VPN client platforms supported: Microsoft Windows 10 NetExtender: Microsoft Windows 10, Linux Mobile Connect: Apple iOS, Mac OS X, Google Android, Kindle Fire, Chrome OS, Windows 10
Networking	IP address assignment: Static, (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay NAT modes: 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode Routing protocols4: BGP, OSPF, RIPv1/v2, static routes, policy-based routing QoS: Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM) Authentication: LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC) Local user database: 250 VoIP: Full H.323v1-5, SIP Standards: TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3 Certifications: FIPS 140-2 (with Suite B) Level 2, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus, Common Criteria NDPP (Firewall and IPS)

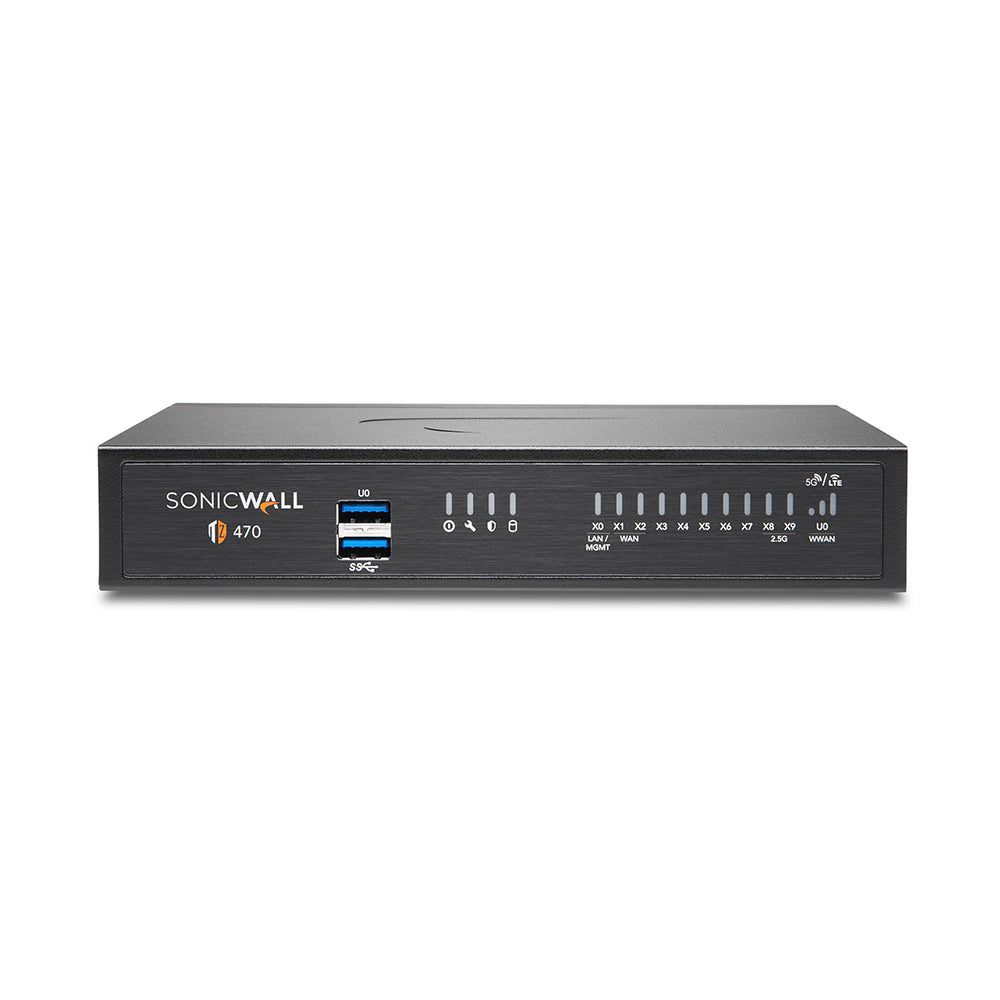

Front I/O	2 x USB 3.0 4 x Status LEDs (Power, Text, Security, Storage) 10 x Port LEDs (MGMT, LAN, WAN) 2 x WWAN LEDs (USB 5G/LTE)

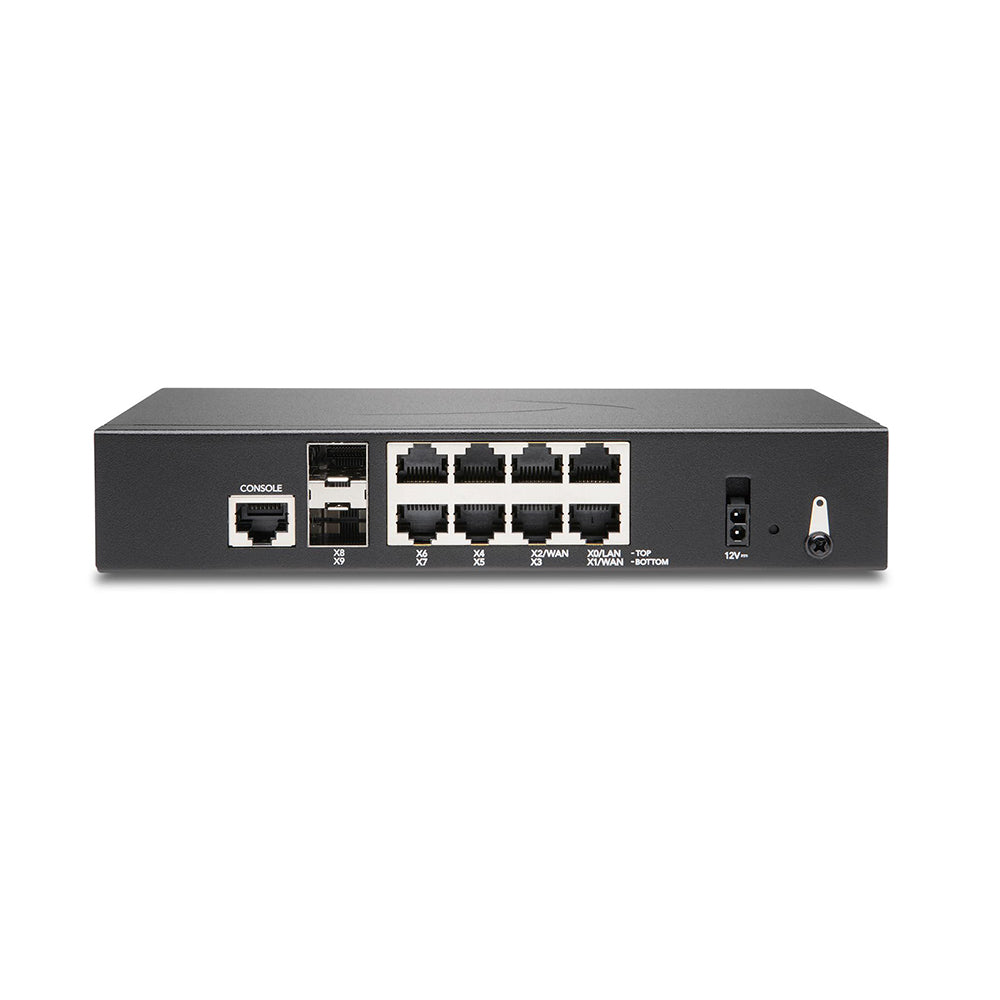

Rear I/O	1 x RJ45 Console Port 2 x SFP+ 10GbE LAN Port 8 x RJ45 GbE LAN Port 1 x Power Input 1 x SafeMode Button 1 x Grounding Screw
OS Software	SonicOS 7.0
Power	Power Supply: 36W, 100-240Vac, 50-60Hz Maximum Power Consumption: 19.95 W
Dimensions	1.8" x 5.3" x 7.5" (in inches) 350 x 135 x 190mm
MTBF	46 Years
Environmental	Operating Temperature: 0°C to 40°C (32°F to 105°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 5% to 95% (non-condensing)
Compliance	FCC Class B, FCC , ICES Class B, CE (EMC, LVD, RoHS), C-Tick VCCI Class B, UL/cUL, TUV/ GS, CB Mexico DGN notice by UL, WEEE, REACH, BSMI, KCC/MSIP, ANATEL
