| Manufacturer | Sonicwall |
| Product ID | TZ370 |
| Connectivity |
8 x RJ45 GbE 2 x RJ45 Console Port |
| Single Sign-On (SSO) Users | 1,000 |
| Interface |
VLAN Interface: 128 |
| Access Points Supported (Maximum) | 16 |
| Performance |
Firewall Inspection Throughput: 3 Gbps Threat Prevention Throughput: 1 Gbps Application Inspection Throughput: 1.5 Gbps IPS Throughput: 1.5 Gbps Anti-Malware Inspection Throughput: 1 Gbps TLS/SSL Inspection and Decryption Throughput (DPI SSL)2: 500 Mbps IPSec VPN Throughput: 1.3 Gbps Connections per second: 9,000 Maximum Connections (SPI): 900,000 Maximum Connections (DPI): 200,000 Maximum Connections (DPI SSL): 30,000 |
| VPN |
Site-to-site VPN Tunnels: 100 IPSec VPN Clients (Maximum): 5 (200) SSL VPN Licenses (Maximum): 2 (100) Encryption/Authentication: DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography Key exchange: Diffie Hellman Groups 1, 2, 5, 14v Route-based VPN: RIP, OSPF, BGP VPN features: Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN Global VPN client platforms supported: Microsoft Windows 10 NetExtender: Microsoft Windows 10, Linux Mobile Connect: Apple iOS, Mac OS X, Google Android, Kindle Fire, Chrome OS, Windows 10 |
| Networking |
IP address assignment: Static, (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay NAT modes: 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode Routing protocols4: BGP, OSPF, RIPv1/v2, static routes, policy-based routing QoS: Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM) Authentication: LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC) Local user database: 250 VoIP: Full H.323v1-5, SIP Standards: TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3 Certifications: FIPS 140-2 (with Suite B) Level 2, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus, Common Criteria NDPP (Firewall and IPS) |

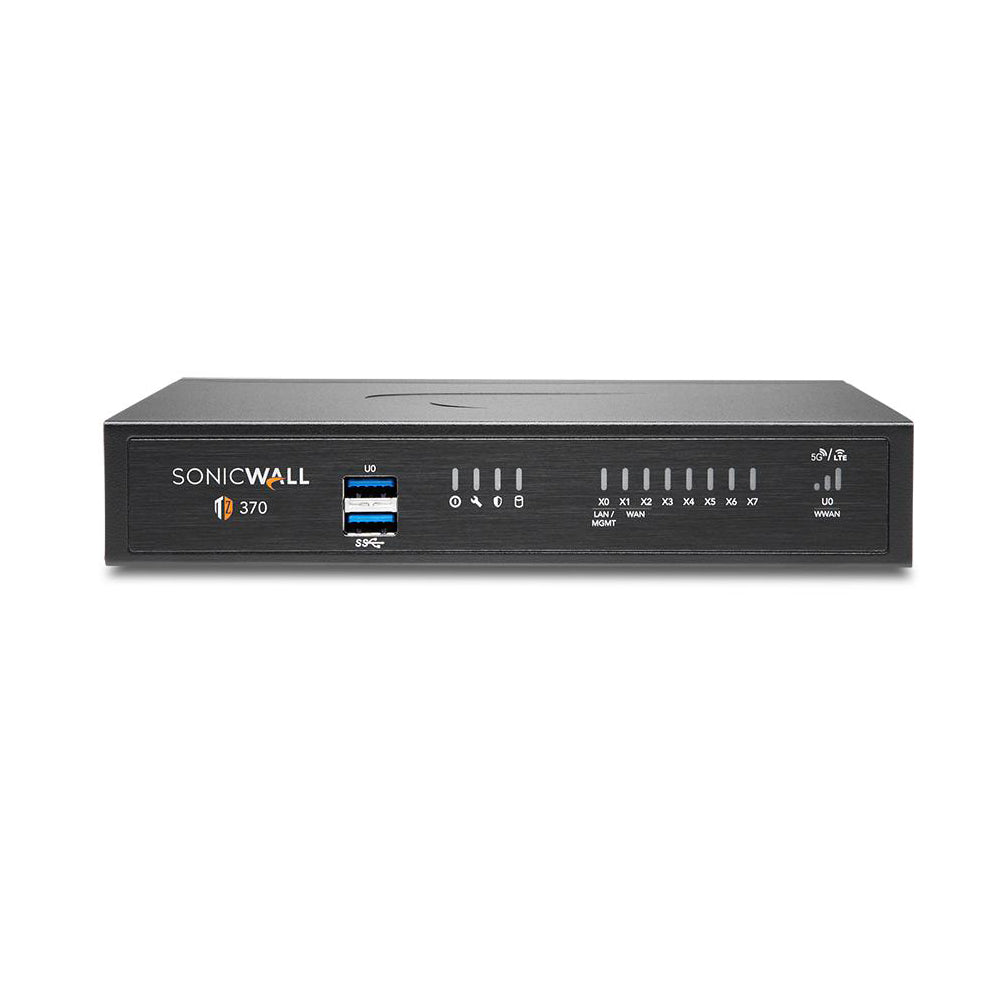

| Front I/O |
2 x USB 3.0 4 x Status LEDs (Power, Text, Security, Storage) 8 x Port LEDs (MGMT, LAN, WAN) 2 x WWAN LEDs (USB 5G/LTE) |

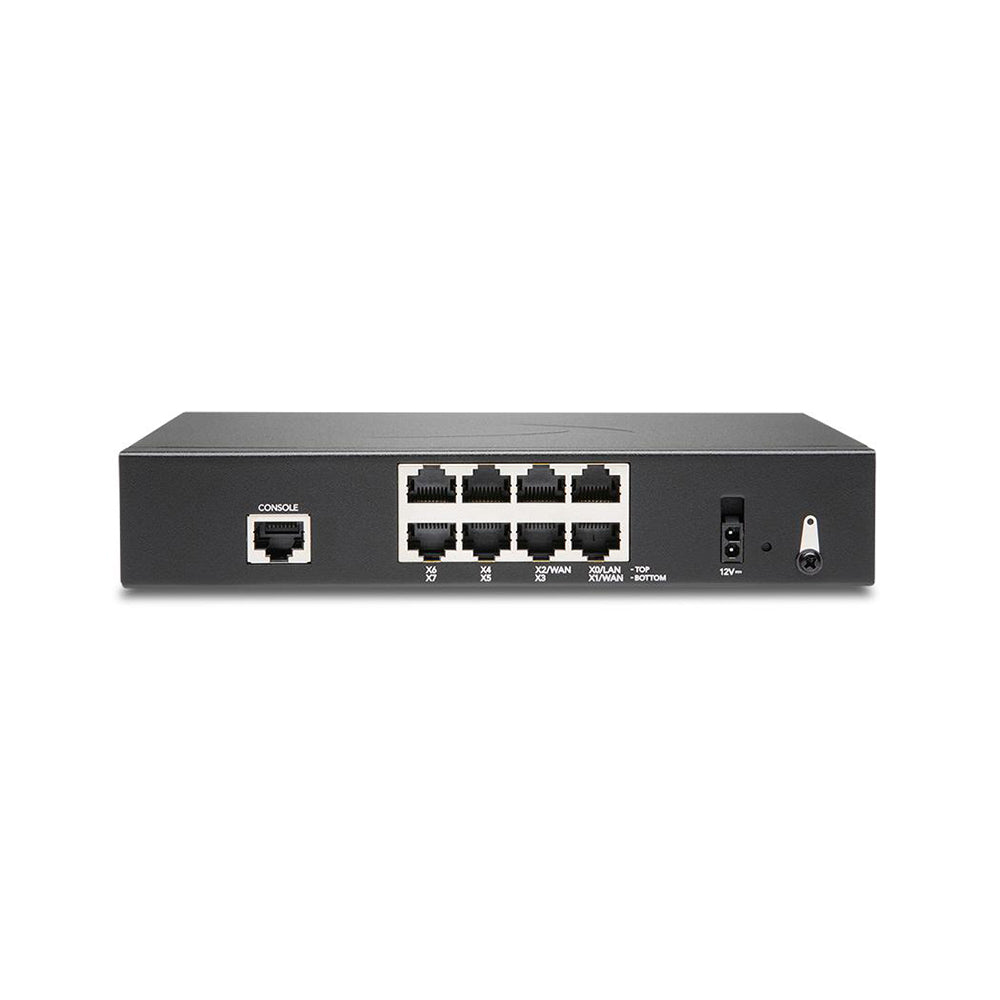

| Rear I/O |
1 x RJ45 Console Port 8 x RJ45 GbE LAN Port 1 x Power Input 1 x SafeMode Button 1 x Grounding Screw |
| OS Software | SonicOS 7.0 |
| Power |
Power Supply: 36W, 100-240Vac, 50-60Hz Maximum Power Consumption: 16.84 W |
| Dimensions |
1.8" x 5.3" x 7.5" (in inches) 350 x 135 x 190mm |
| MTBF |
51.1 Years |
| Environmental |
Operating Temperature: 0°C to 40°C (32°F to 105°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 5% to 95% (non-condensing) |
| Compliance |
FCC Class B, FCC , ICES Class B, CE (EMC, LVD, RoHS), C-Tick VCCI Class B, UL/cUL, TUV/ GS, CB Mexico DGN notice by UL, WEEE, REACH, BSMI, KCC/MSIP, ANATEL |
PRODUCT ID: TZ370
