Manufacturer	Supermicro
Product ID	SYS-E403-9D-8CN-FN13TP
CPU	Intel Xeon D-2146NT Processor 2.30 - 3.00 GHz 8 Cores / 16 Threads 80W TDP, 11 MB Cache
Chipset	SoC
Memory	4 x DDR4 DIMM slots Supports up to 512GB ECC LRDIMM Supports up to 256GB ECC RDIMM 2666/2400/2133MHz, Operating speed up to 2400MHz
Video	Aspeed AST2500 BMC
Storage Technology	4 x SATA3 6.0Gb/s Supports RAID 0, 1, 5, 10 M.2: SATA or PCI-E 3.0 x4 Mini PCI-E with mSATA support
Connectivity	2 x Intel X557 10GBase-T LAN 2 x SoC 10G SFP+ Ports 8 x Intel i350-AM4 GbE LAN 1 x Intel i210 GbE LAN 1 x Dedicated IPMI
Expansion Slots	1 x PCI-E 3.0 x16 slots 1 x PCI-E 3.0 x16 slot or 2 x PCI-E x8 slots 1 x M.2 2230 slot (E Key) 1 x M.2 3042 slot (B Key)

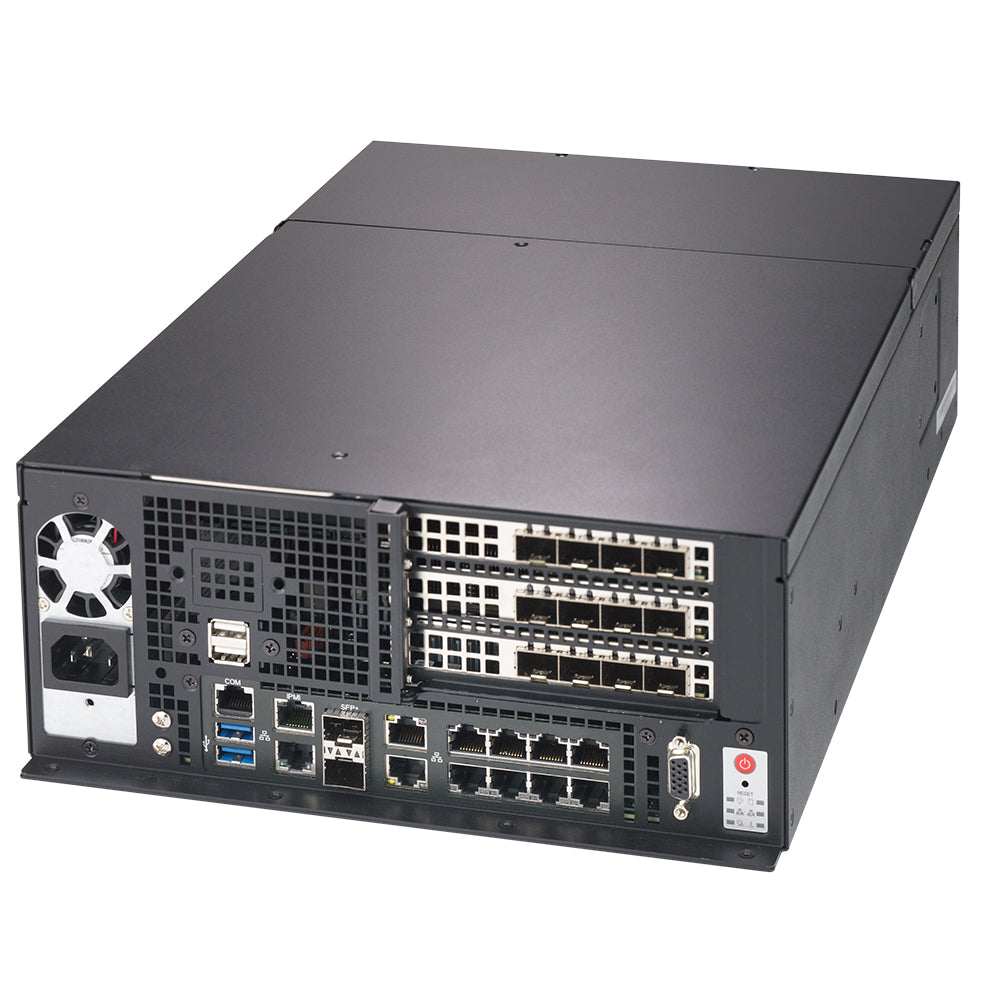

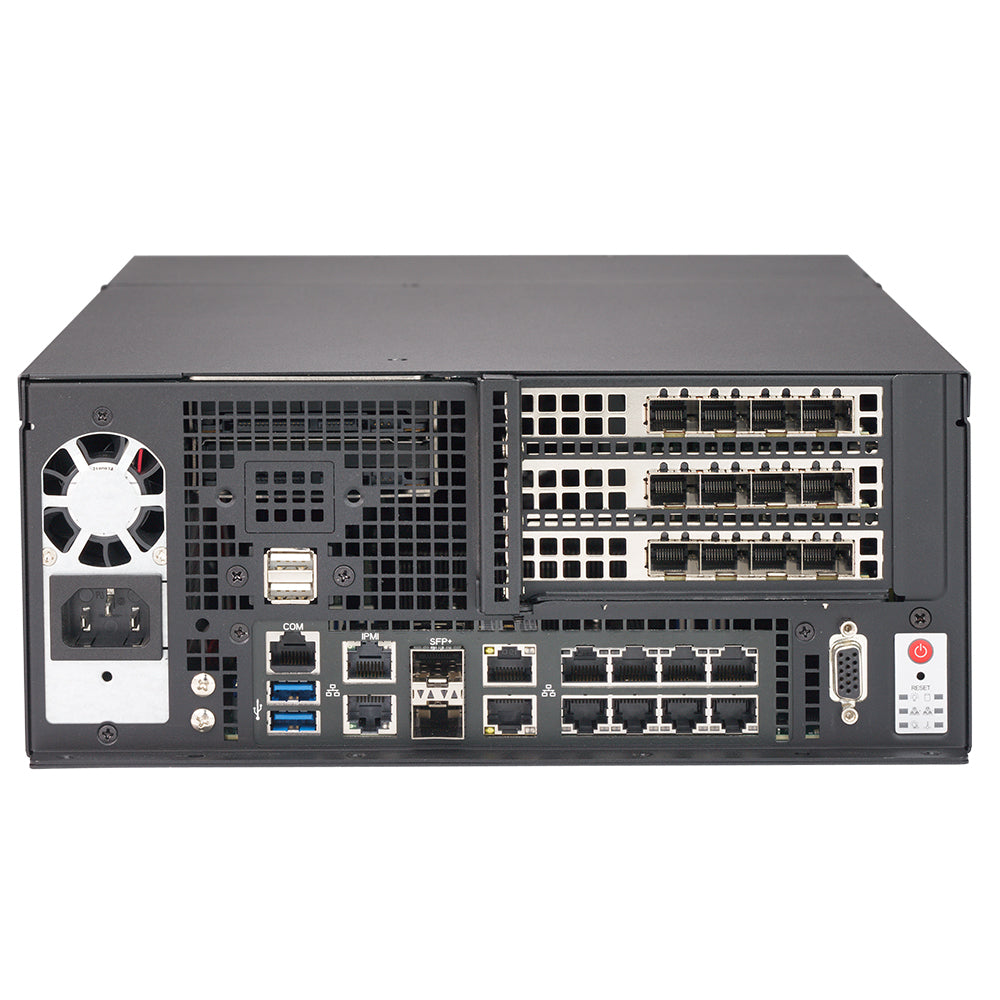

Rear Panel I/O	2 x USB 2.0 1 x RJ45 COM Port 2 x USB 3.0 2 x RJ45 10GBase-T LAN ,br> 2 x SFP+ 10G Ports 1 x RJ45 Dedicated IPMI 9 x RJ45 GbE LAN 1 x VGA Power Button 10 x Status LED (LAN)
Drive Support	4 x 2.5" Drive Bays 1 x M.2 2280 slot (PCI-E 3.0 x4 or SATA)
Power Supply	600W 80PLUS Gold Power Supply w/ PFC AC Input: 100-240V, 50-60Hz, 7.5-3.1A
Case Dimensions	406 x 267 x 109mm 16" x 10.5" x 4.3" (in inches) Weight: 17 lbs, 7.7kg

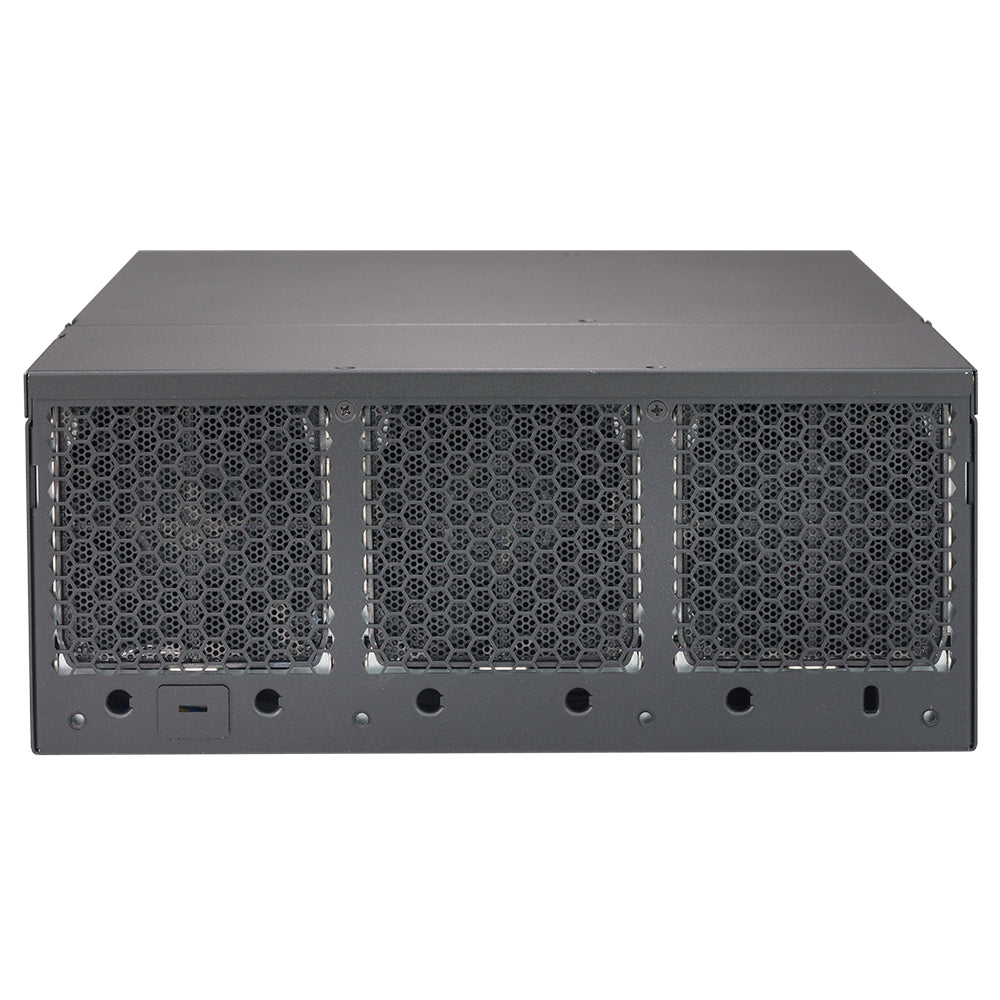

Cooling	3 x 80x80mm PWM Redundant Fans
Environmental	Operating Temperature: 0°C to 50°C (32deg;F to 122°F) Non-Operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidty: 8% - 90% (non-condensing) Non-Operating Humidity: 5% - 95% (non-condensing)
Compliance	RoHS Compliant
Warranty	1-Year Manufacturer's Limited Warranty on Parts 3-Year Manufacturer's Limited Warranty on Labor
