Product ID |
SYS-E300-9A-8C |
CPU |
Intel Atom C3758 Processor 2.2 GHz 8 core / 8 Threads 25W TDP, 14nm, 12MB Cache |
Chipset |
SoC |
Memory |
4 x 288-pin DDR4 DIMM Supports up to 256GB ECC RDIMM Supports up to 64GB DDR4 ECC/Non-ECC UDIMM 2400/2133/1866MHz, 1.2V |
Video |
Aspeed AST2400 |
Storage Technology |
SATA3 6.0Gb/s ports M.2 PCI-E 3.0 x2 or SATA3 |
Connectivity |
4 x Intel C3000 SoC GbE LAN 1 x Realtek RTL8201N PHY (IPMI) |
Expansion Slots |
1 x Low Profile PCIe 3.0 x4 (shared with 2.5" drive bay) |

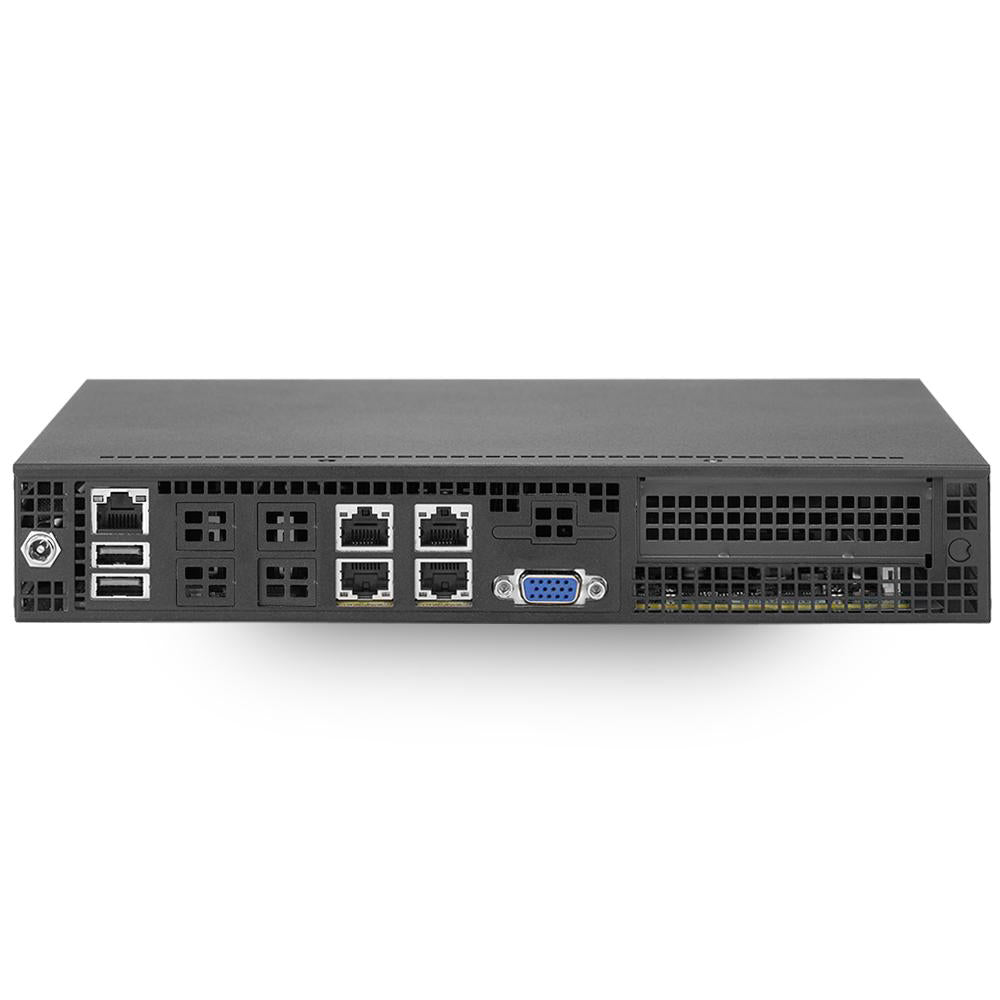

Rear Panel I/O |
1 x RJ45 (Dedicated IPMI) 2 x USB 2.0 4 x RJ45 GbE LAN 1 x VGA |

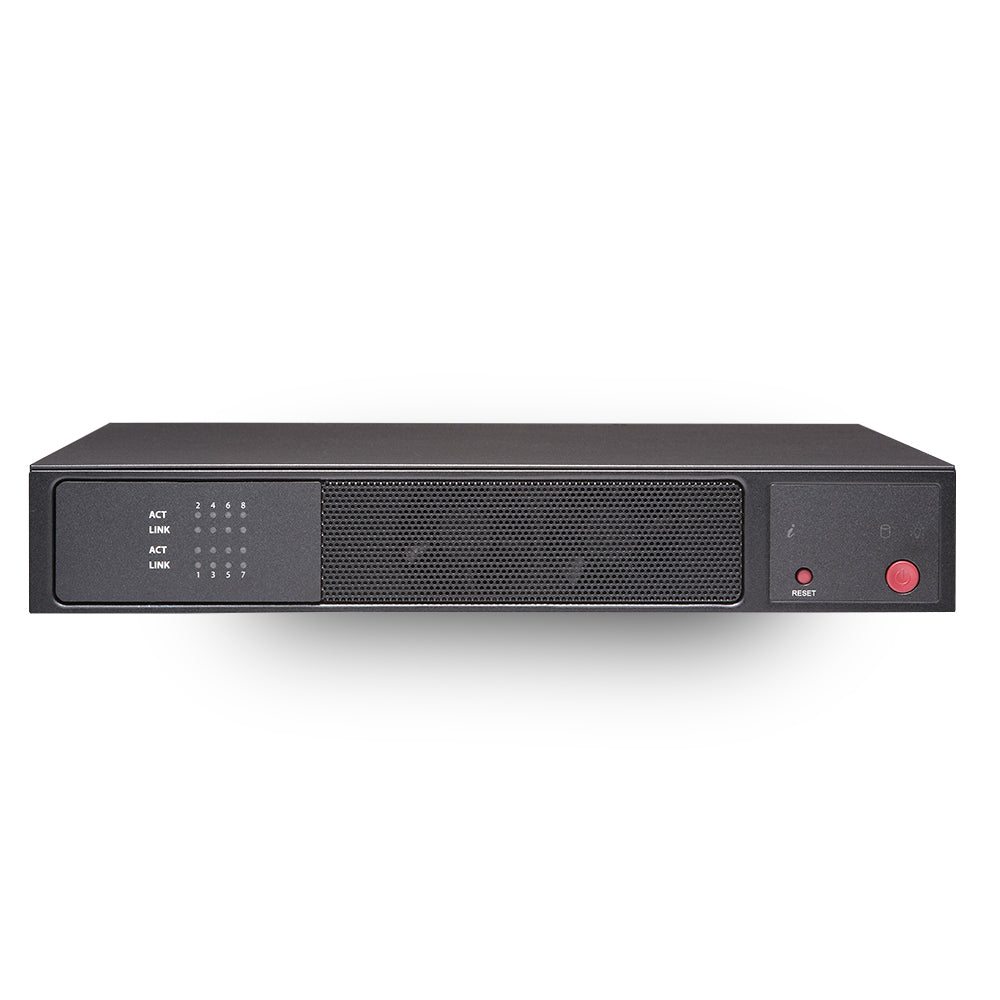

Front Panel I/O |
1 x Power Button 1 x Reset Button 5 x Status LED |
Drive Support |
1 x M.2 (M key, 2280/2242) 1 x 2.5" HDD/SSD 1 x 2.5" HDD/SSD or PCIe 3.0 x4 slot |
Cooling |
2 x 40x28mm 13K RPM 4-Pin PWM Fan |
Power Supply |
84W AC-DC Adapter |
Case Dimensions |
254 x 226 x 43mm 10" x 8.9" x 1.7" (in inches) Net Weight: 1.56 kg, 3.45 lbs Gross Weight: 3.4 kg, 7.5 lbs |
Mounting |
Optional 1U Rackmount kit |
Warranty |
1-Year Warranty on Parts and Labor |
