Manufacturer	Supermicro
Product ID	SYS-E100-9AP-IA
CPU	Intel Atom x5-E3940 Processor 1.60 - 1.80 GHz 4 Cores / 4 Threads 9.5W TDP, 2MB L2 Cache
Chipset	SoC
Memory	1 x DDR3L SODIMM slot Maximum 8GB capacity 1866/1600/1333MHz non-ECC, Unbuffered Memory Only Requires Low Voltage 1.35V
Video	Intel HD Graphics 500 400 - 600 MHz 2GB Max Graphics Video Memory HDMI Max Resolution: 3840x2160@30Hz VGA Max Resolution: 2560x1600@60Hz
Storage Technology	SATA3 6.0Gb/s
Connectivity	2 x Intel I210-IT GbE LAN
Expansion Slots	1 x Mini PCI-E slot (Full size) 1 x M.2 2280 slot (SATA or PCI-E 2.0 x1, B Key)

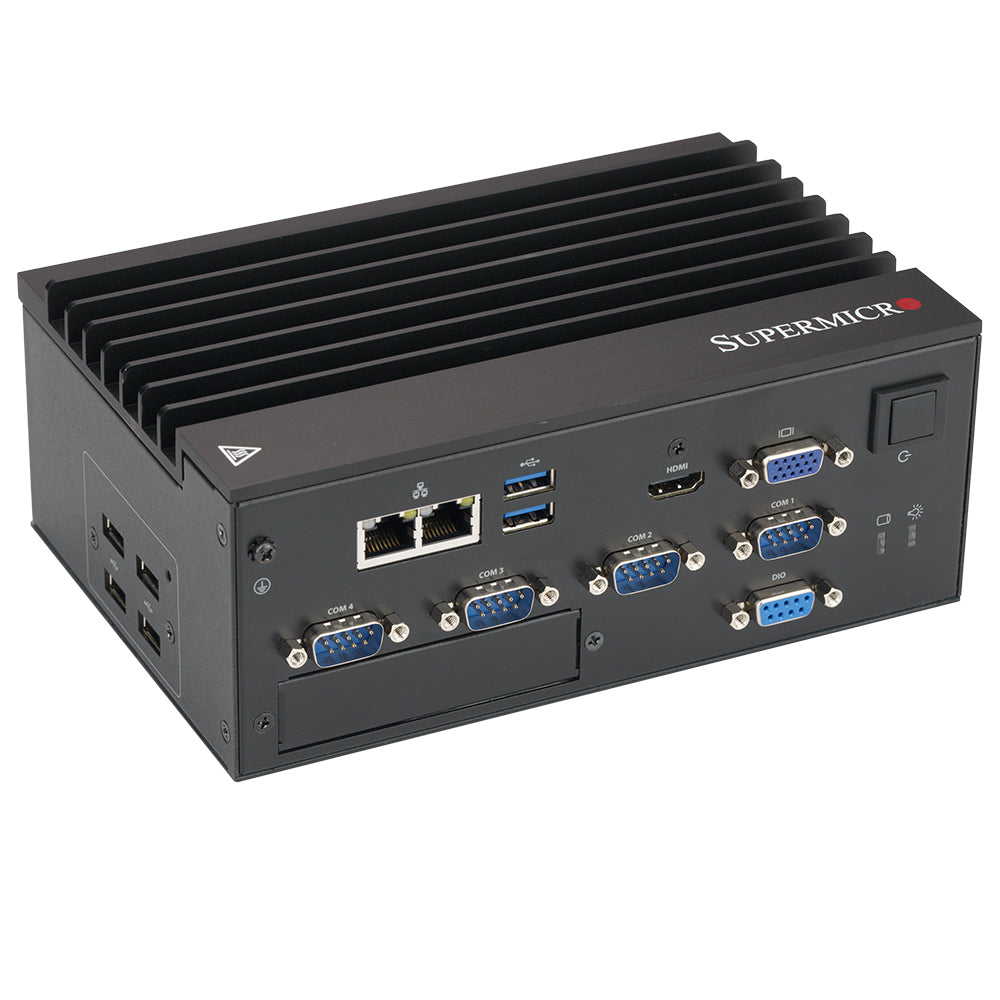

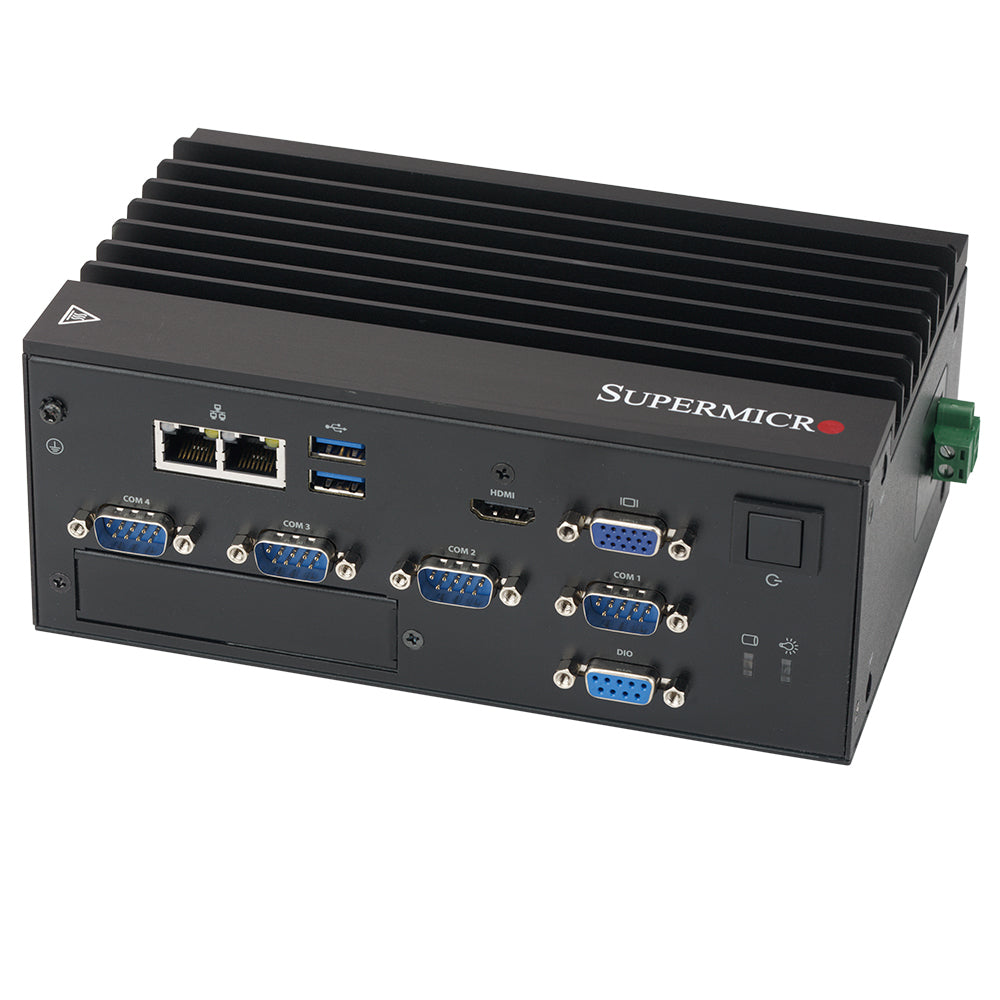

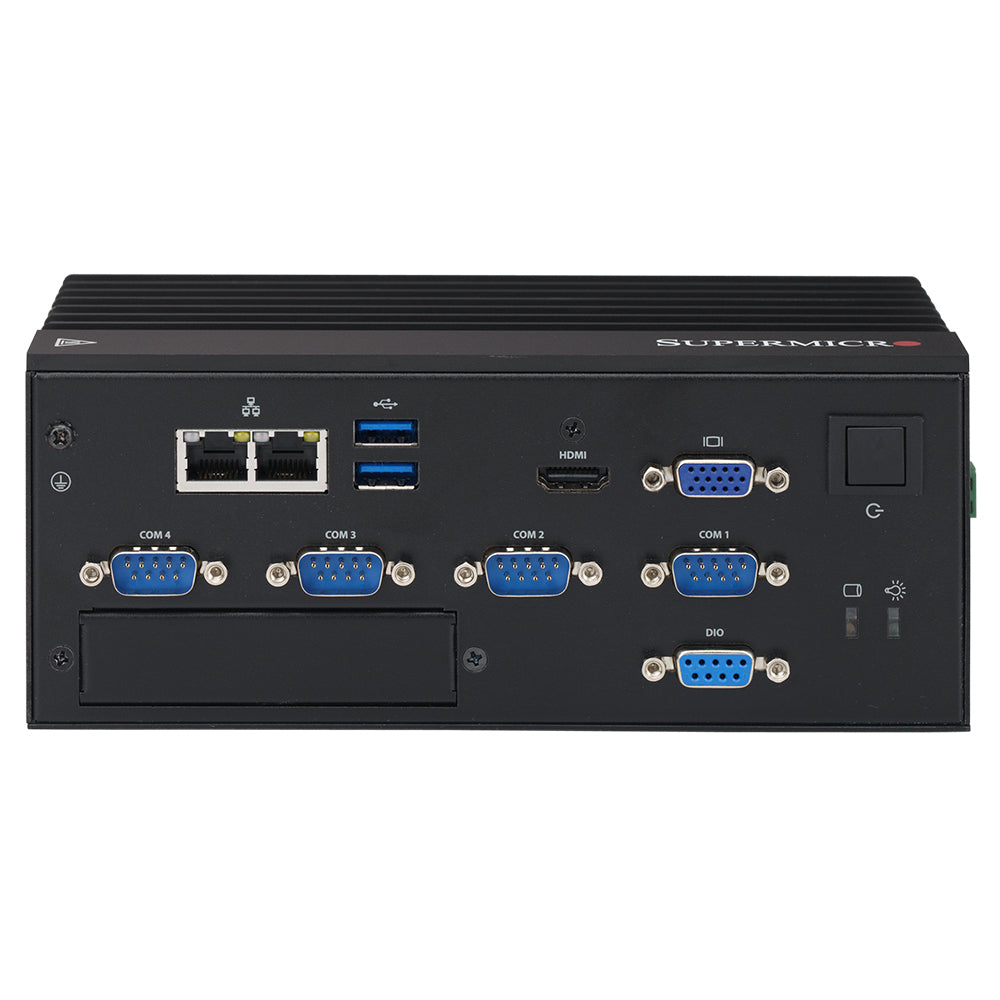

Front Panel I/O	1 x Grounding Screw 2 x COM Ports (RS232) 2 x RJ45 GbE LAN 2 x USB 3.0 1 x HDMI 2 x COM Ports (RS232/422/485) 1 x VGA 1 x DB9 DIO 1 x Power Button 2 x Status LED (HDD, Power)
Side Panel I/O	4 x USB 2.0 1 x 9-36V Terminal Block DC-IN
Drive Support	1 x 2.5" Drive Bay 1 x M.2 2280 slot (SATA or PCI-E 2.0 x1)
Power Supply	9-36V Terminal Block DC-IN 60W 12V DC Power Supply with Terminal Block Connector
Case Dimensions	126 x 80 x 194mm 4.96" x 3.15" x 7.64" (in inches) Weight: 3.31 lbs, 1.5 kg
Environmental	Operating Temperature: -20°C to 60°C (-4°F to 140°F) Non-Operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidty: 8% - 90% (non-condensing) Non-Operating Humidity: 5% - 95% (non-condensing)
Compliance	RoHS Compliant
Warranty	1-Year Manufacturer's Limited Warranty on Parts 3-Year Manufacturer's Limited Warranty on Labor
