Manufacturer	ASRock Industrial
Part Number	SBC-350M
CPU	Intel Core i5-8365UE Processor 1.6 - 4.1 GHz 4 Cores / 8 Threads 15W TDP, 6MB Intel SmartCache Supports vPro
Chipset	SoC
Memory	2 x DDR4 SODIMM Slots Maximum 32GB Capacity 2400MHz Dual Channel
Video	Intel UHD Graphics 620 300 MHz - 1.05GHz DisplayPort Max Resolution: 4096x2160@60Hz LVDS Max Resolution: 1920x1200@60Hz Supports Triple Displays
Audio	Realtek ALC887 HD Audio
Storage Technology	1 x SATA3 6Gb/s Ports 1 x M.2 2242/2280 slot (PCIe x4/SATA, M Key) 1 x M.2 2242 slot (SATA Only, M Key)
Connectivity	1 x Intel I219LM GbE LAN supports AMT/vPro 1 x Intel I210AT GbE LAN
Expansion Slots	1 x M.2 2230 slot (PCIe x1, CNVI and USB 2.0 for Wireless, E Key)
Power	9-36V DC-IN

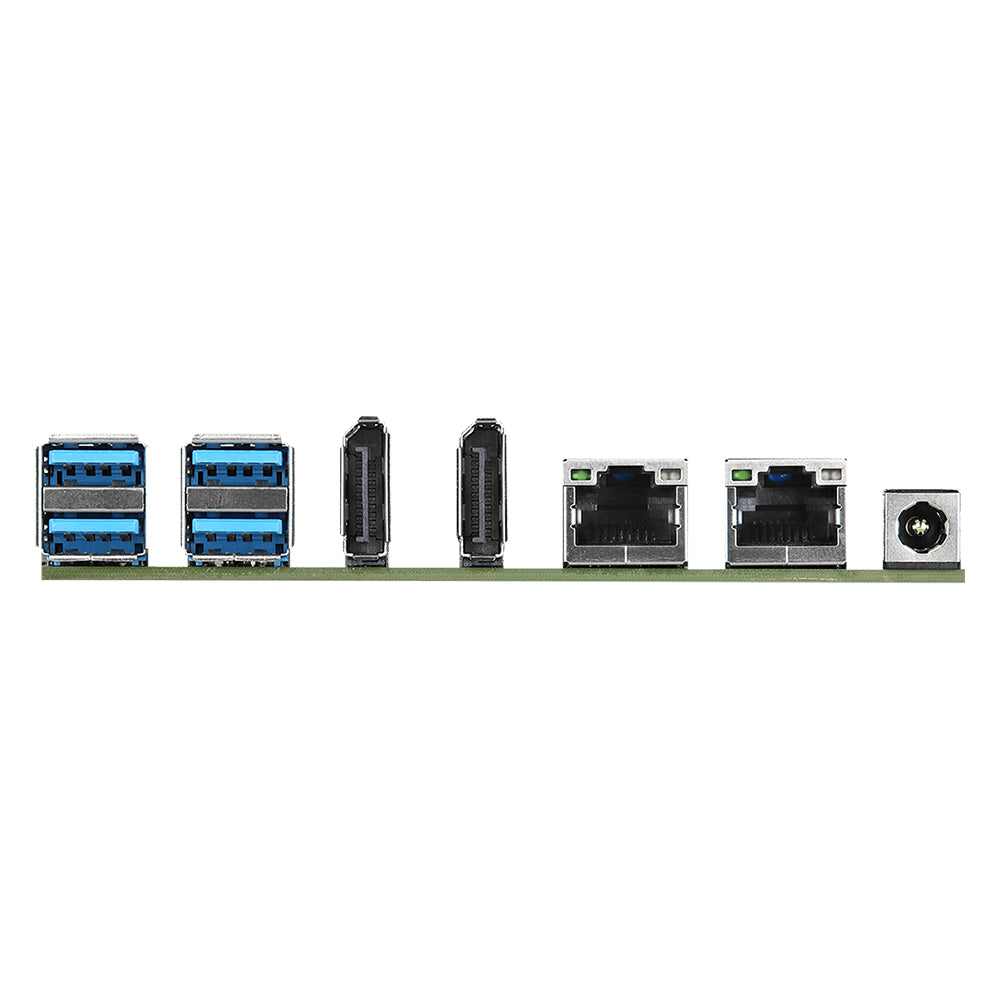

Rear I/O	4 x USB 3.2 (Gen2) 2 x DisplayPort 2 x RJ45 GbE LAN 1 x 9-36V DC-IN
Onboard I/O Headers	1 x USB 3.2 (Gen1) header (Supports up to 2 ports) 1 x USB 2.0 header (2.54mm pitch) 1 x COM header (RS232/422/485) 3 x COM headers (RS232) 1 x 8-Pin GPIO (4 x GPI, 4 x GPO) 1 x Onboard TPM 2.0 1 x LVDS header 1 x Speaker header
Form Factor	3.5" SBC 6.3" x 4.0" (in inches) 160 x 101.6mm
Environmental	Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 5% to 90% (non-condensing) Non-Operating Humidity: 5% to 90% (non-condensing)
Warranty	1-Year Manufacturer's Limited Warranty
