Manufacturer | ASUS |
Product ID | RS500-E9-RS4 |
CPU | Supports 2 x Intel Xeon Scalable Processors LGA 3647, Socket P Up to 205W TDP |
Chipset | Intel Lewisburg PCH C621 |
Memory | 16 x DDR4 DIMM Slots, 8 per CPU Supports up to 2TB ECC LRDIMM 2666/2400/2133 MHz 6-Channel |
Video | Aspeed AST2500 with 64MB VRAM |
Storage Technology | 12 x SATA3 Ports M.2: PCI-E 3.0 x4 or SATA3 |
Connectivity | 2 x Intel X722 Controller 1 x Marvell 8E1514 PHY Management Port |
Expansion | 1 x PCI-E 3.0 x16 slot (Full Height, Half Length) 1 x PCI-E 3.0 x8 slot (Full Height, Half Length) 1 x OCP 2.0 Mezzanine (Gen 3 x16 Link) |

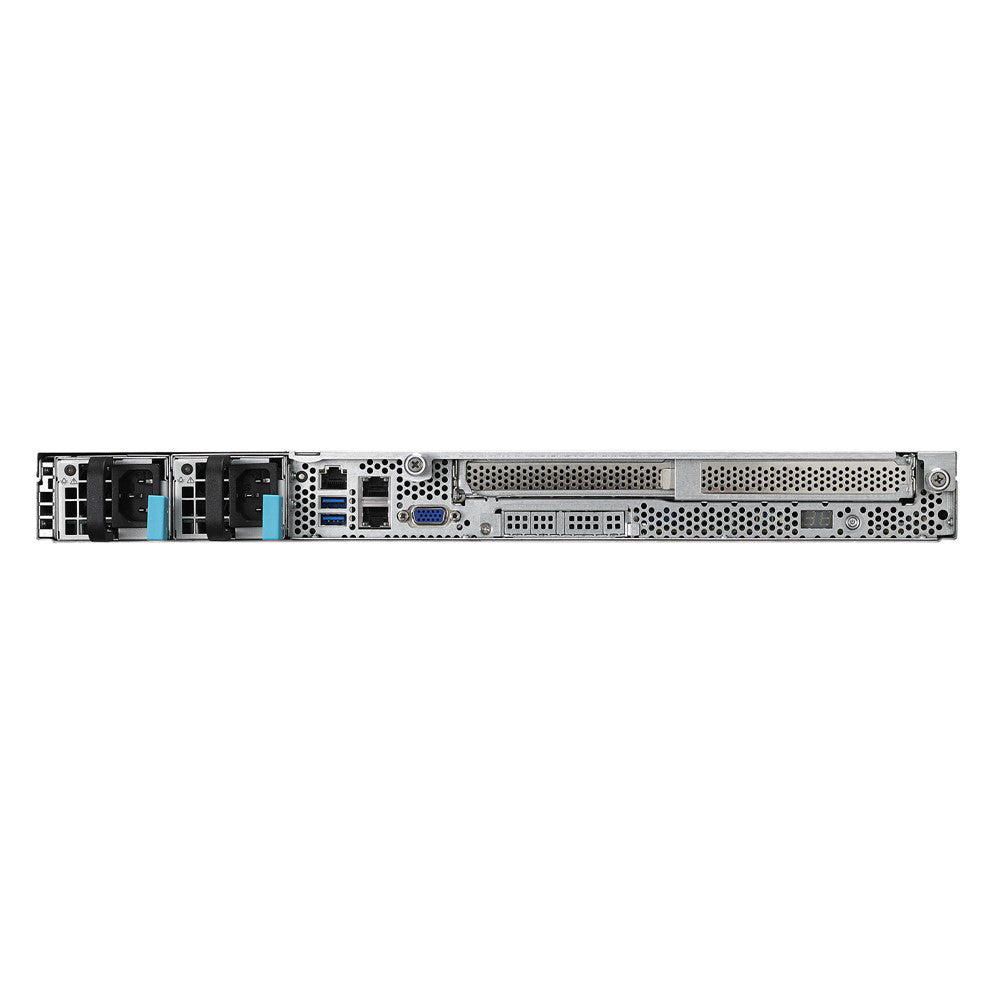

Rear I/O | 1 x RJ45 Management Port 2 x USB 3.0 2 x RJ45 GbE LAN 1 x VGA 1 x W-Code/Port 80 LED 1 x Power Switch/LED |
Front Panel I/O | 6 x Status LED (LAN, Status) 1 x Power Switch w/ LED 1 x Location Switch w/ LED 1 x Reset Switch 2 x USB 3.0 1 x VGA |
Drive Support | 4 x 3.5" SATA Drive Bays SAS Supported with HBA Card |
Power Supply | 770W 1+1 Redundant 80 PLUS Platinum Power Supply 100-240Vac, 50-60Hz, 10A/5A |
Cooling | 6 x 40x56mm Fans |
Case Dimensions | 1U Form Factor 616 x 444 x 44mm 24.3" x 17.5" x 1.7" (in inches) Net Weight: 24.3lbs, 11kg Gross Weight: 37.5lbs, 17kg |
Environmental | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Non-operating Humidty: 20% to 90% (non-condensing) |
Compliance | BSMI, CE, FCC |
Warranty | 1 Year Manufacturer's Limited Warranty |
