| Manufacturer | Gigabyte |
| Product ID | R182-Z90 |
| CPU |
Supports 2 x AMD EPYC 7002/7001 Series Processor Socket SP3 Max TDP 225W, cTDP 240W Conditional support for 280W TDP CPU TDP is limited to 225W if using M.2 device |
| Chipset | SoC |
| Memory |
32 x DDR4 DIMM slots Supports up to 2048GB ECC RDIMM Supports up to 4096GB ECC LRDIMM 8-Channel 3200/2933 MHz |
| Video |
Aspeed AST 2500 2D Video Graphic Adapte with PCIe bus interface 1920x1200@60Hz 32bpp |
| Storage Technology |
SATA3 6.0Gb/s ports Backplane supports SAS/SATA |
| Connectivity |
2 x Intel I350-AM2 GbE LAN 1 x Management LAN |
| Expansion Slots |
2 x PCI-E 4.0 x16 slot (Full Height, Half Length) 1 x OCP 3.0 Mezzanine slot (PCI-E 4.0 x16 bandwidth, Supported NCSI function) 1 x OCP 2.0 Mezzanine slot (PCI-E 3.0 x8 bandwidth, Supported NCSI function) |

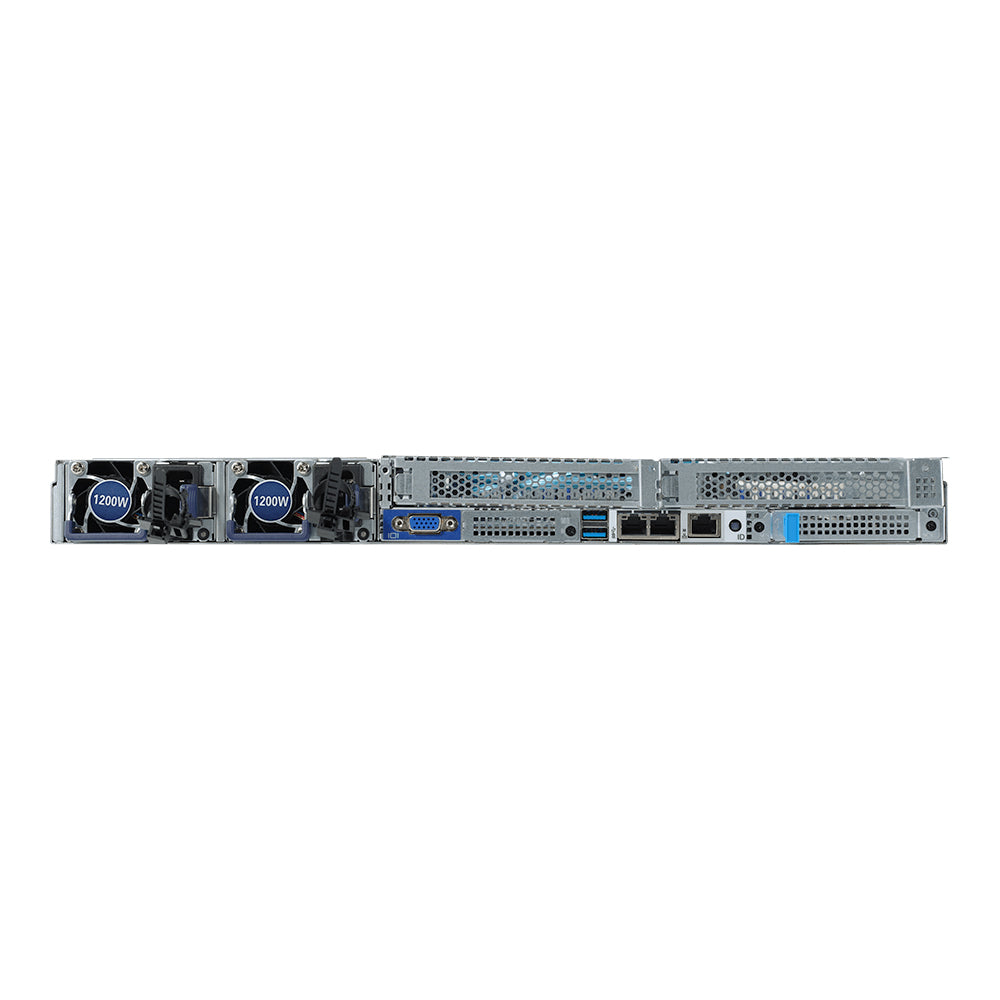

| Rear Panel I/O |
1 x VGA 2 x USB 3.0 2 x RJ45 GbE LAN 1 x Management LAN 1 x ID Button with LED |
| Front Panel I/O |
2 x USB 3.0 1 x NMI Button 1 x Reset Button 4 x Status LED (System, HDD, LAN) 1 x ID Button with LED 1 x Power Button with LED |
| Drive Support |
4 x 3.5"/2.5" Hot Swap SATA Drive Bays (Front) 1 x M.2 22110/2280/2260/2242 slot (PCI-E 3.0 x4) |
| Cooling | 8 x 40x56mm 23000 RPM System Fans |
| Power Supply |
1200W Redudnant 80 PLUS Platinum Power Supply AC Input: 100-240Vac / 12-7A, 50-60Hz DC Input: 240Vdc, 6A DC Output 100-240V: 1000W, +12V/80.5A, +12Vsb/3A DC Output 200-240V or 240Vdc: 1200W, +12V/97A, +12Vsb/3A |
| Case Dimensions |
1U Rackmount 438 x 43.5 x 730mm 17.2" x 1.7" x 28.7" (in inches, Approximate) |
| Environmental |
Operating Temperature: 10°C to 35°C (50°F to 95°F) Note: Limited to 30°C/86°F if using 280W Processor Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Humidity: 8% to 80% (non-condensing) Non-operating Humidty: 20% to 95% (non-condensing) |
| Warranty | 3-Year Manufacturer's Limited Warranty |
PRODUCT ID: R182-Z90
