Manufacturer | ASUS |
Model Name | PN62S |
Product ID | PN62S-BB7000XFD3 |
CPU |
Intel Core i7-10710U Processor 6 Cores / 12 Threads 1.10 - 4.70 GHz 15W TDP, 12 MB Intel Smart Cache |
Chipset | SoC |
Memory |
2 x DDR4 DIMM slots Maximum 64GB Capacity 2666 MHz Minimum Non-ECC, Unbuffered Memory Only |
Video |
Intel UHD Graphics 300 MHz - 1.15 GHz DisplayPort Max Resolution: 4096x2304@60Hz HDMI Max Resolution: 4096x2304@24Hz Supports 3 Displays |
Audio | Realtek ALC3236-VB2 HD Audio |
Storage Technology |
1 x SATA3 6.0 GB/s Ports M.2: PCI-E 3.0 x4 and SATA mode |
Connectivity |
1 x Intel WGI219V GbE LAN Intel Wi-Fi 6 Dual Band 2.4/5GHz Bluetooth 5.0 |
Expansion Slots | N/A |

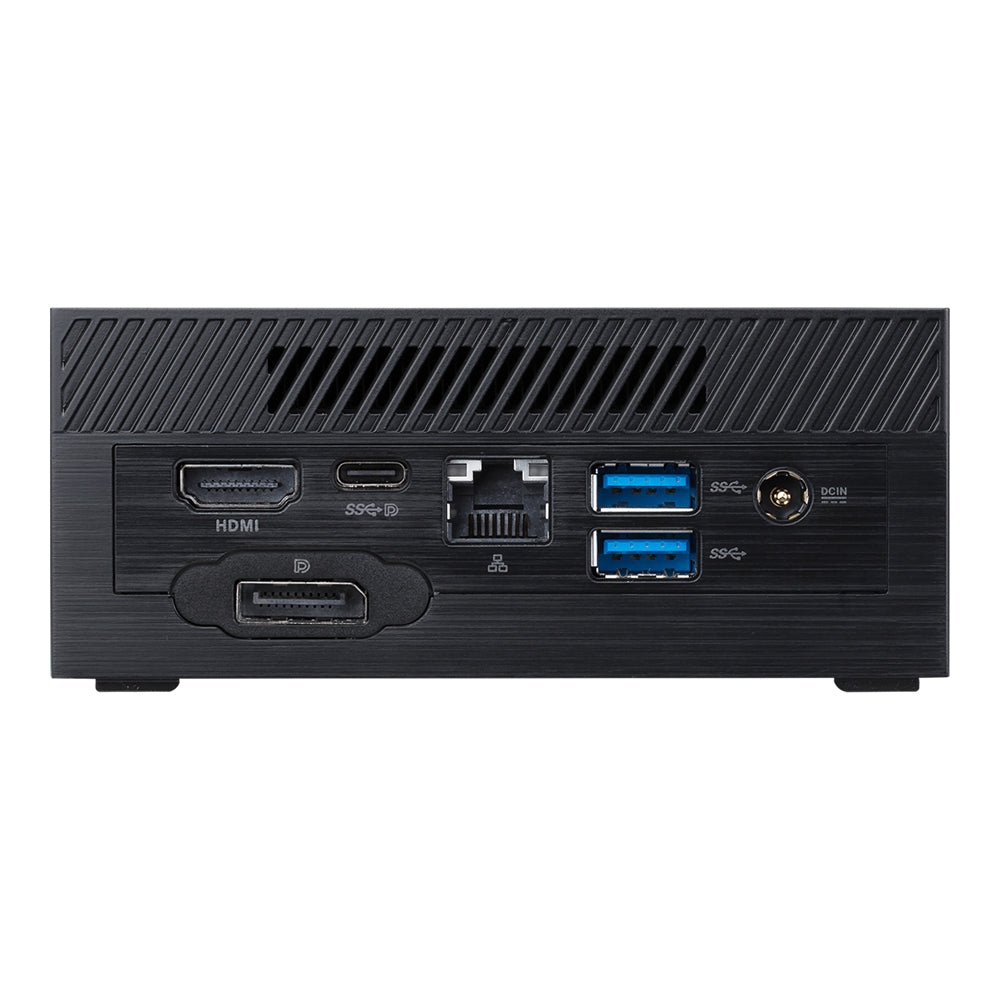

Rear Panel I/O |
1 x HDMI 1 x DisplayPort (Configurable Port) 1 x USB 3.2 (Gen2) Type-C 1 x Intel RJ45 GbE LAN 2 x USB 3.2 (Gen1) Type-A 1 x 19V DC-IN |

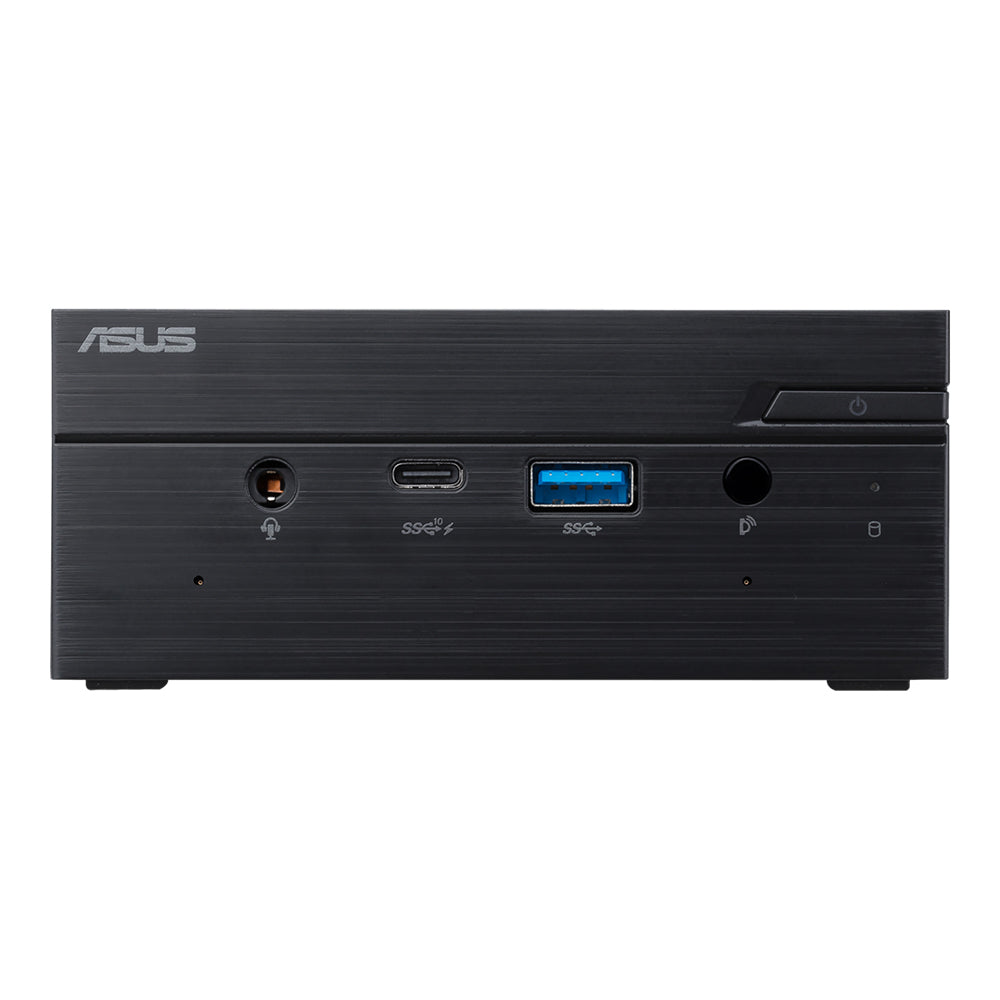

Front Panel I/O |
1 x 3.5mm Audio In 1 x USB 3.2 (Gen2) Type-C w/ Quick Charge 1 x USB 3.2 (Gen1) Type-A 1 x IR Reader 1 x Power Button w/ LED 1 x HDD LED 2 x Microphone Array |
Drive Support |
1 x 2.5" Drive Bay 1 x M.2 2242/2280 slot (PCI-E 3.0 x4, SATA) |
OS Support |
Windows 10 Windows 11 |
Power Supply |
19V DC-IN 65W AC/DC Adapter |
Case Dimensions |
115 x 115 x 49mm 4.5" x 4.5" x 1.9" (in inches) |
Mounting | VESA Mount |
Compliance | BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI |
Warranty | 1-Year Warranty on Parts and Labor |
