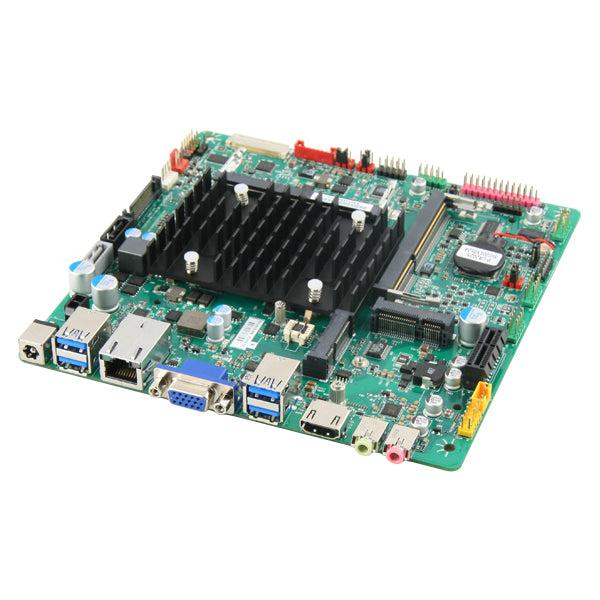

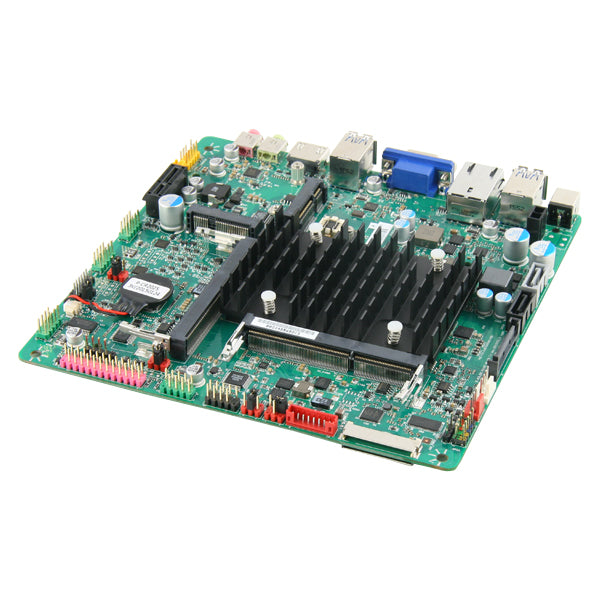

Mitac PD10RI-P Intel Braswell Pentium N3710 Thin Mini-ITX Motherboard
Manufacturer	MITAC
Model Number	PD10RI
Part Number	PD10RI-P
CPU	Intel Pentium N3710 1.6 - 2.56GHz Quad Core 4 Cores / 4 Threads 6W TDP, 2MB Cache, 64-bit
Chipset	SoC
Memory	2 x 204-pin DDR3L SODIMM Maximum 8GB capacity 1600MHz Minimum
Video	Intel HD Graphics 405 Intel Gen8 Intel Graphics DX 11, OGL3.2 400 - 700 MHz Supports three independent displays
Audio	Realtek ALC888S HD Audio 2 + 2 Channel
Storage	2 x SATA3 6.0Gb/s 1 x mSATA/Mini PCI-E slot Tip: mSATA is multiplexed with SATA port
Connectivity	1 x Realtek RTL8111G-CG GbE 10/100/1000
Expansion Slots	1 x PCI-E x1 (3.0) 1 x mSATA/Mini PCI-E slot (full size) 1 x Mini PCI-E slot (half size)
Power	8~24V Barrel DC-IN (2.5mm/5.5mm)
Rear Panel I/O	1 x 8~24V DC-IN 4 x USB 3.0 1 x RJ45 1 x VGA 1 x HDMI 2 x Audio I/O
Onboard I/O Headers	1 x USB 2.0 header (Supports up to 2 ports) 1 x USB 2.0 header (Suppoerts 1 port) 2 x Serial COM header (RS232) 1 x Parallel port header 1 x MiAPI header 1 x LVDS 40-pin header 1 x eDP 40-pin header 2 x Fan header
Special Features	Supports Wake on LAN, Wake on RTC, USB remote wake
Form Factor	Thin Mini-ITX 170mm x 170mm (6.7" x 6.7")
BIOS	64Mb AMI UEFI BIOS ACPI 2.0 Support, PnP, DMI 2.0, WfM 2.0, Power Management
Warranty	1-Year Manufacturer's Warranty
Compliance	CE, FCC, RoHS, REACH
Environmental	Operating Temperature: 0 ~ 60 C Storage Temperature: -20 ~ 60 C
Included in Box	MITAC PD10RI-D Thin Mini-ITX Motherboard 1 x I/O Shield 1 x Thin I/O Shield 1 x Driver Disc 1 x Manual 2 x SATA Cables
