Manufacturer |
Intel
|
Product ID |
NUC8v7PNB
|
CPU |
Intel Core i7-8665U Processor
1.90 - 4.10 GHz
4 Cores / 8 Threads
15W TDP, 6MB Smart Cache
Supports vPro
|
Chipset |
SoC
|
Memory |
2 x DDR4 SODIMM slots
Maximum 64GB Capacity
2400 MHz Minimum
Dual Channel
Non-ECC, Unbuffered Memory Only
|
Video |
Intel UHD Graphics 620
300 MHz - 1.15 GHz
32GB Graphics Video Max Memory
HDMI Max Resolution: 4096x2304@24Hz
Supports Triple Display va Thunderbolt 3
|
Audio |
7.1 Channel Audio via HDMI
|
Storage Technology |
1 x M.2 slot: SATA or PCI-E 3.0 x4
1 x SATA3 6.0Gb/s Connector
|
Connectivity |
1 x Intel i219-LM GbE LAN
|
Expansion Slots |
1 x M.2 2230 slot (E Key, for Wireless)
|

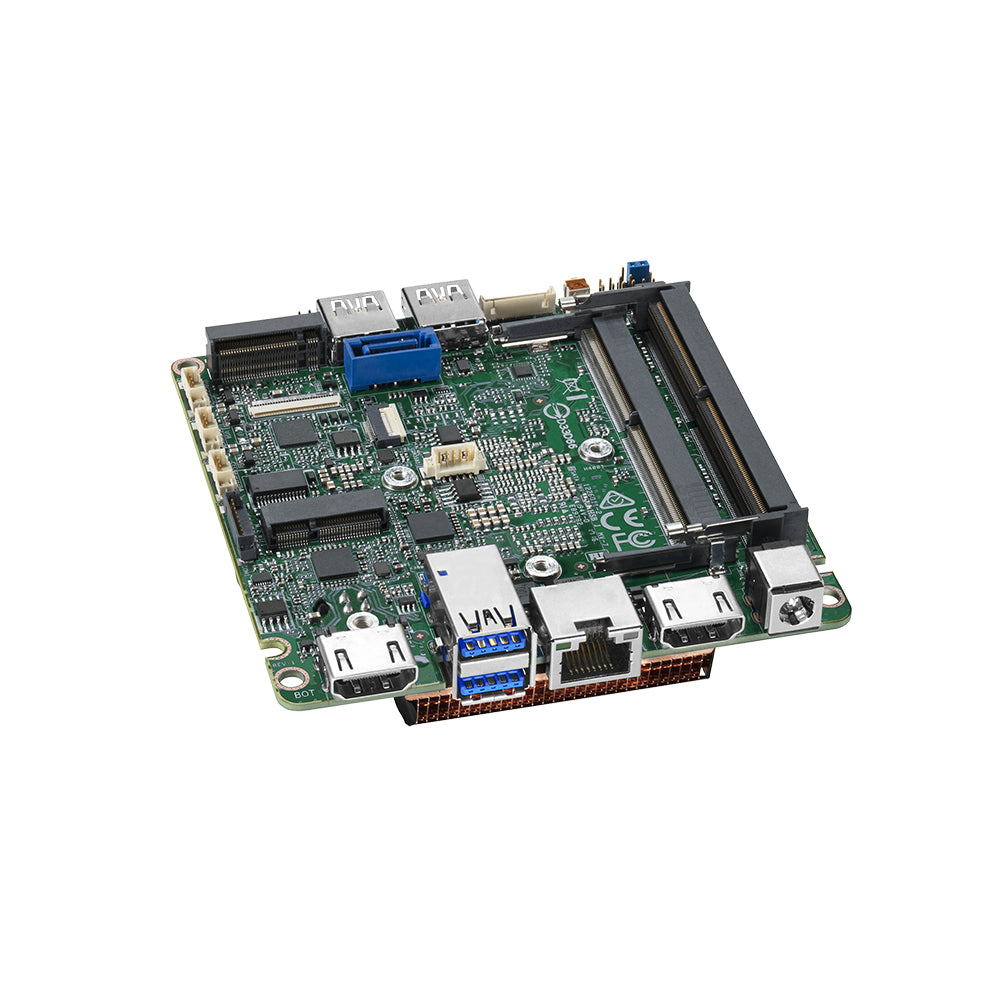

Rear Panel I/O |
1 x Ground Screw
1 x 12-24V DC-IN
1 x HDMI
1 x RJ45 GbE LAN
1 x USB 3.1 (Gen2)
1 x USB 2.0
1 x USB 3.1 Type-C (Thunderbolt 3)
1 x HDMI
|
Front Panel I/O |
2 x USB 3.1 (Gen2)
|
Onboard I/O Headers |
1 x USB 3.0 header
1 x USB 2.0 header (Supports 2 USB ports)
1 x Serial header
1 x AUX_PWR Connector
1 x CEC header
1 x eDP Connector
|
Power Supply |
12-24V DC-IN
|

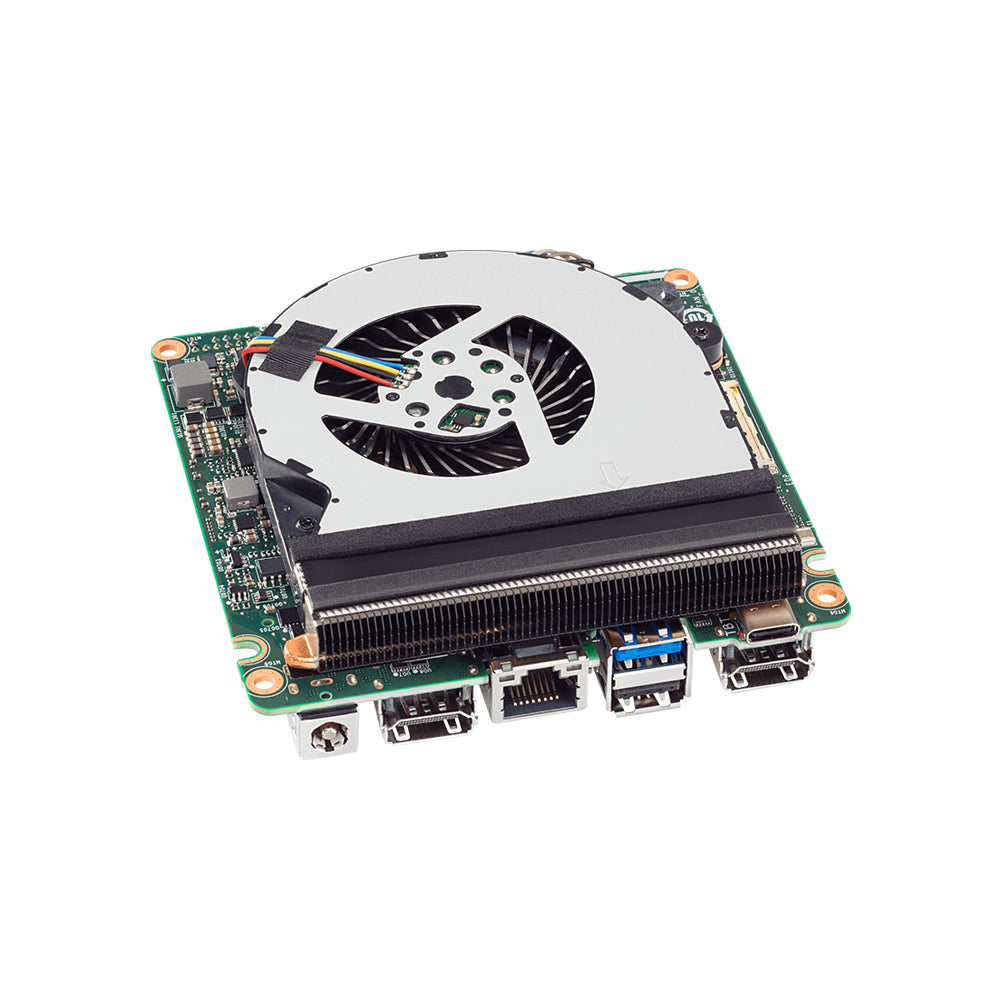

Cooling |
Heatsink and Fan
|
Case Dimensions |
4.0" x 4.1" (in inches)
102 x 104mm
|
Environmental |
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Non-operating Temperature: -20°C to 60°C (-4°F to 140°F)
|
Compliance |
RoHS Directive 2011/65/EU
WEEE Directive 2012/19/EU
China RoHS
|
Warranty |
3-Year Manufacturer's Limited Warranty
|
