Manufacturer |
Intel |
Product ID |
NUC8v5PNB |
CPU |
Intel Core i5-8365U Processor 1.60 - 4.10 GHz 4 Cores / 8 Threads 15W TDP, 6MB Smart Cache Supports vPro |
Chipset |
SoC |
Memory |
2 x DDR4 SODIMM slots Maximum 64GB Capacity 2400 MHz Minimum Dual Channel Non-ECC, Unbuffered Memory Only |
Video |
Intel UHD Graphics 620 300 MHz - 1.10 GHz 32GB Graphics Video Max Memory HDMI Max Resolution: 4096x2304@24Hz Supports Triple Display va Thunderbolt 3 |
Audio |
7.1 Channel Audio via HDMI
|
Storage Technology |
1 x M.2 slot: SATA or PCI-E 3.0 x4 1 x SATA3 6.0Gb/s Connector |
Connectivity |
1 x Intel i219-LM GbE LAN
|
Expansion Slots |
1 x M.2 2230 slot (E Key, for Wireless) |
Rear Panel I/O |
1 x Ground Screw 1 x 12-24V DC-IN 1 x HDMI 1 x RJ45 GbE LAN 1 x USB 3.1 (Gen2) 1 x USB 2.0 1 x USB 3.1 Type-C (Thunderbolt 3) 1 x HDMI
|
Front Panel I/O |
2 x USB 3.1 (Gen2) |
Onboard I/O Headers |
1 x USB 3.0 header 1 x USB 2.0 header (Supports 2 USB ports) 1 x Serial header 1 x AUX_PWR Connector 1 x CEC header 1 x eDP Connector
|
Power Supply |
12-24V DC-IN
|
Cooling |

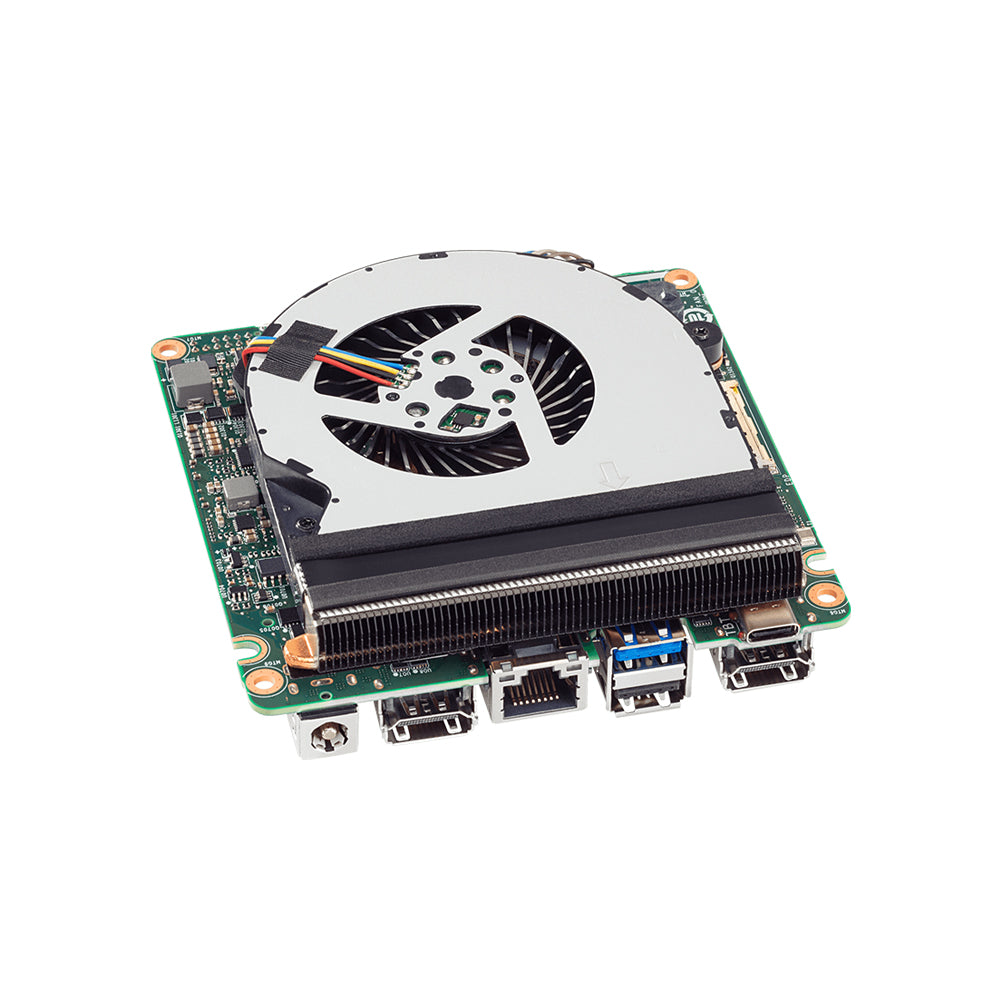

Heatsink and Fan |
Case Dimensions |
4.0" x 4.1" (in inches) 102 x 104mm |
Environmental |
Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -20°C to 60°C (-4°F to 140°F) |
Compliance |
RoHS Directive 2011/65/EU WEEE Directive 2012/19/EU China RoHS |
Warranty |
3-Year Manufacturer's Limited Warranty |
