Manufacturer	Intel
Product ID	NUC8I3PNB
CPU	Intel Core i3-8145U Processor 2.10 - 3.90 GHz 2 Cores / 4 Threads 15W TDP, 4MB Smart Cache
Chipset	SoC
Memory	2 x DDR4 SODIMM slots Maximum 64GB Capacity 2400 MHz Minimum Dual Channel Non-ECC, Unbuffered Memory Only
Video	Intel UHD Graphics 620 300 MHz - 1.0 GHz 32GB Graphics Video Max Memory HDMI Max Resolution: 4096x2304@24Hz Supports Triple Display va Thunderbolt 3
Audio	7.1 Channel Audio via HDMI
Storage Technology	1 x M.2 slot: SATA or PCI-E 3.0 x4 1 x SATA3 6.0Gb/s Connector
Connectivity	1 x Intel i219-LM GbE LAN
Expansion Slots	1 x M.2 2230 slot (E Key, for Wireless)
Rear Panel I/O	1 x Ground Screw 1 x 12-24V DC-IN 1 x HDMI 1 x RJ45 GbE LAN 1 x USB 3.1 (Gen2) 1 x USB 2.0 1 x USB 3.1 Type-C (Thunderbolt 3) 1 x HDMI
Front Panel I/O	2 x USB 3.1 (Gen2)
Onboard I/O Headers	1 x USB 3.0 header 1 x USB 2.0 header (Supports 2 USB ports) 1 x Serial header 1 x AUX_PWR Connector 1 x CEC header 1 x eDP Connector
Power Supply	12-24V DC-IN

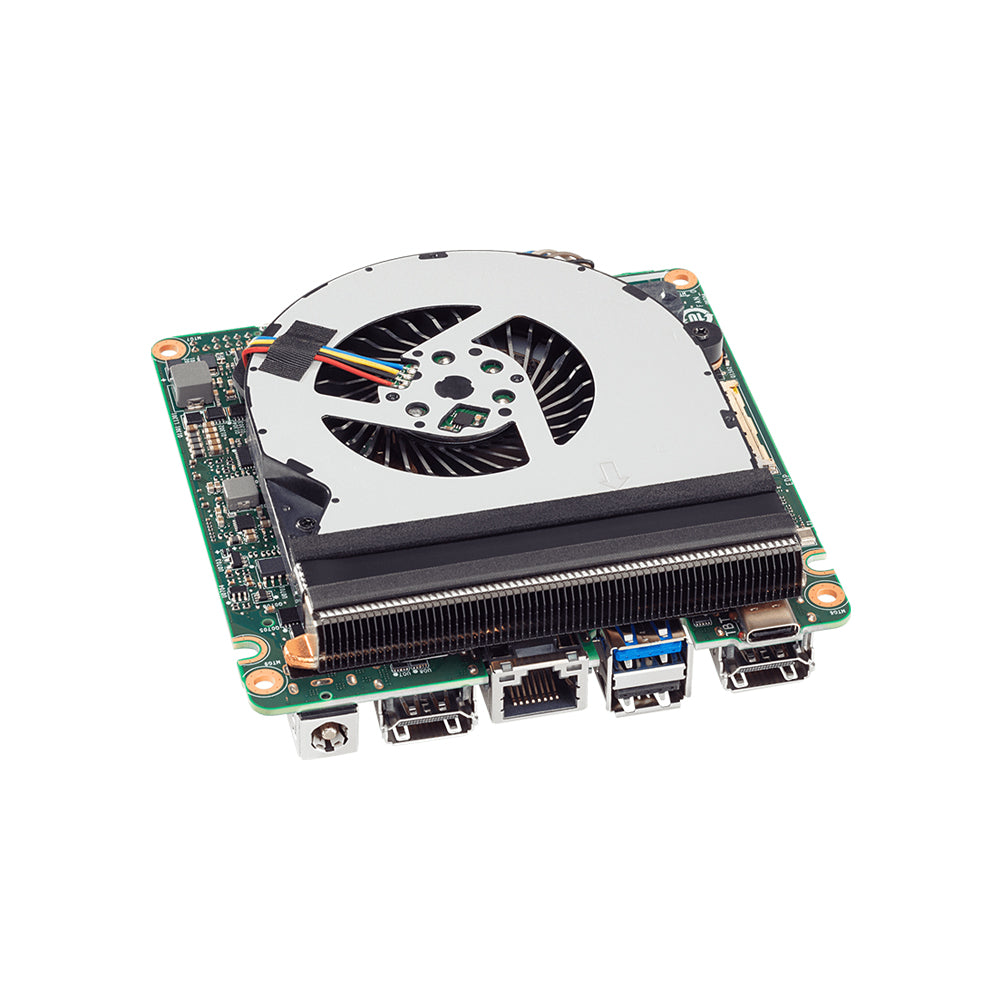

Cooling	Heatsink and Fan
Case Dimensions	4.0" x 4.1" (in inches) 102 x 104mm
Environmental	Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -20°C to 60°C (-4°F to 140°F)
Compliance	RoHS Directive 2011/65/EU WEEE Directive 2012/19/EU China RoHS
Warranty	3-Year Manufacturer's Limited Warranty
