| Manufacturer | Intel |
| Product ID | NUC8CCHKR |
| CPU |
Intel Celeron N3350 Processor 2 Cores / 2 Threads 1.10 - 2.40 GHz 6W TDP, 2MB L2 Cache |
| Chipset | SoC |
| Memory |
4 GB Memory (soldered-down) Dual Channel |
| Video |
Itnel HD Graphics 500 200 - 650 MHz Supports Dual Display |
| Audio |
7.1 Multichannel Digitial Audio Via HDMI Analog Audio Stereo Output Jack |
| Storage Technology |
64GB eMMC Storage (soldered-down) M.2: PCIe x4 NVMe or SATA |
| Connectivity |
1 x Intel i211-AT Gbe LAN Intel Wireless AC 3268 |
| Expansions |
1 x Internal USB 3.0 header 2 x Internal USB 2.0 headers 1 x RS232 Serial Port header 1 x EDID Emulation 1 x Dual HDMI with Built-in CEC |

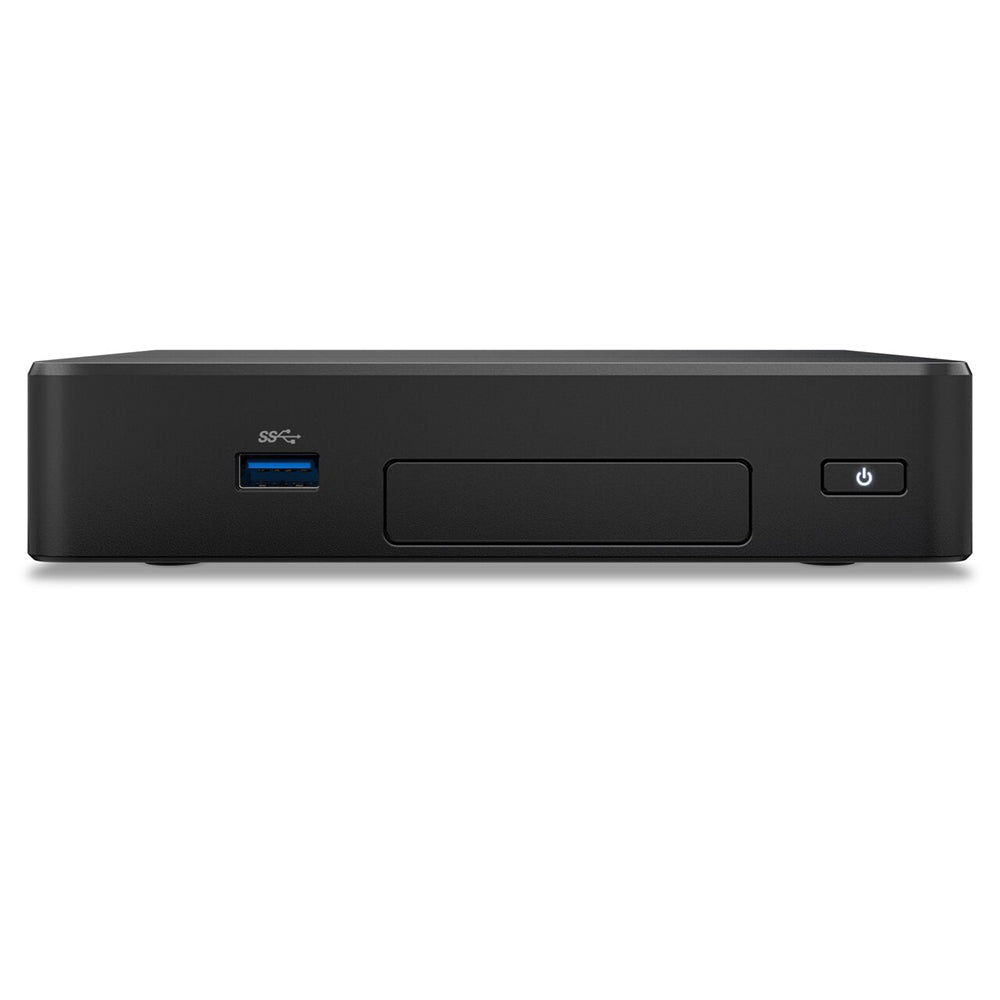

| Front Panel I/O |
1 x USB 3.0 1 x Power Button w/ LED |
| Side Panel I/O | 1 x Kensington Lock |

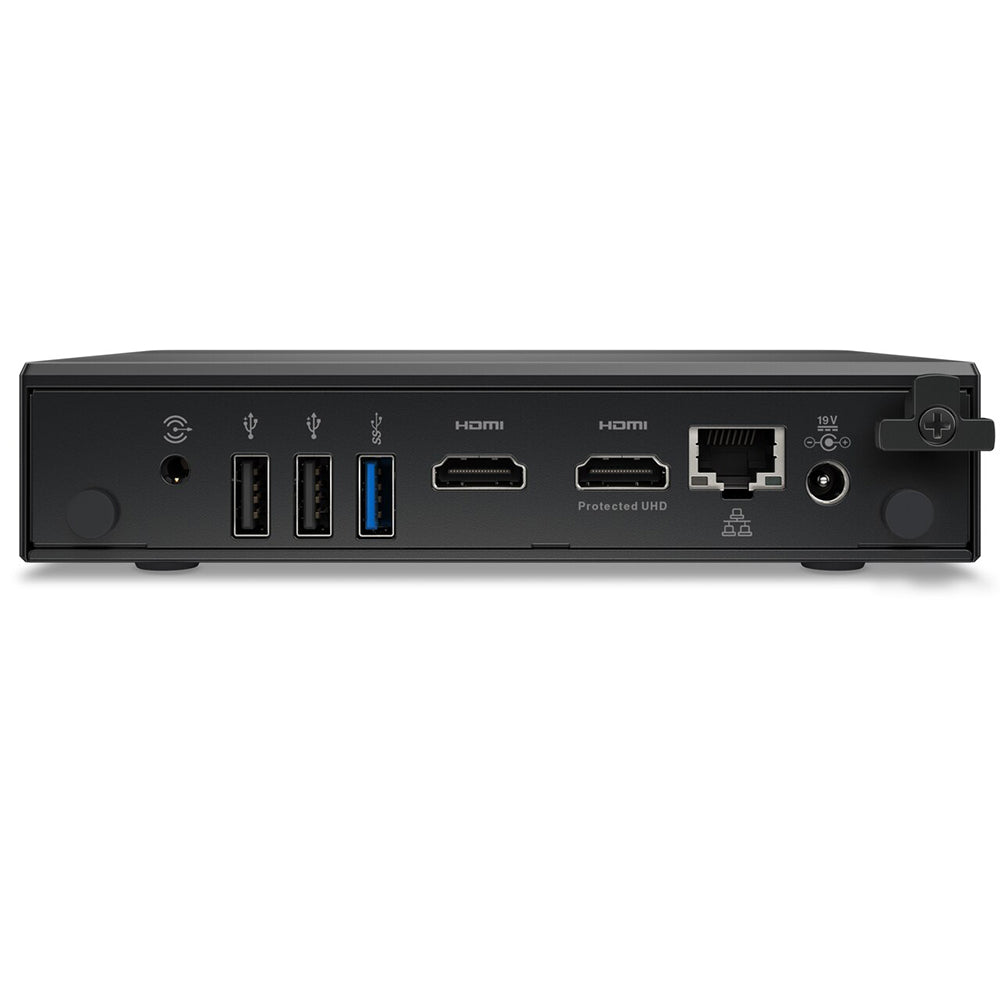

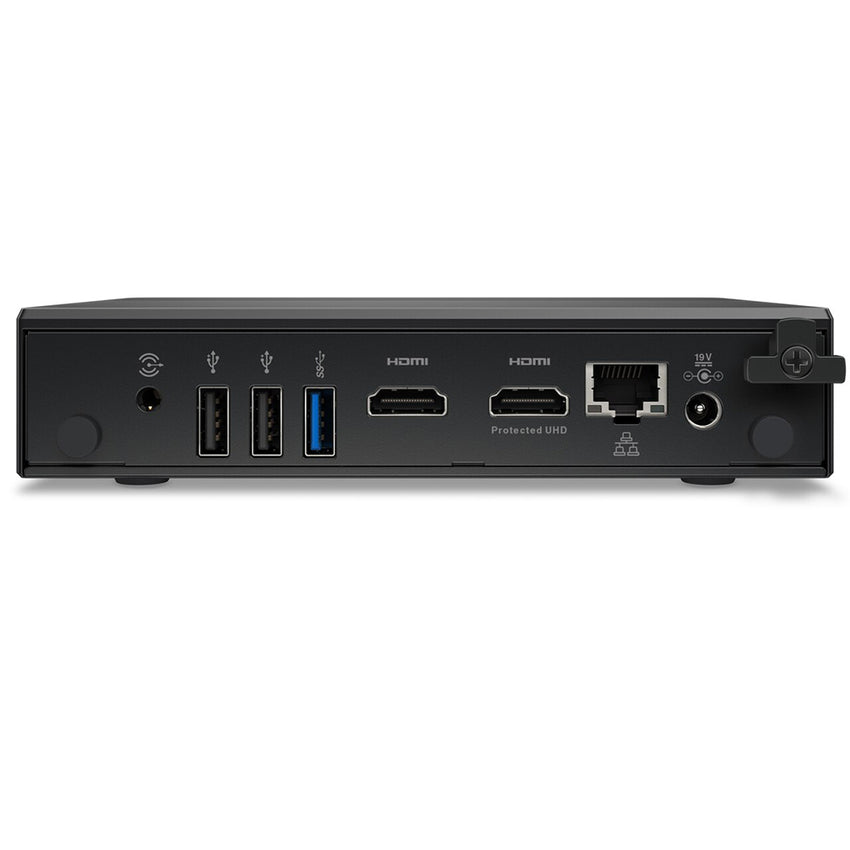

| Rear Panel I/O |
1 x Audio Output Jack 2 x USB 2.0 1 x USB 3.0 2 x HDMI 1 x RJ45 GbE LAN 1 x 12-24V DC-IN |
| Drive Support |
64GB eMMC Storage (soldered-down) 1 x M.2 2280 slot (M key, PCIe x4 NVME or SATA) |
| Power Supply |
12-24V DC-IN 19V 65W Power Supply |
| Case Dimensions |
6.06" x 4.25" x 1.25" 154 x 108 x 32mm |
| Environmental |
Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-Operating Temperature: -20°C to 40°C (-4°F to 104°F) |
| Compliance | EU RoHS, China RoHS, Taiwan BSMI RoHS, REACH |
| Warranty | 3-Year Manufacturer's Limited Warranty |
PRODUCT ID: NUC8CCHKR
