| Manufacturer |
Intel |
| Product ID |
NUC11TNHv50L |
| CPU |
Intel Core i5-1145G7 Processor
2.6 - 4.4 GHz
4 Cores / 8 Threads
28W TDP, 8MB Cache
Supports vPro |
| Chipset |
SoC |
| Memory |
2 x DDR4 SODIMM slots
Maximum 64GB capacity
2133/2400/3200MHz
Dual Channel
Non-ECC, Unbuffered Memory Only
Note: 2Gb and 4Gb SDRAM Density not supported |
| Video |
Intel Iris Xe Graphics
1.30 GHz
HDMI Max Resolution: 4096x2304@60Hz
DisplayPort via USB-C Max Resolution: 7680x4320@60Hz
Supports up to Four Displays
|
| Audio |
Intel HD Audio via HDMI and USB-C
|
| Storage Technology |
SATA3: 6Gb/s
M.2 2280: PCI-E 3.0 x4 |
| Connectivity |
2 x Intel I225-LM 2.5GbE LAN
Intel Wi-Fi AX201 (vPro Capable)
802.11ax, Dual Band, 2x2 Wi-Fi + Bluetooth 5.1 |
| Expansion Slots |
2 x Thunderbolt 3 via USB-C Connectors
|

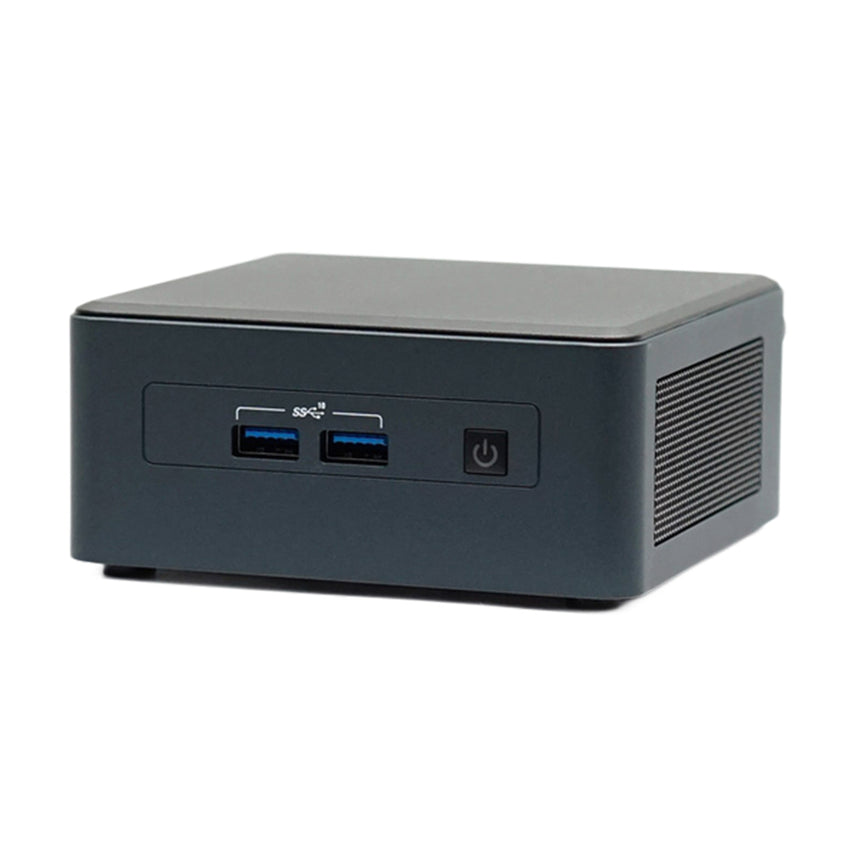

| Front Panel I/O |
2 x USB 3.2 (Gen2)
1 x Power Button w/ LED
|

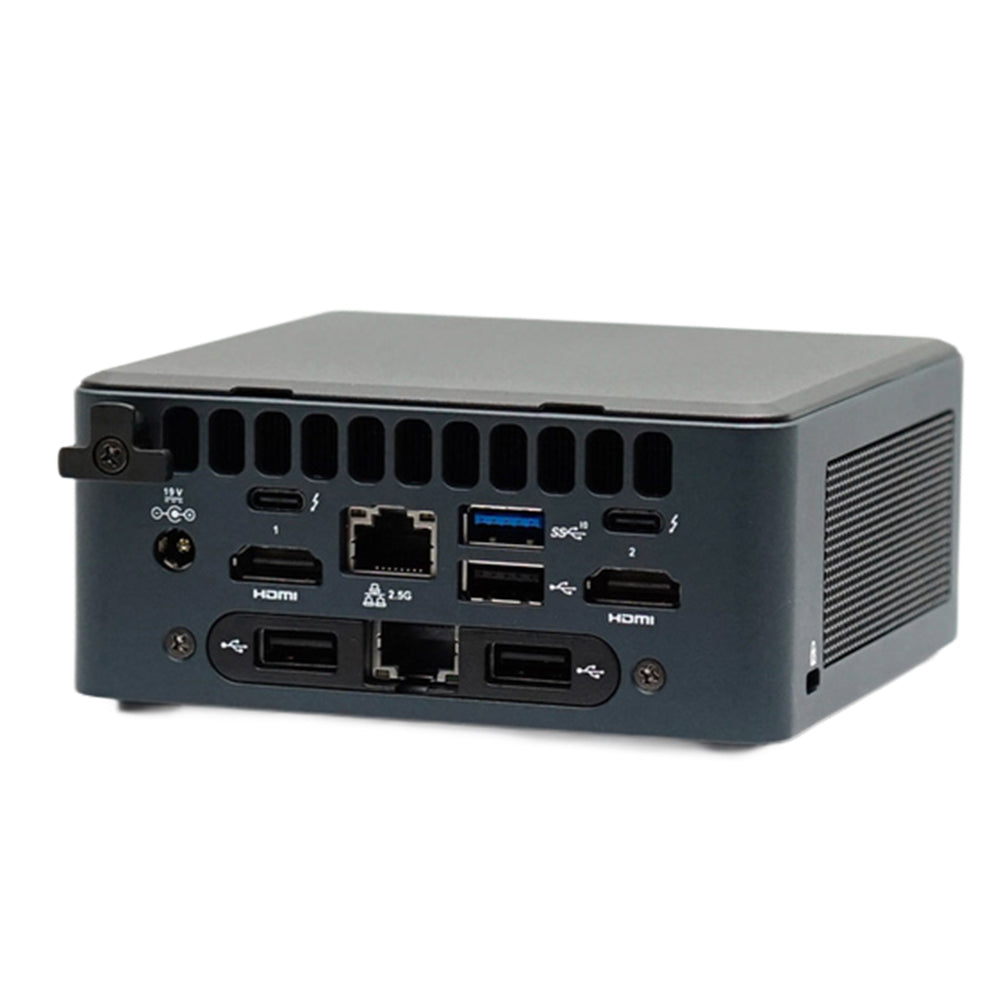

| Rear Panel I/O |
1 x 12-24V DC-IN
1 x Thunderbolt 4 USB-C Port
2 x HDMI
1 x RJ45 2.5GbE LAN
1 x USB 3.2 (Gen2)
1 x USB 2.0
1 x Thunderbolt 3 USB-C Port
2 x USB 2.0
1 x RJ45 2.5GbE LAN |
| Drive Support |
1 x 2.5" Drive Bay (Max 7mm height)
1 x M.2 2280 slot (M Key, PCI-E 3.0 x4)
|
| Power Supply |
12-24V DC-IN
120W 19V AC-DC Adapter |
| Case Dimensions |
117 x 112 x 54mm
4.61" x 4.41" x 2.13" (in inches)
|
| Environmental |
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Non-Operating Temperature: -20°C to 40°C (-4°F to 104°F) |
| Compliance |
EU RoHS, China RoHS, Taiwan BSMI RoHS, REACH |
| Warranty |
3-Year Manufacturer's Limited Warranty |
