Manufacturer	Intel
Product ID	NUC11PHKi7C001
CPU	Intel Core i7-1165G7 Processor 2.8 - 4.7 GHz 4 Cores / 8 Threads 28W TDP, 12MB Cache
Chipset	SoC
Memory	2 x DDR4 SODIMM slots Maximum 64GB capacity 3200MHz Dual Channel Non-ECC, Unbuffered Memory Only
Video	Nvidia GeForce RTX 2060 w/ 6GB GDDR6 Intel Iris X Graphics G7 Supports up to Four Displays via HDMI, Mini DP, 2 x Thunderbolt 4 Ports
Audio	Up to 7.1 Multi-Channel Digital Audio via HDMI or DisplayPort 3.5mm Front Stereo Headset Jack 3.5mm Rear Speaker/TOSLINK Combo Jack Beam-forming, far-field, quad-mic array, with Alexa support Front Consumer Infrared port
Storage Technology	M.2 2280/22110 slot: PCI-E 3.0 x4 M.2 2280 slot: PCI-E 3.0 x4 or SATA3 Intel Optane Memory M10 and H10 Ready SDXC slot with UHS-II support
Connectivity	1 x Intel i225-LM 2.5Gb LAN Intel Wireless-AX 201 IEEE 802.11ax 2x2/ Wi-Fi 6 + Bluetooth 5
Expansion Slots	2 x Thunderbolt 4 Ports (Intel Irix X Graphics) 5V/9V Fast Phone Charing Profiles

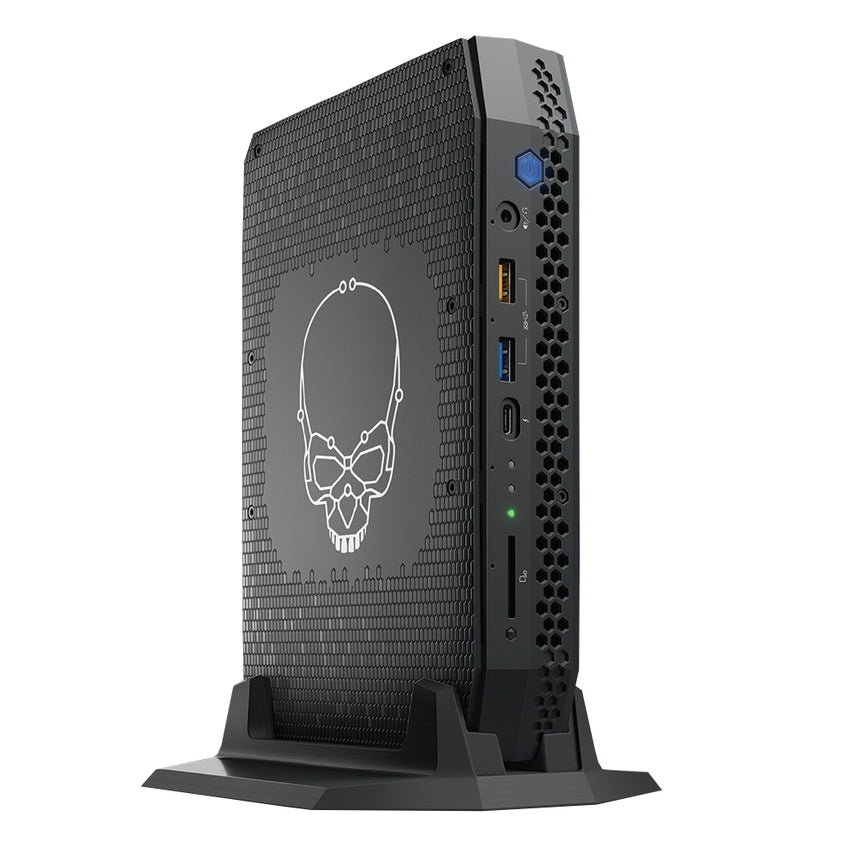

Front Panel I/O	1 x IR Sensor 1 x SDXC slot with UHS-II support 1 x Thunderbolt 4 USB-C Port 1 x USB 3.2 (Gen2) 1 x USB 3.2 (Gen2, 2A Peak Current) 1 x 3.5mm Audio 1 x Power Button with LED
Side Panel I/O	1 x Kensington Lock

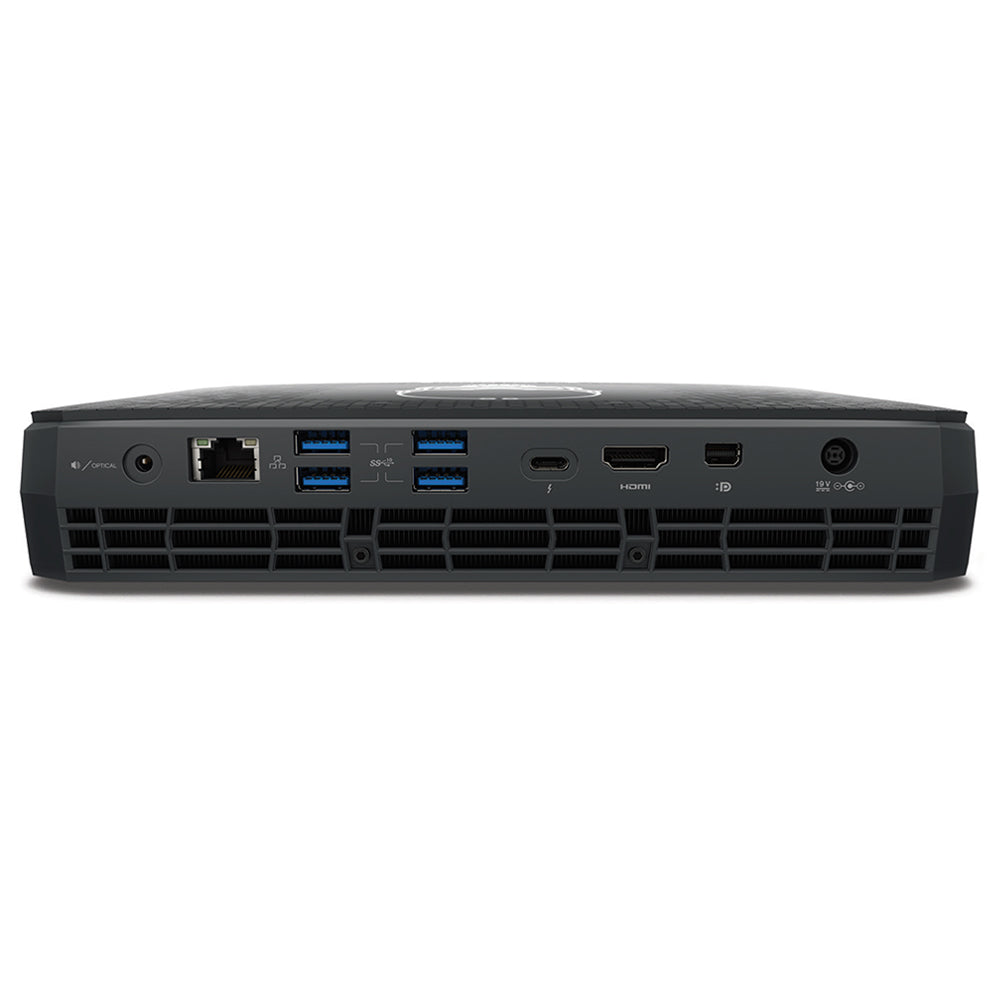

Rear Panel I/O	1 x Optical Audio port 1 x RJ45 2.5Gb Ethernet LAN 4 x USB 3.2 (Gen2) 1 x Thunderbolt 4 USB-C port 1 x HDMI 1 x Mini DisplayPort 1 x 19V DC-IN
Drive Support	1 x M.2 2280/2210 slot 1 x M.2 2280 slot 1 x SDXC slot
Power Supply	19V DC-IN 19V 230W AC-DC Adapter
Case Dimensions	221 x 142 x 42mm 8.70" x 5.59" x 1.65" (in inches)
Environmental	Operating Temperature: 0°C to 35°C (32°F to 95°F) Non-Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Compliance	EU RoHS, China RoHS, Taiwan BSMI RoHS, REACH
Warranty	3-Year Manufacturer's Limited Warranty
