Manufacturer	ASRock Industrial
Part Number	NUC-8365UE
CPU	Intel Core i5-8365UE Processor 1.6 - 4.1 GHz 4 Cores / 8 Threads 15W TDP, 6MB Intel SmartCache Supports vPro
Chipset	SoC
Memory	2 x DDR4 SODIMM Slots Maximum 32GB Capacity 2400MHz Dual Channel
Video	Intel UHD Graphics 620 300 MHz - 1.05GHz DisplayPort Max Resolution: 4096x2160@60Hz HDMI Max Resolution: 4096x2160@24Hz Supports Triple Displays
Audio	Realtek ALC233 HD Audio
Storage Technology	1 x SATA3 6Gb/s Ports 1 x M.2 2242/2260/2280 slot (PCIe x4/SATA, M Key) Note: M.2 in SATA Mode shared with SATA Port
Connectivity	1 x Intel I219LM GbE LAN with AMT/vPro Support 1 x Realtek RTL8111H GbE LAN
Expansion Slots	1 x M.2 2230 slot (PCIe x1, USB 2.0 for Wireless, E Key)
Power	12V DC-IN

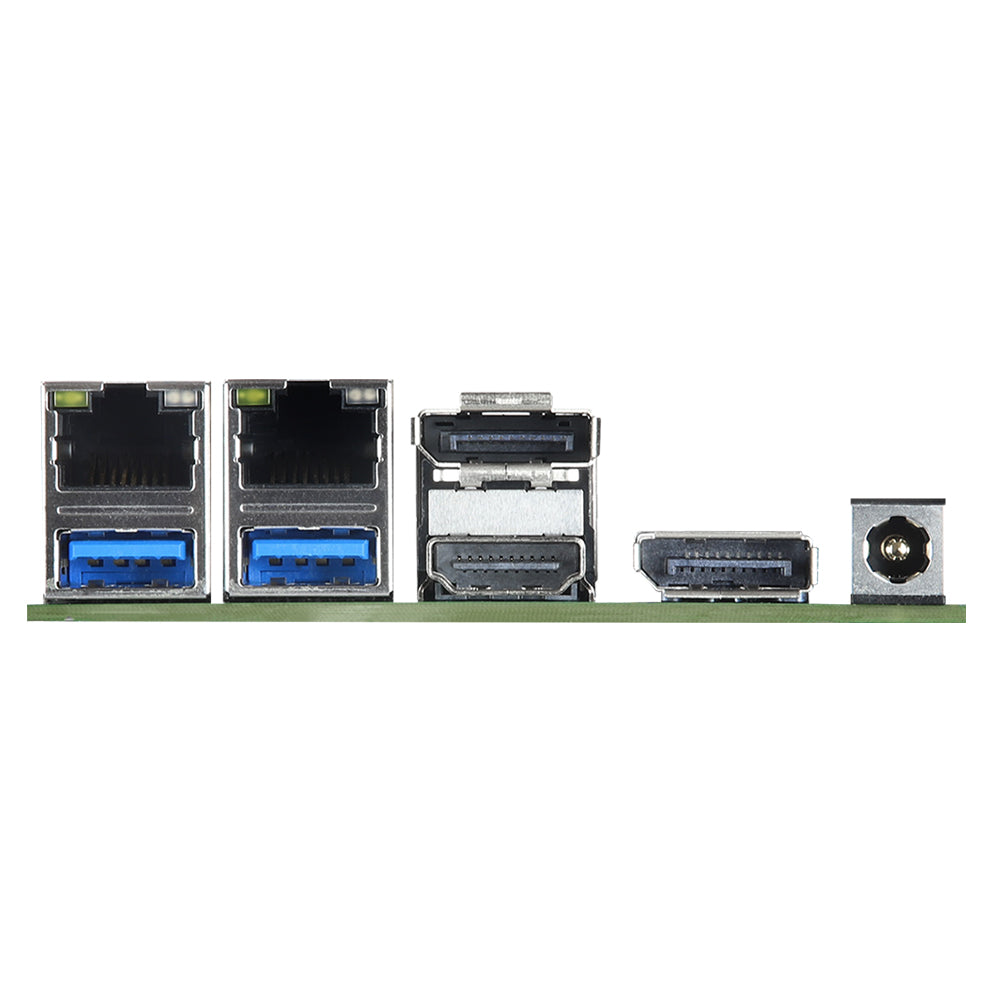

Rear I/O	2 x RJ45 GbE LAN 2 x USB 3.2 (Gen2) 2 x DisplayPort 1 x HDMI 1 x 12V DC-IN
Onboard I/O Headers	1 x USB 2.0 header (2.00mm pitch) 1 x COM header (RS232/422/485) 1 x Onboard TPM 2.0
Form Factor	NUC 4.09" x 4.02" (in inches) 104 x 102mm
Environmental	Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 5% to 90% (non-condensing) Non-Operating Humidity: 5% to 90% (non-condensing)
Warranty	1-Year Manufacturer's Limited Warranty
