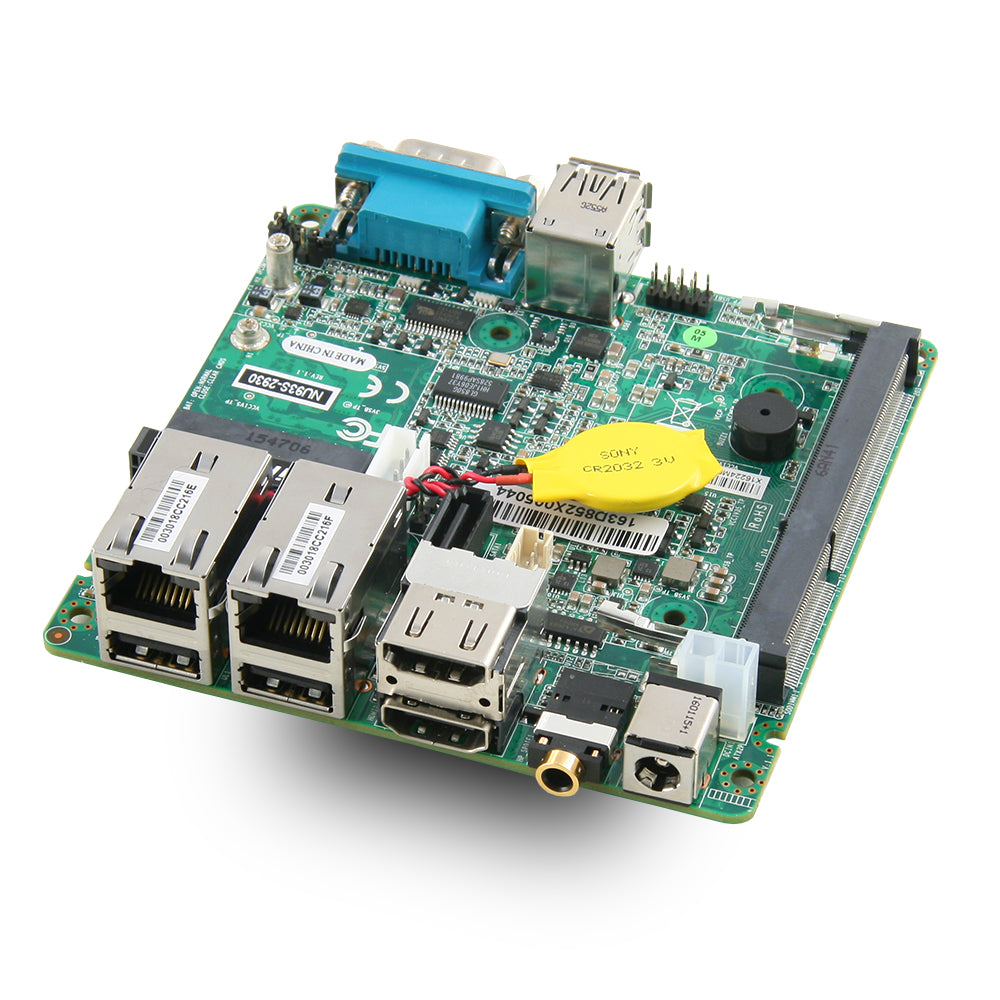

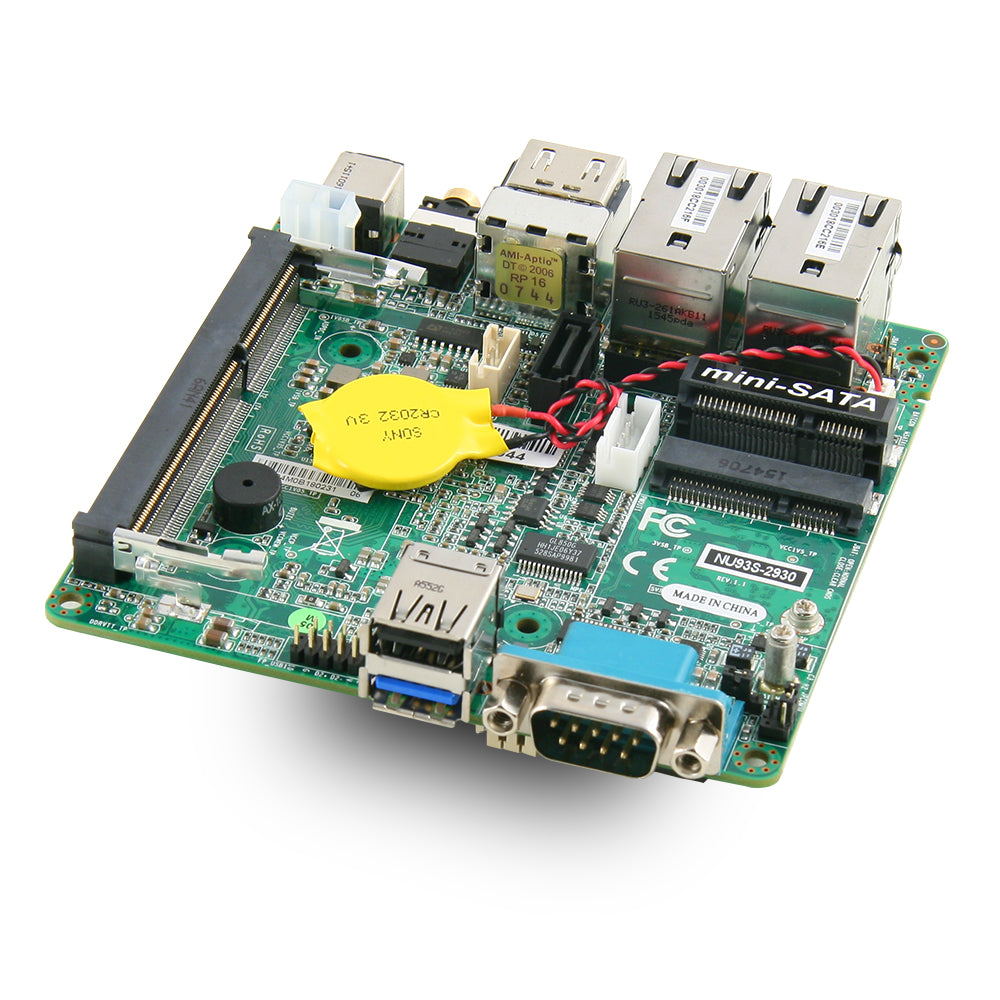

Jetway NU93-2930 Intel Celeron N2930 NUC Board w/ Dual Intel LAN & Wide Input 9 ~24V DC-IN
Manufacturer	Jetway
Part Number	JNU93-2930
Model Number	NU93-2930

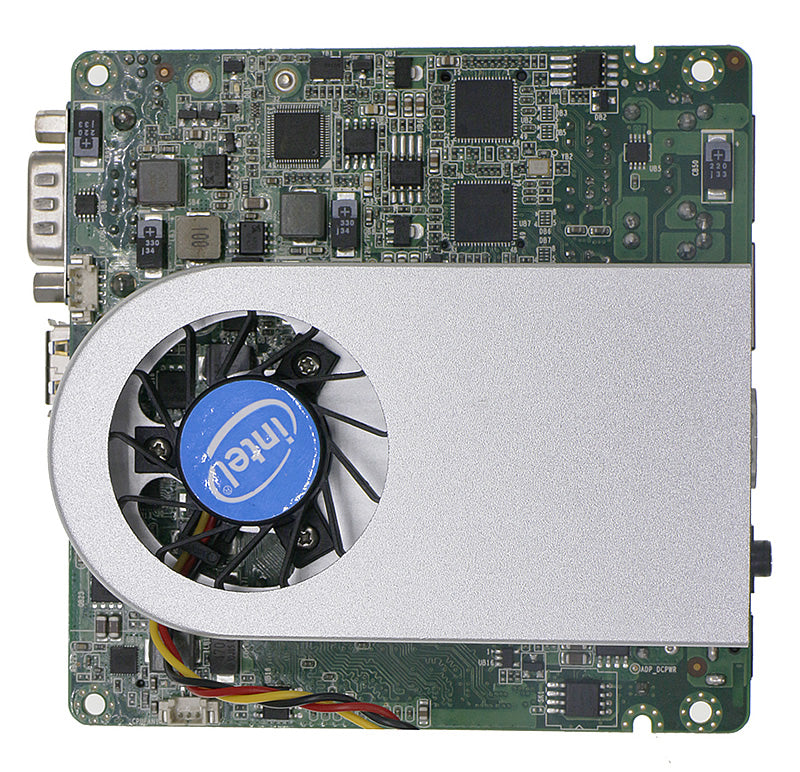

CPU	Intel Celeron N2930 1.83 - 2.16 GHz Quad Core 4 Cores / 4 Threads 7.5W TDP (4.5W SDP), 22nm, 2MB Cache, 64-bit Includes Active Cooling Fan for CPU
Chipset	SoC
Memory	1 x 204-pin DDR3L SODIMM Maximum 8GB capacity 1333MHz Minimum Low Voltage 1.35V Required
Video	Intel HD Graphics 313 - 854 MHz Supports Dual Display
Audio	ALC887 HD Audio S/PDIF Out
Storage	1 x SATA2 3.0Gb/s Drive 1 x mSATA Drive
Connectivity	2 x Intel 82583V GbE 10/100/1000 Mbps
Expansion Slots	1 x Mini PCI-E Slot (Half length)
Power	On-board DC-DC Converter 9-24V DC-IN barrel connector (~2.5/5.5mm) ATX12V 1 x 2 Power Connector (Molex 5566-2) Tip: Use only one DC-Power Source

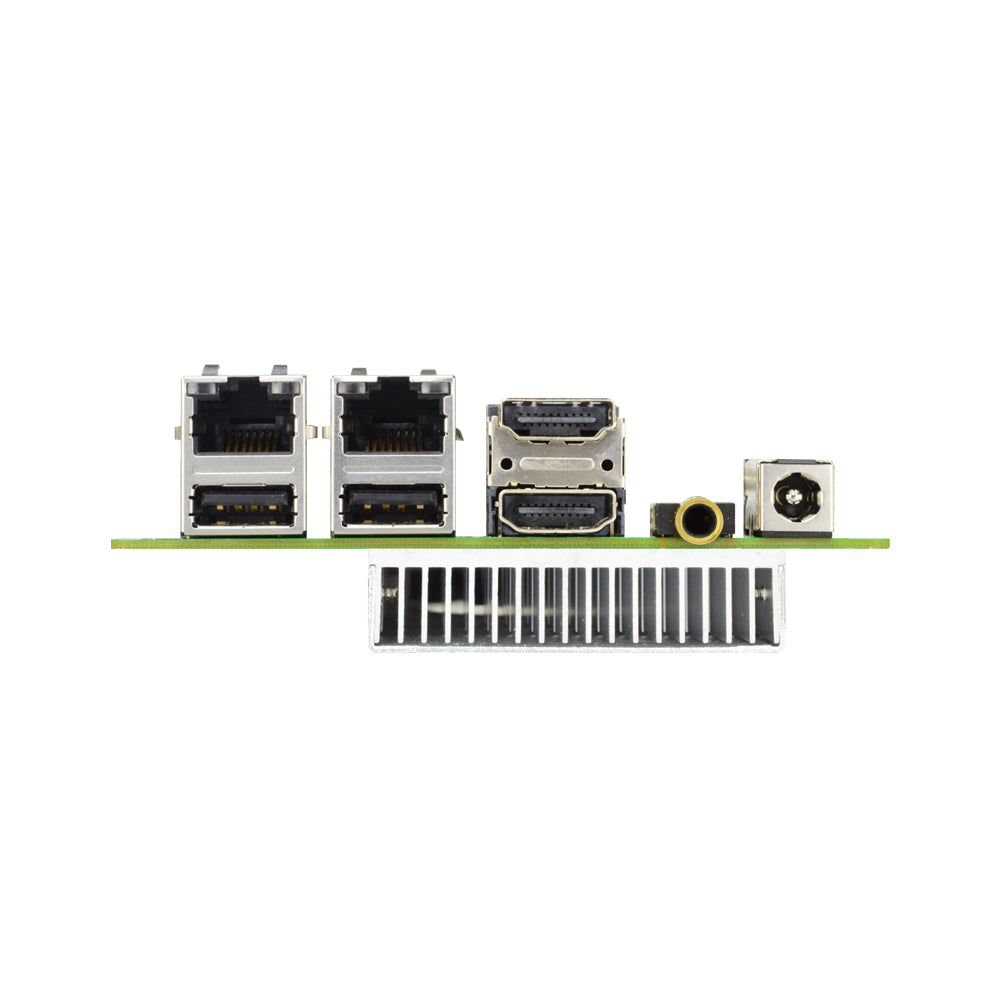

Rear Panel I/O	2 x RJ45 2 x USB 2.0 2 x HDMI 1 x Audio Out/SPDIF Out 1 x DC-IN
Onboard I/O Headers	1 x USB 2.0 1 x USB 3.0 1 x Serial
Special Features	Watchdog Timer
Form Factor	NUC 101mm x 101mm 3.98" x 3.98"
BIOS	AMI 64MB Flash ROM
Warranty	2-Year Manufacturer's Warranty
Compliance	CE, FCC, RoHS, REACH
Environmental	Operating Temperature: 0 ~ 60 C Storage Temperature: -20 ~ 85 C
Included in Box	Jetway NU93S-2930 NUC Motherboard 1 x Driver Disc 1 x Manual 1 x SATA Cable 1 x SATA Power Cable
