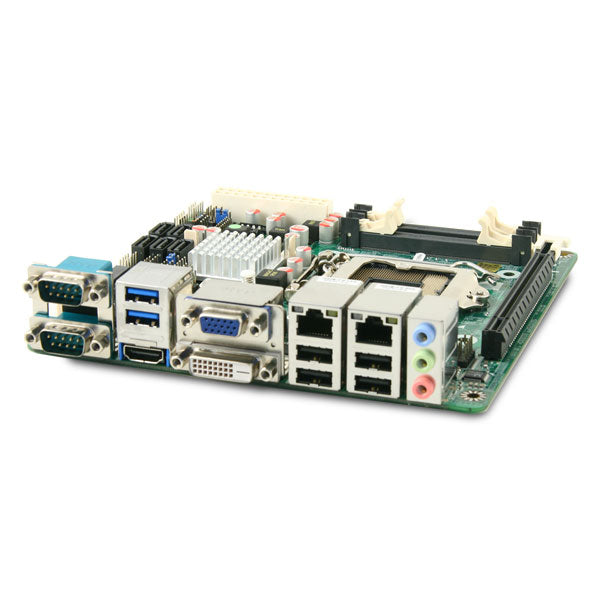

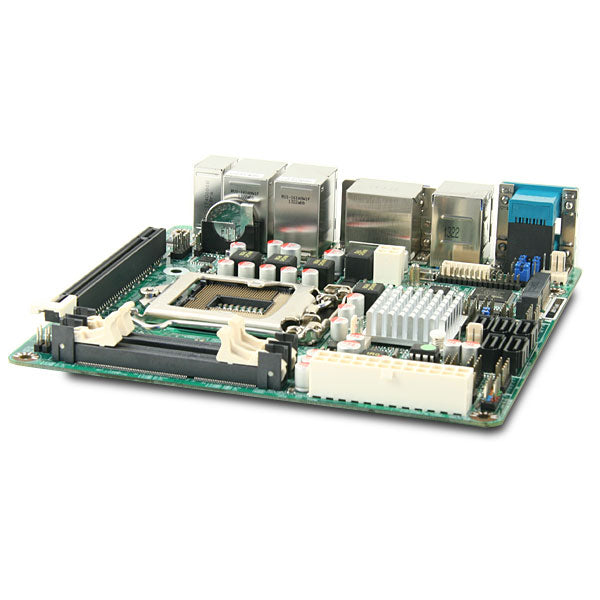

Jetway NF9J-Q87 Intel LGA 1150 Haswell Mini-ITX Motherboard
Model Number	NF9J-Q87
Part Number	JNF9J-Q87
CPU Support	Intel LGA 1150 (Haswell) 4th Generation Core i3/i5/i7 Processors
Chipset	Intel Q87 Express Chipset
Memory	2x 204-pin SODIMM Maximum 16GB capacity DDR3-1600MHz Non-ECC, un-buffered
Video	Supports Intel HD 4000/5000 (CPU-dependent) VGA, HDMI and DVI-D Supports three indepdendent displays
Audio	Realtek ALC662 5.1 Channel Audio
Storage	5x SATA II 6.0Gb/s RAID 0, 1, 5, 10, JBOD 1x mSATA (shared w/ Mini PCI-E)
Connectivity	Intel i211AT Gigabit LAN Intel I217LM Gigabit LAN w/ iAMT 9.0 support (CPU dependent)
Expansion Slots	1x PCI-E x16 (3.0) 1x Mini PCI-E (shared w/ mSATA)
Power Connector	24-pin ATX Power Connector 4-pin 12V ATX Power Connector

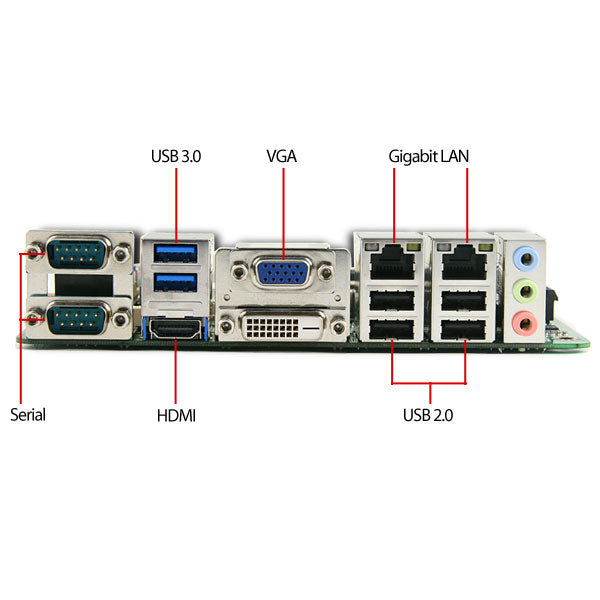

Rear Panel I/O	2x Serial COM 2x USB 3.0 1x HDMI 1x VGA 1x DVI-D 2x RJ45 4x USB 2.0 3x Audio I/O
Onboard I/O Headers	1x USB 3.0 (up to 2 ports) 2x USB 2.0 (up to 4 ports) 1x CPU fan 2x SYS fan 1x PS/2 1x 8-bit GPIO 1x CIR 1x Chassis Instrusion
Form Factor	Mini-ITX 170mm x 170mm (6.7" x 6.7")
Compliance	CE, FCC, RoHS, ErP
BIOS	AMI UEFI 64MB DIP Flash ROM
Warranty	2-year limited

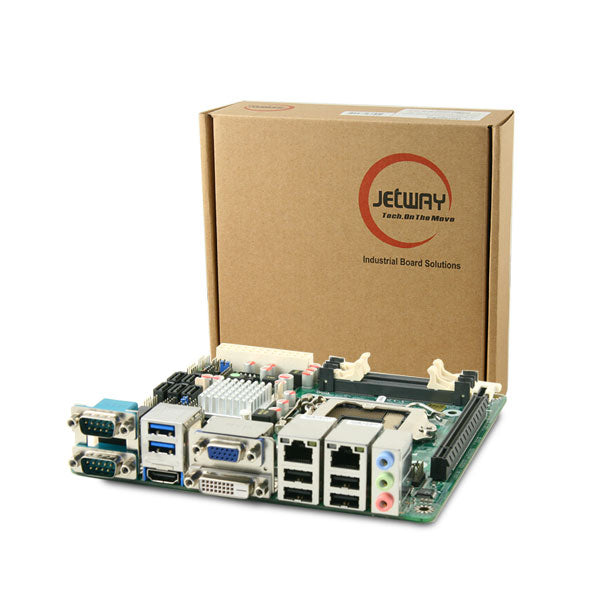

Included in Box	Jetway NF9J-Q87 LGA 1150 Mini-ITX Motherboard 2x SATA Cables 1x I/O Shield Documentation and driver & application disc
